首页      产品展示     4.3英寸-6.8英寸 TFT LCD     4.3英寸 LCD       RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A


  • RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A
  • RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A
  • RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A
  • RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A
RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485ARG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485ARG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485ARG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A

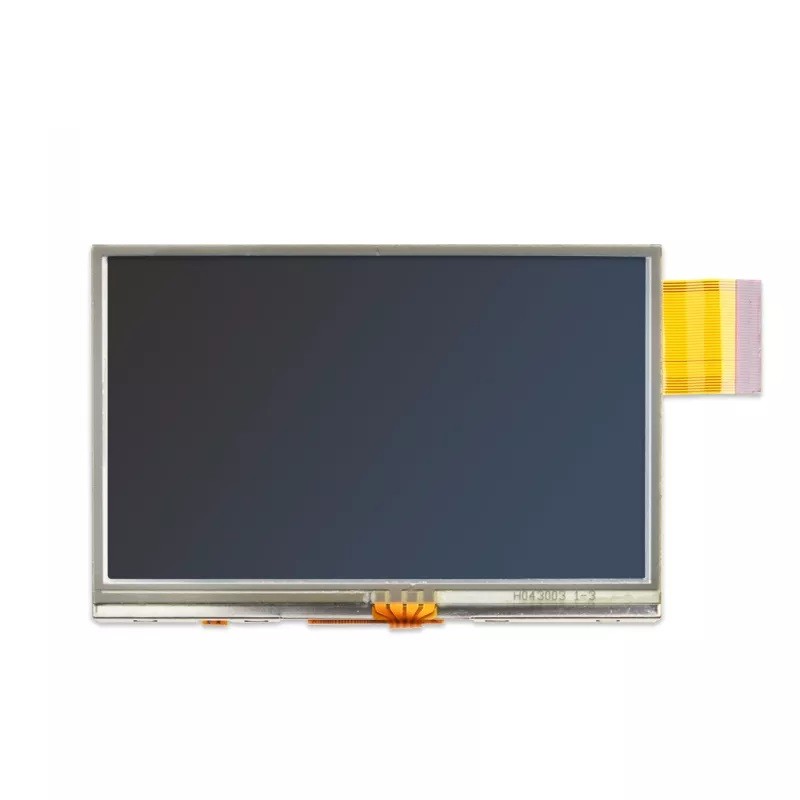

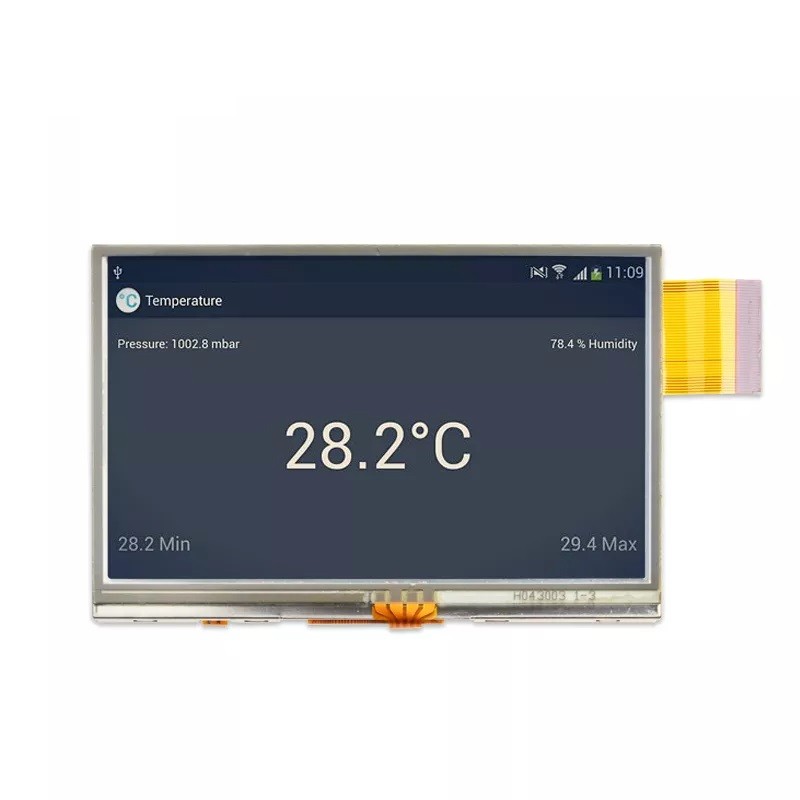

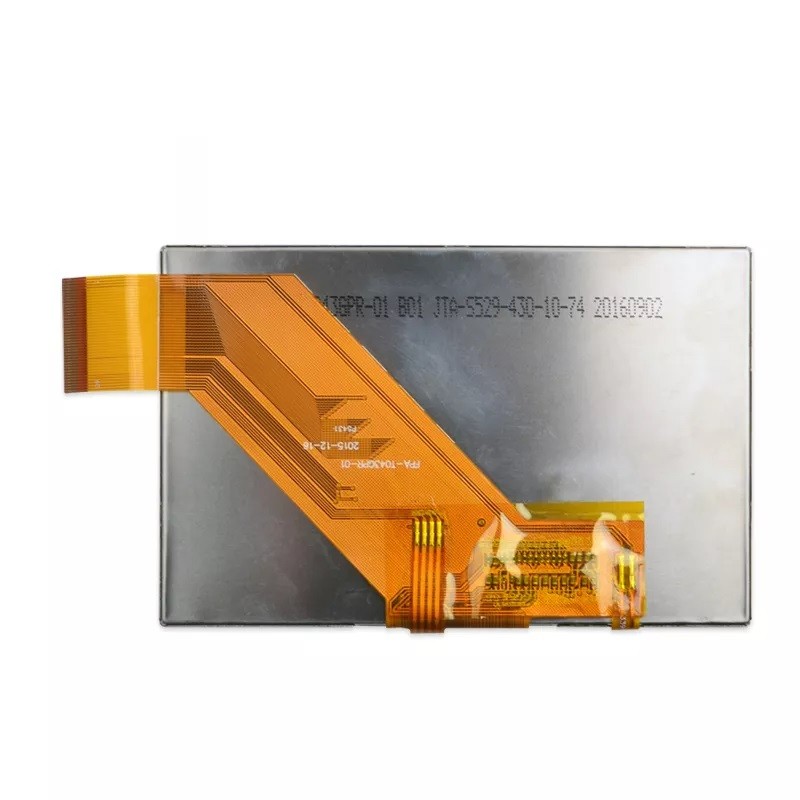

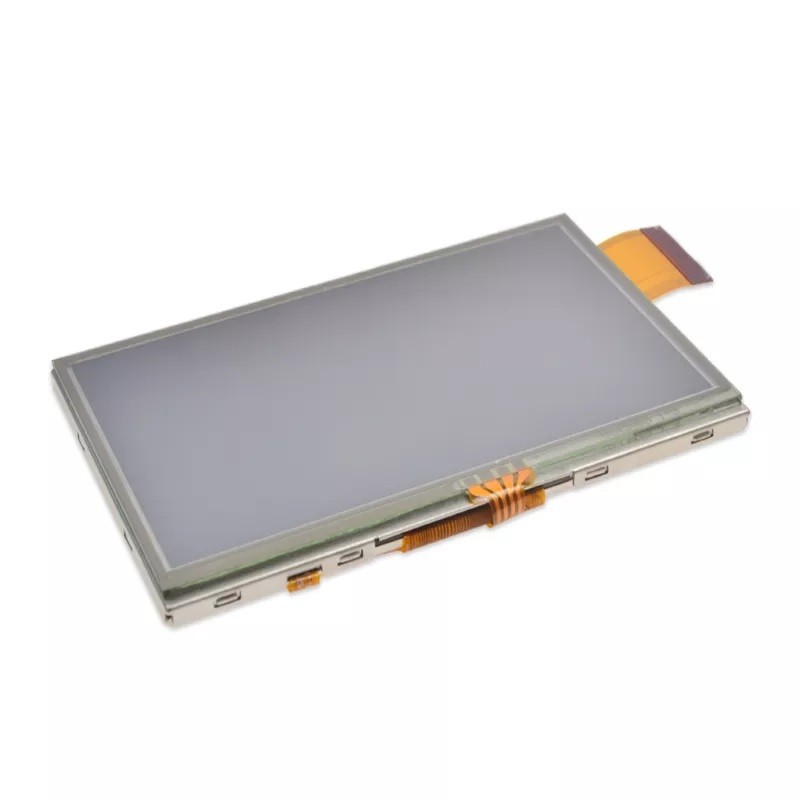

RG043QPI-01 4.3英寸480x272带电阻触摸屏ILI6485A

  • 产品项目 : RG043QPI-01
  • 类别: 4.3英寸 LCD
  • 分辨率: 480*(RGB)*272
  • 亮度: 420nits
  • LCM (W * H * D): 105.50*67.20*3.00mm
  • LCM驱动IC: ILI6485A
  • 询价   邮件
产品描述:
Size 4.3
Resolution 480*272
Pixel pitch 0.198(H)x0.198(V)
Display Mode TN/NW
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 300 cd/m2
LCM (W * H * D) 105.50*67.20*3.00 mm
Active Area (W * H ) 95.04*53.86 mm
With /Without TP Without TP
LED Numbers 7S-LED pcs
Operation temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Interface RGB888/40PIN
LCM Power Supply 3.3 V
LED  Power Supply 21.0 V
Color Depth 16.7M
LCM Driver IC ILI6485A
