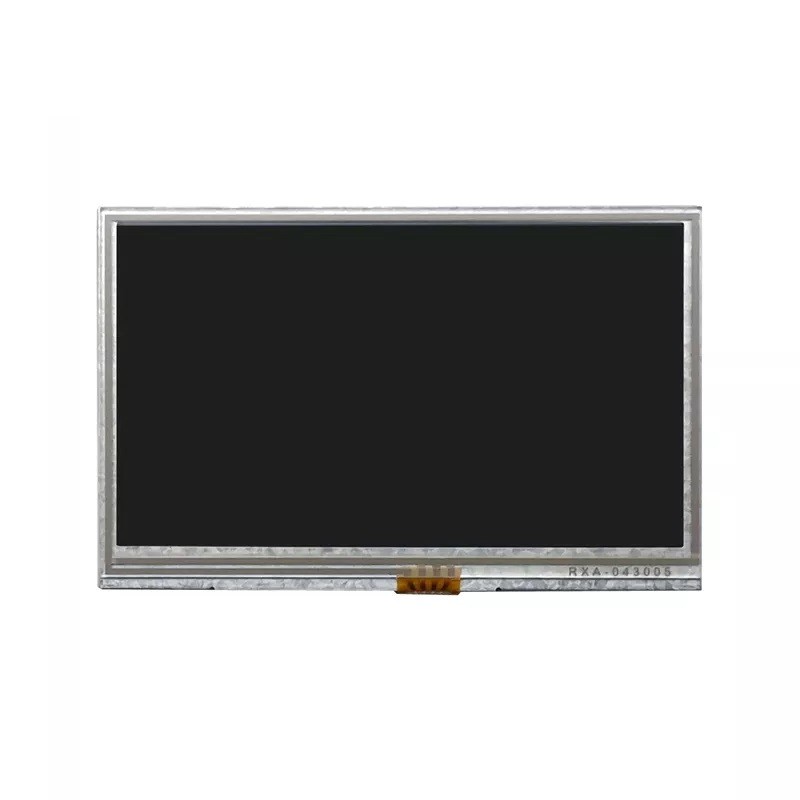

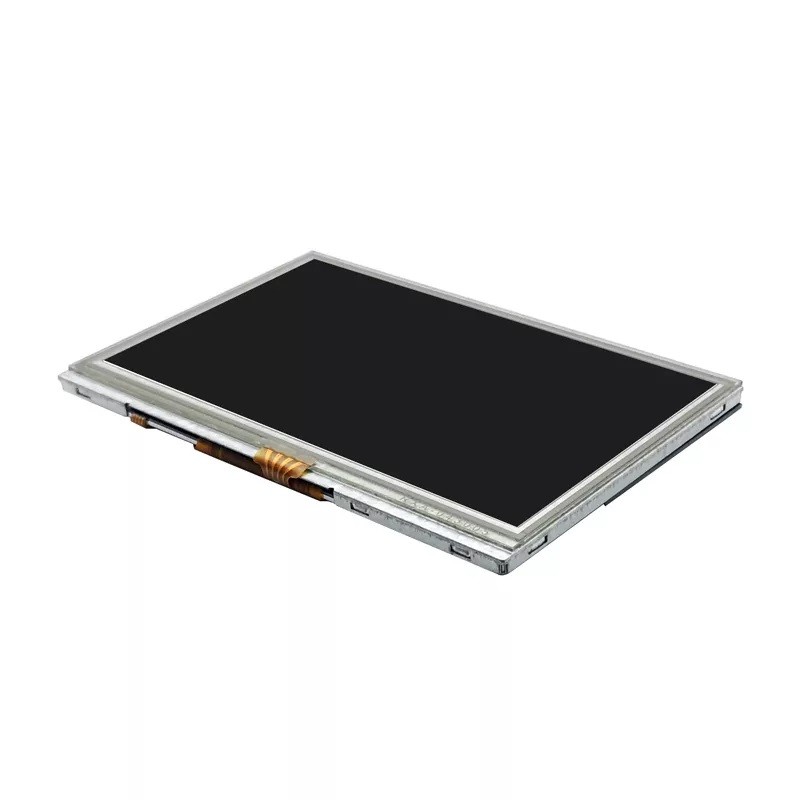

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 4.3英寸 LCD RG043QPS-01P-B 4.3英寸480x272带电阻触摸屏和驱动板
Feature | Specification | Unit |
---|---|---|
Brand | Ronen | - |
Size | 4.3 | inch |
Resolution | 480*272 | dots |
Pixel pitch | 0.198(H)x0.198(V) | mm |
Display Mode | TN | - |
Viewing Direction | 12 | o'clock |
Gray Scale Inversion Direction | 6 | o'clock |
Luminance | 420 | cd/m2 |
LCM (W * H * D) | 105.50*67.20*5.20 | mm |
Active Area (W * H ) | 95.04*53.86 | mm |
With /Without TP | With RTP | - |
LED Numbers | 5S2P-LED | pcs |
Operation temperature | -20~+70 | ℃ |
Storage temperature | -30~+80 | ℃ |
Interface | 16BIT MCU | - |
LCM Power Supply | 3.3 | V |
LED Power Supply | 15.0 | V |
Color Depth | 65K | - |

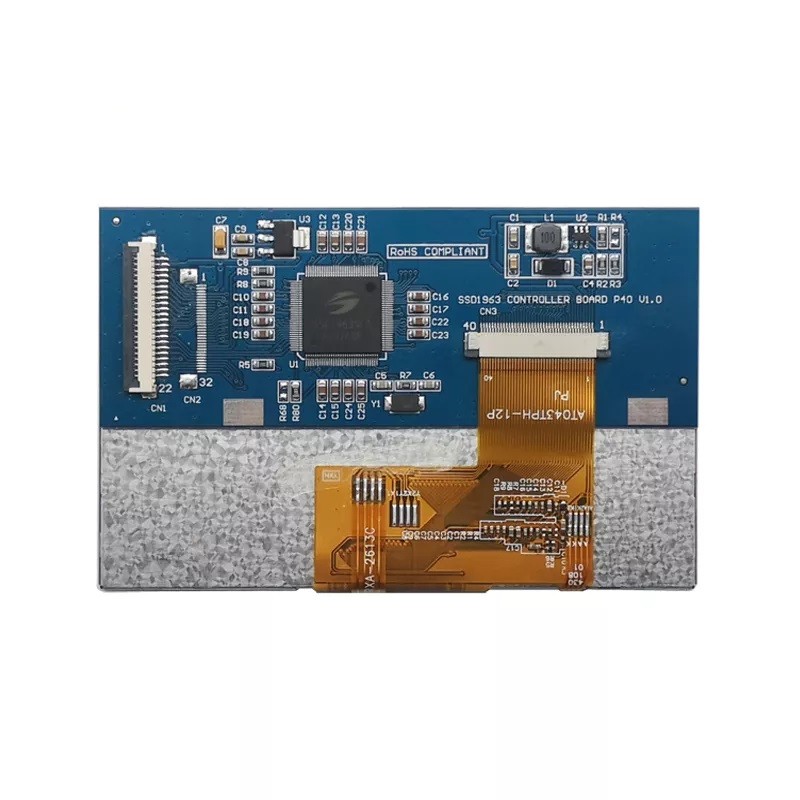

LCM Driver IC | SSD1963 | - |
