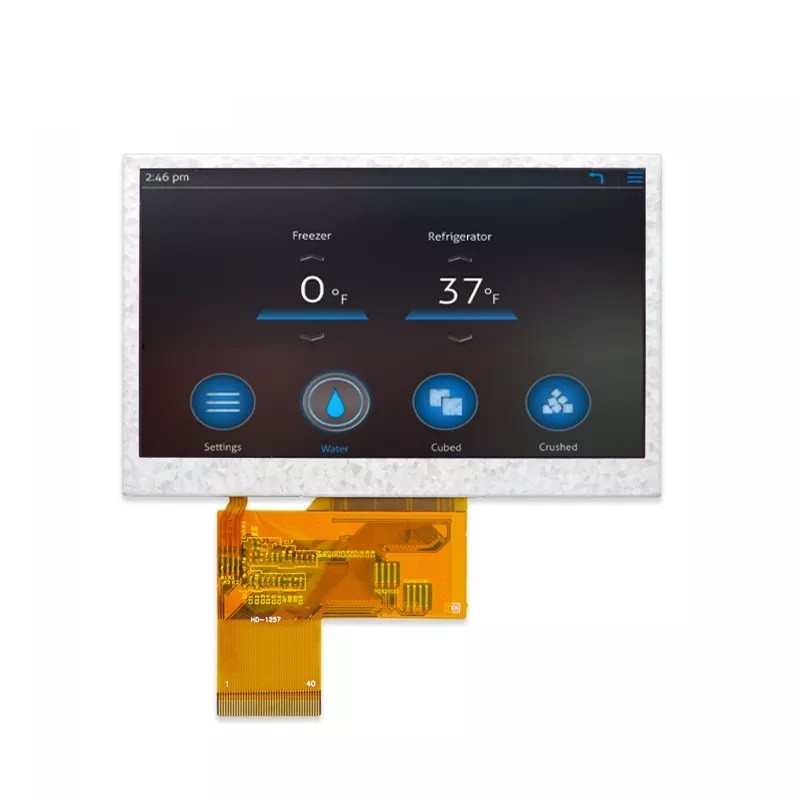

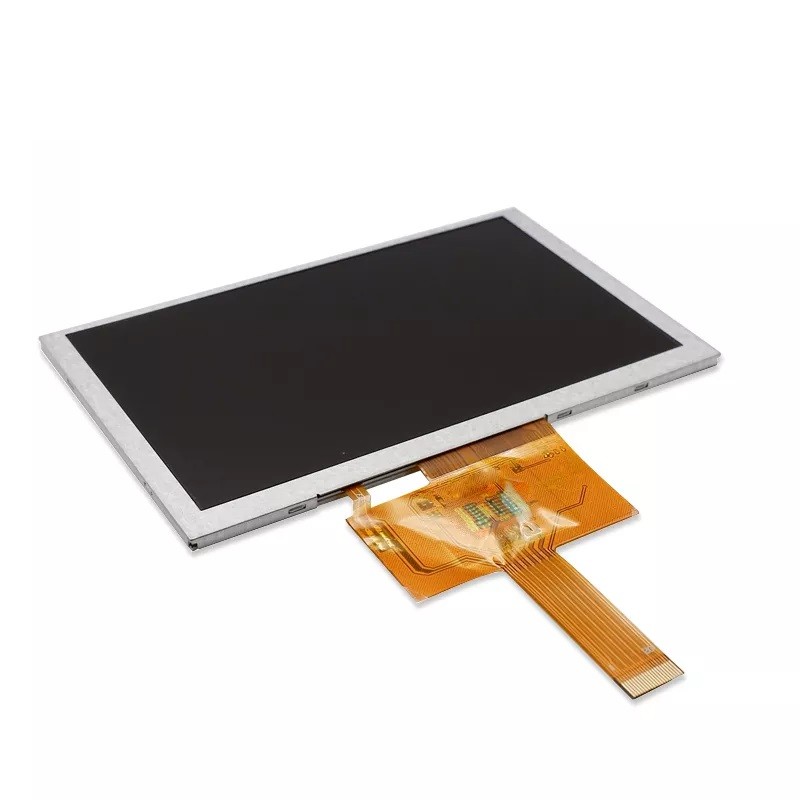

RG050HWSA-22 5英寸 800x480 TFT LCD显示屏ST7262

  • 产品项目 : RG050HWSA-22
  • 类别: 5英寸 LCD
  • 分辨率: 800*(RGB)*480
  • 亮度: 1200nits
  • LCM (W * H * D): 120.70*75.80*2.80mm
  • LCM驱动IC: ST7262
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 5.0 inch
Resolution 800*480 dots
Pixel pitch 0.135(H) x 0.135V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 1200 cd/m2

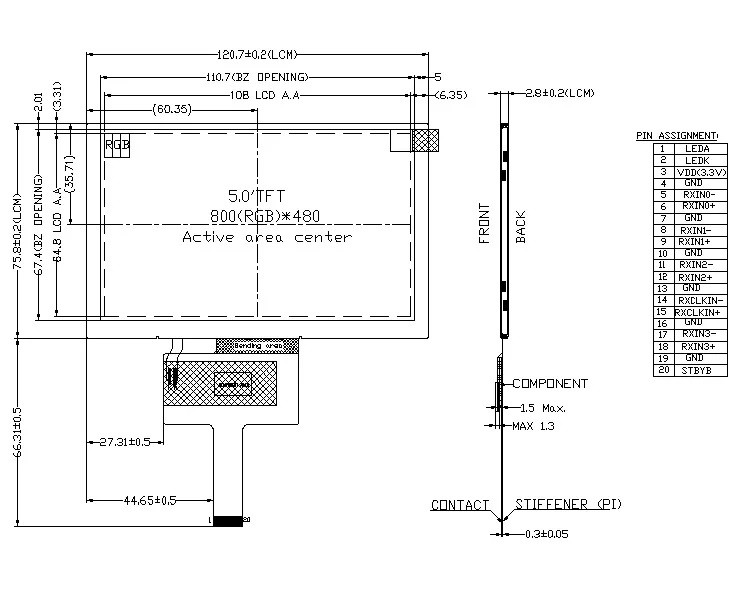

LCM (W * H * D) 120.70*75.80*2.80 mm
Active Area (W * H ) 108.00*64.80 mm
With /Without TP Without TP -
LED Numbers 10S2P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface LVDS/20PIN -
LCM Power Supply 3.3 V
LED  Power Supply 30.0 V
Color Depth 16.7M -
LCM Driver IC ST7262 -
