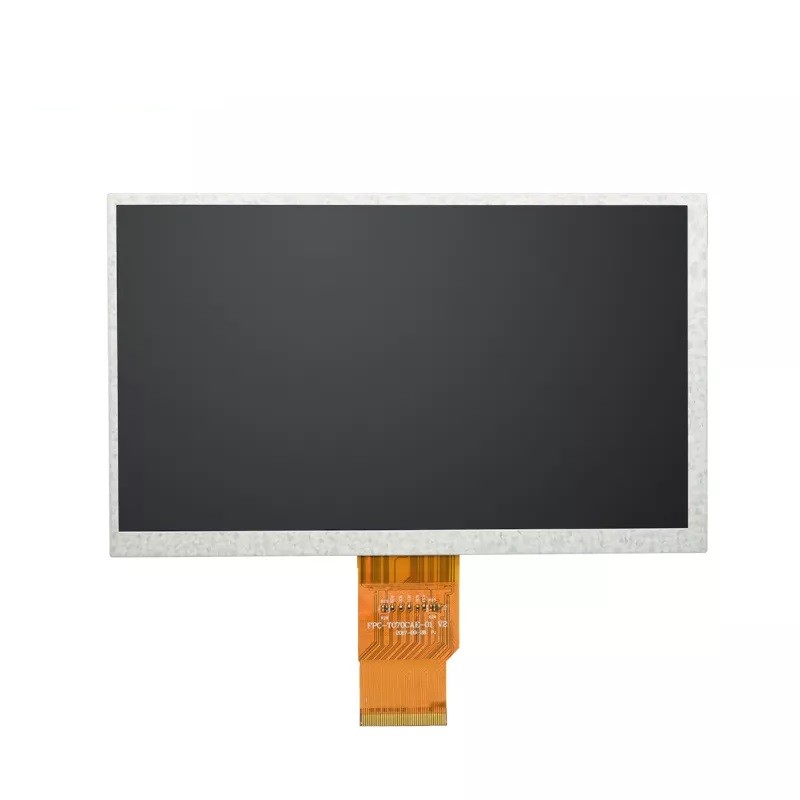

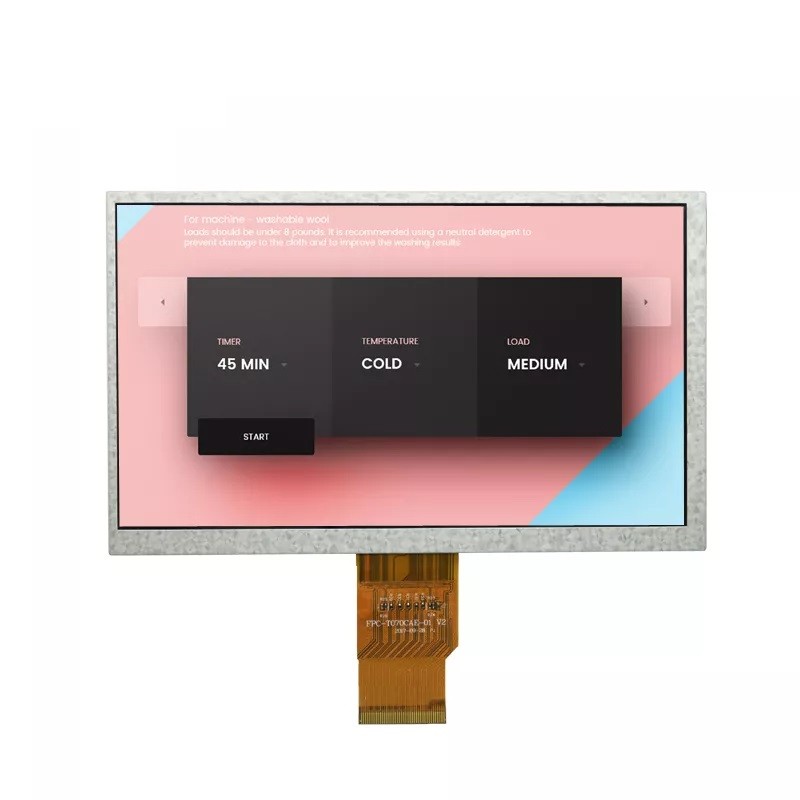

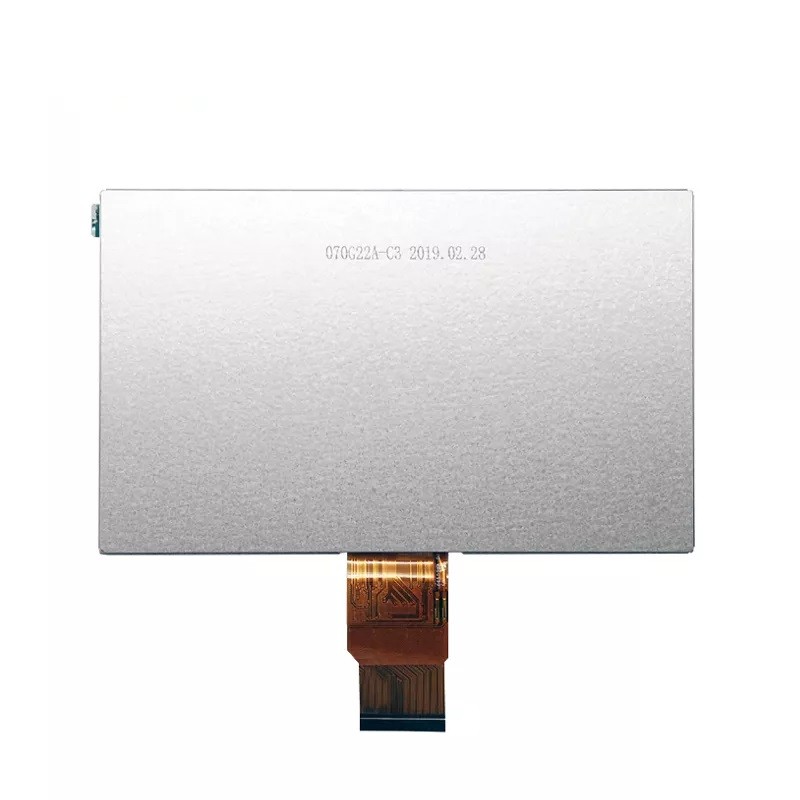

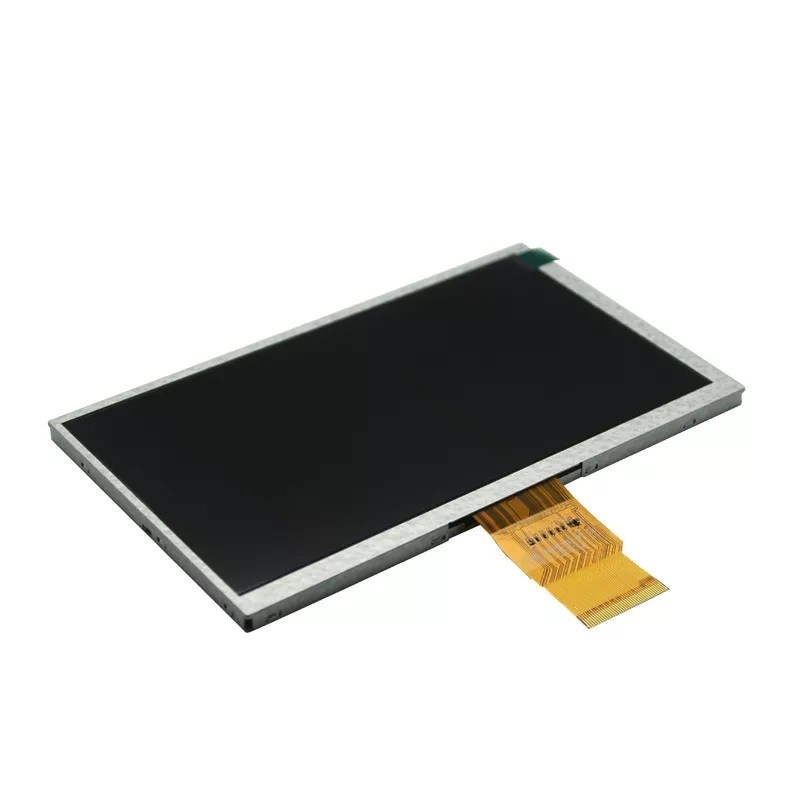

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070BAHA-07 7英寸1024x600全视角IPS LCD显示屏
Feature | Specification | Unit |
---|---|---|
Brand | Ronen | - |
Size | 7.0 | inch |
Resolution | 1024 x 600 | dots |
Pixel pitch | 0.1509(H)×0.1432(V) | mm |
Display Mode | IPS/NB | - |
Viewing Direction | ALL | o'clock |
Gray Scale Inversion Direction | ALL | o'clock |
Luminance | 250 | cd/m2 |
LCM (W * H * D) | 164.90*100.00*2.92 | mm |
Active Area (W * H ) | 154.21*85.92 | mm |
With /Without TP | Without TP | - |
LED Numbers | 3S7P-LED | pcs |
Operation temperature | -20~+70 | ℃ |
Storage temperature | -30~+80 | ℃ |
Interface | 24BIT RGB | - |
LCM Power Supply | 3.3 | V |
LED Power Supply | 9.0 | V |
Color Depth | 16.7M | - |
LCM Driver IC | HX8282+HX8696 | - |
