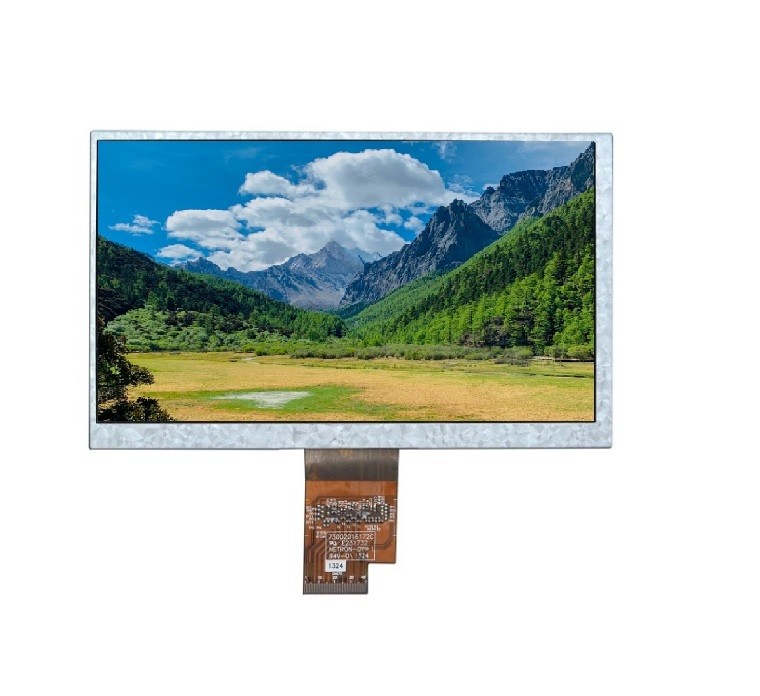

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD Rg070bqt-01 7英寸TFT LCD 1024x600 300nit 4
Item | Contents |
LCD Type | TFT |
Display Color | 16.7M |
View Direction | 12 O'Clock |
Gray Scale Inversion Direction | 6 O'Clock |
Operating Temperature | -20+70 °C |
Store Temperature | -30~+80 °C |
Module Size | 165.75(W)x105.39(H)x7.4(D)mm |
Active Area(W×H) | 153.6×90mm |
Number of Dots | 1024×600 dots |
Dot pitch | 0.05(W)x0.15(H)mm |
Power Supply Voltage | 3.3V |
Outline Dimensions | Refer to outline drawing |
Backlight | 3×8-LEDs(white) |
Controller | NT51008CH +NT52002H |
Interface | LVDS |
