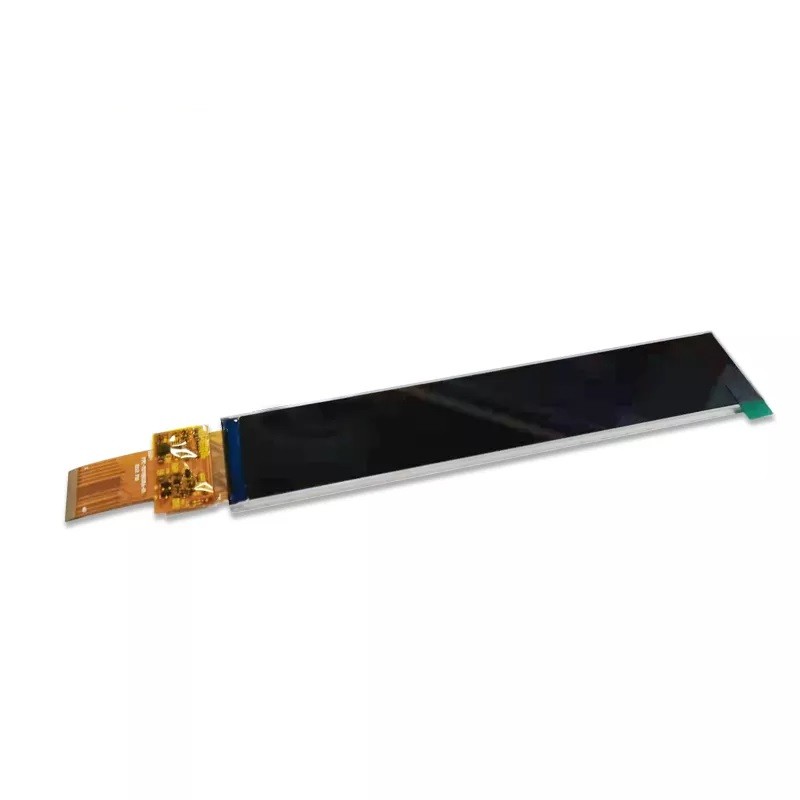

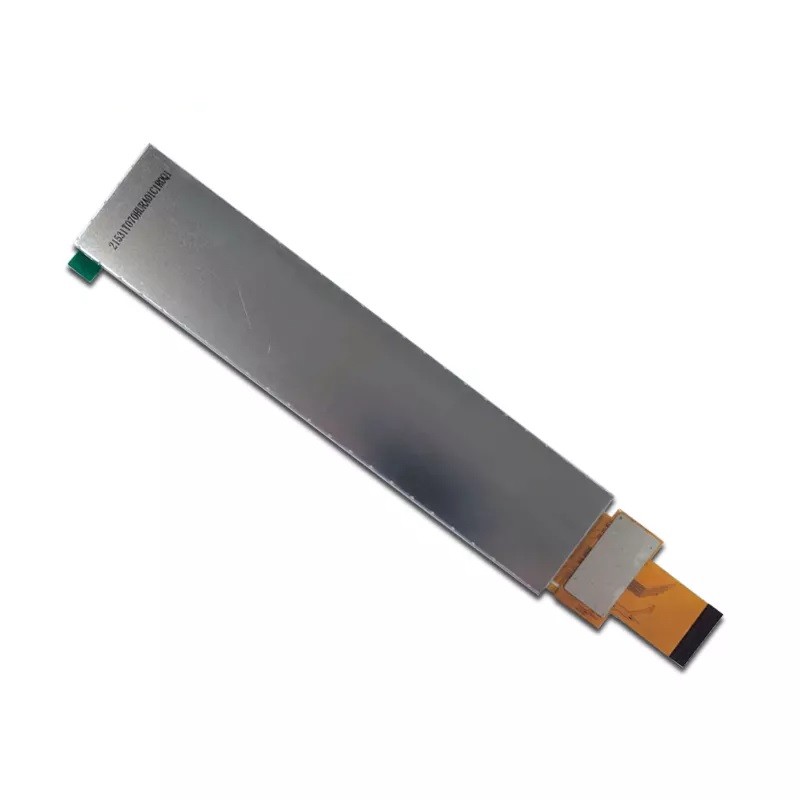

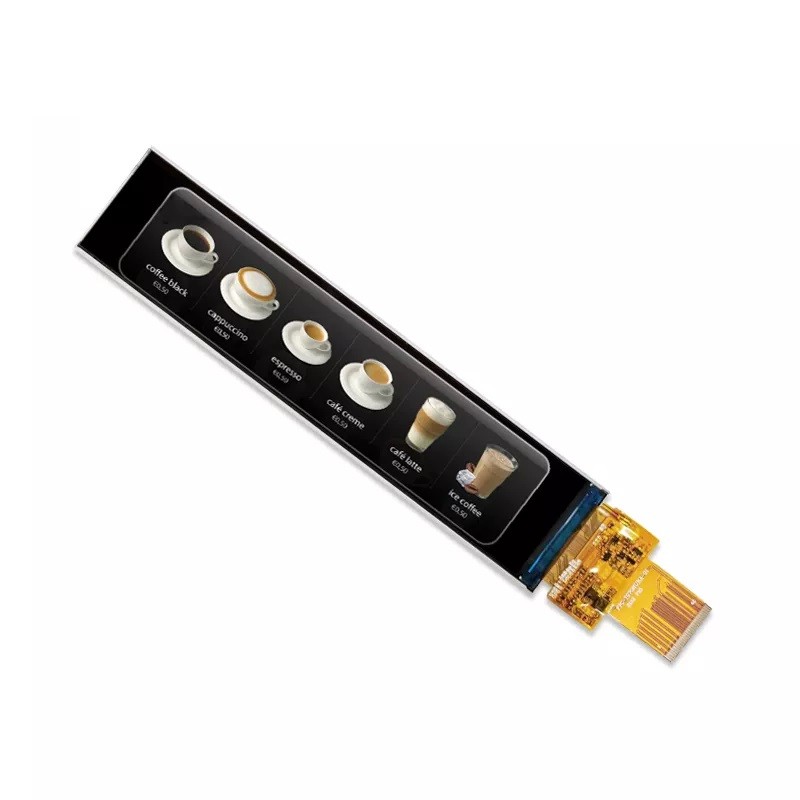

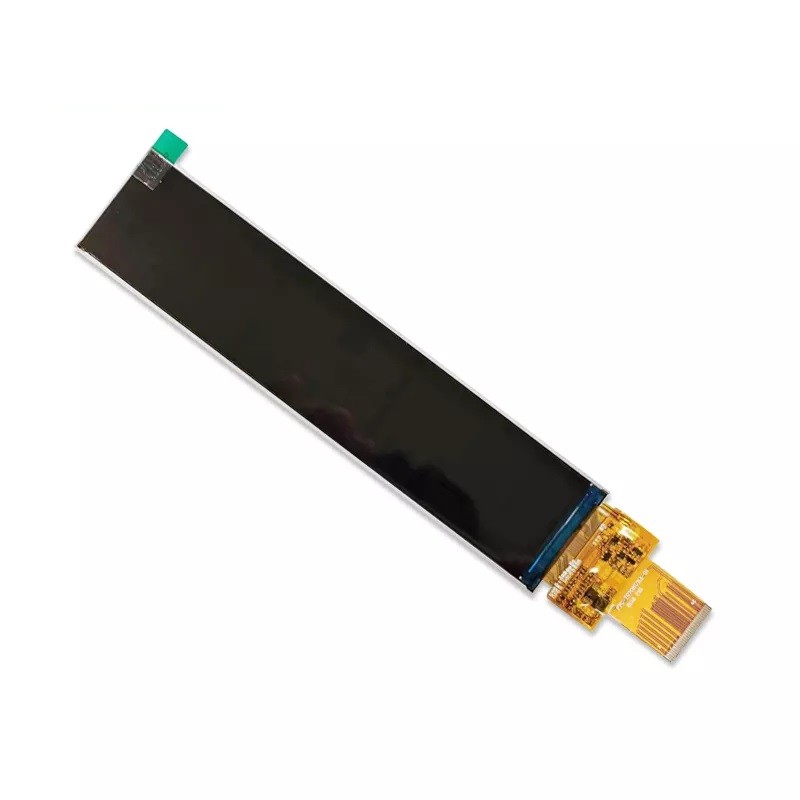

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070HURA-01 7英寸280x1424带MIPI接口TFT LCD
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 7.0 | inch |
| Resolution | 280x1424 | dots |
| Pixel pitch | 0.12(H)×0.12(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 300 | cd/m2 |

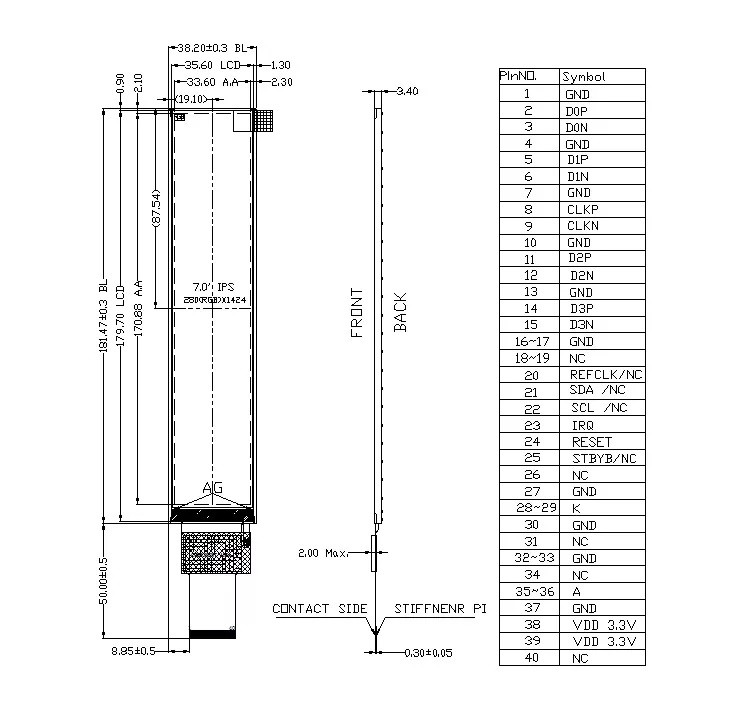

| LCM (W * H * D) | 38.20*181.47*3.40 | mm |
| Active Area (W * H ) | 33.60x170.88 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 8S-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MIPI | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 24.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | OTA7290B | - |
