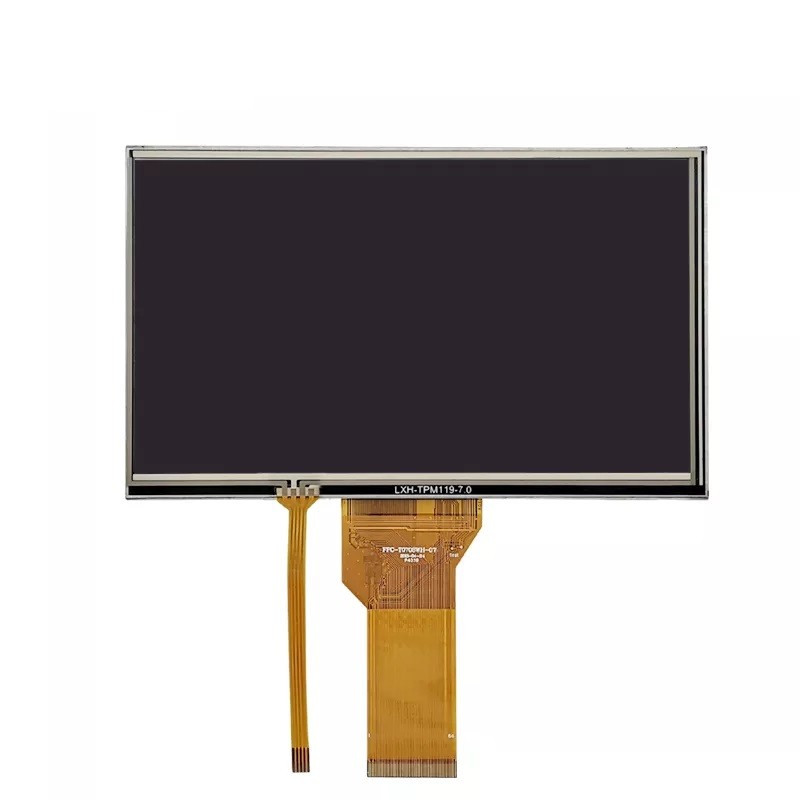

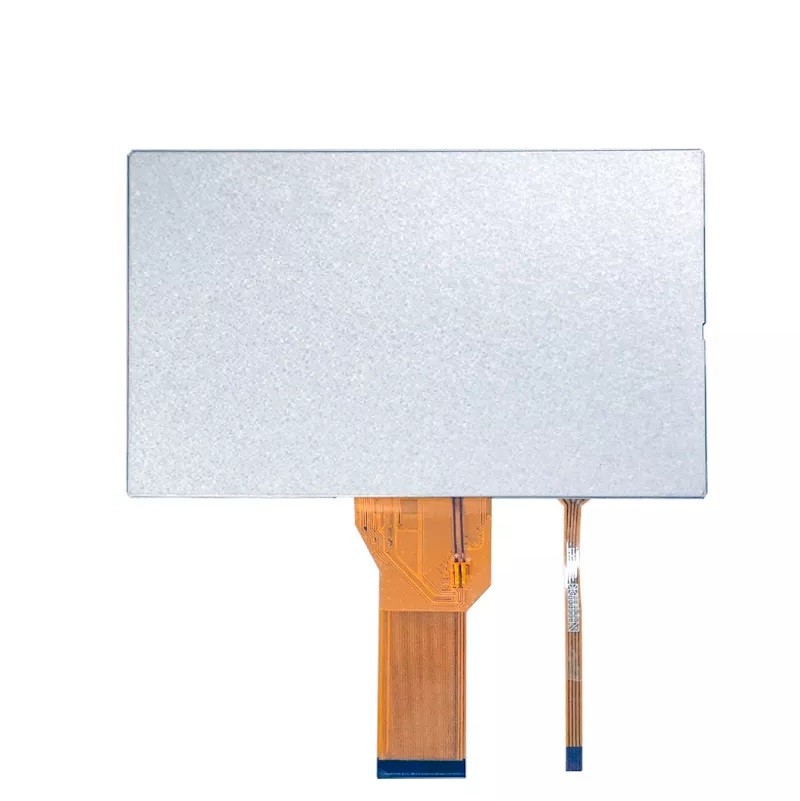

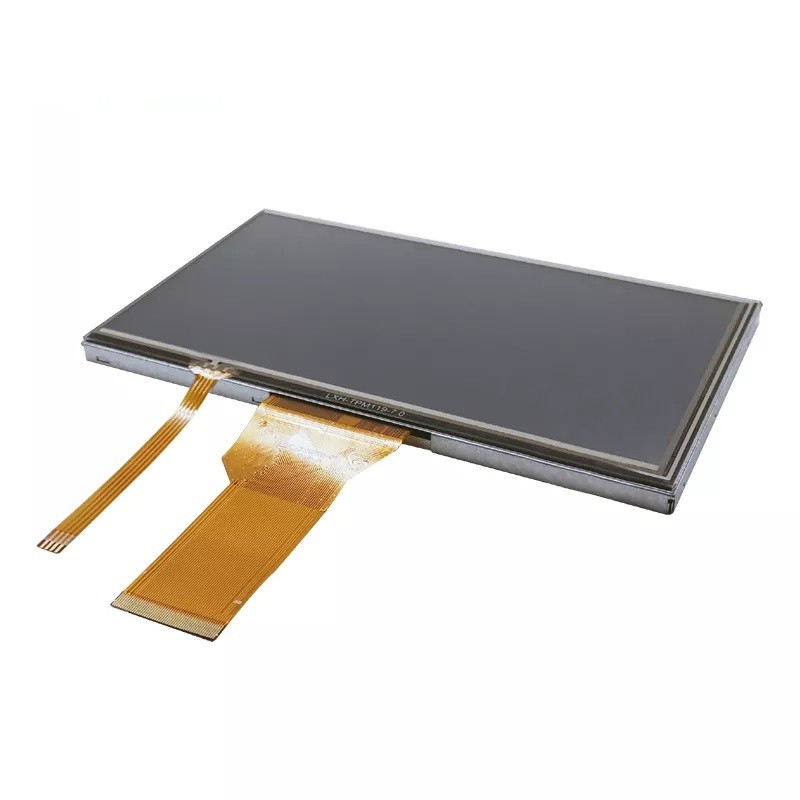

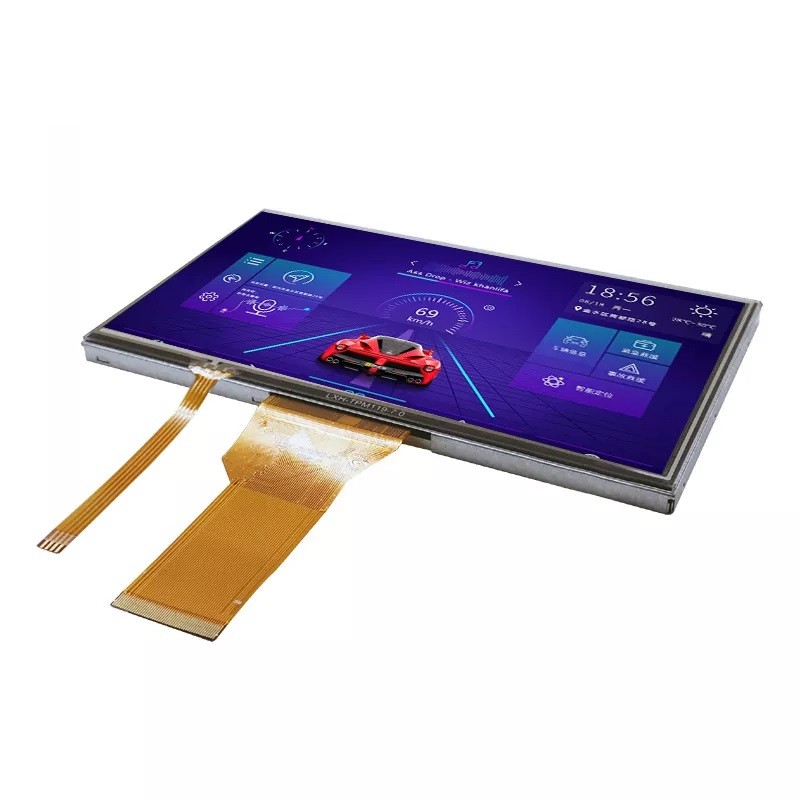

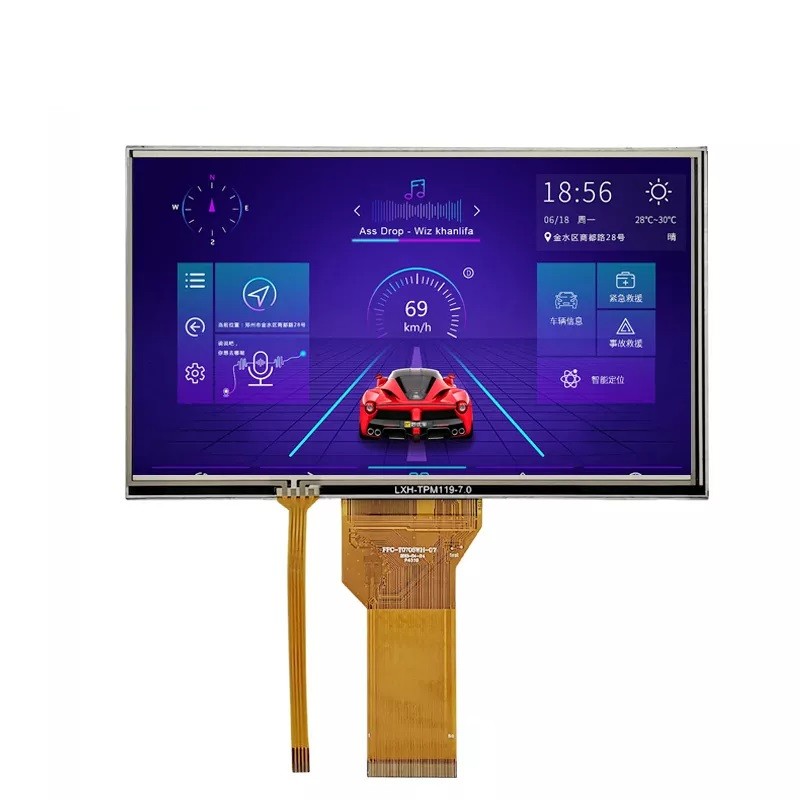

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070QWH-26P 7英寸800x480宽温带电阻LCD显示屏
Feature | Specification | Unit |
---|---|---|
Brand | Ronen | - |
Size | 7.0 | inch |
Resolution | 800*480 | dots |
Pixel pitch | 0.1926(H)*0.1790(V) | mm |
Display Mode | TN/NW | - |
Viewing Direction | 12 | o'clock |
Gray Scale Inversion Direction | 6 | o'clock |
Luminance | 360 | cd/m2 |
LCM (W * H * D) | 165.00*100.00*6.85 | mm |
Active Area (W * H ) | 154.08*85.92 | mm |
With /Without TP | With RTP | - |
LED Numbers | 3S9P-LED | pcs |
Operation temperature | -30~+85 | ℃ |
Storage temperature | -30~+85 | ℃ |
Interface | RGB888/50PIN | - |
LCM Power Supply | 3.3 | V |
LED Power Supply | 9.0 | V |
Color Depth | 16.7M | - |
LCM Driver IC | HX8664B+HX8264E | - |
