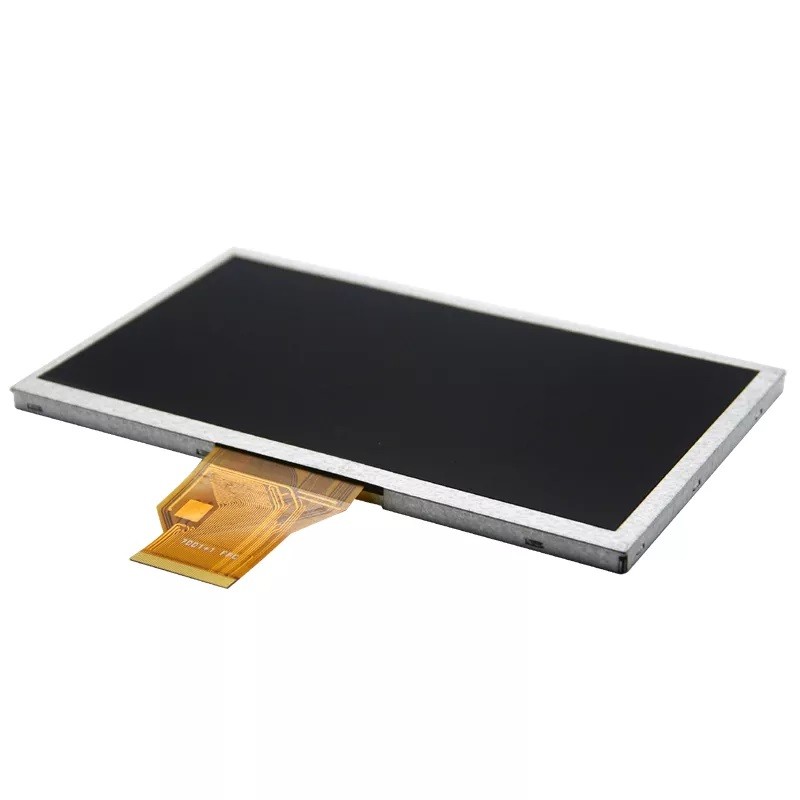

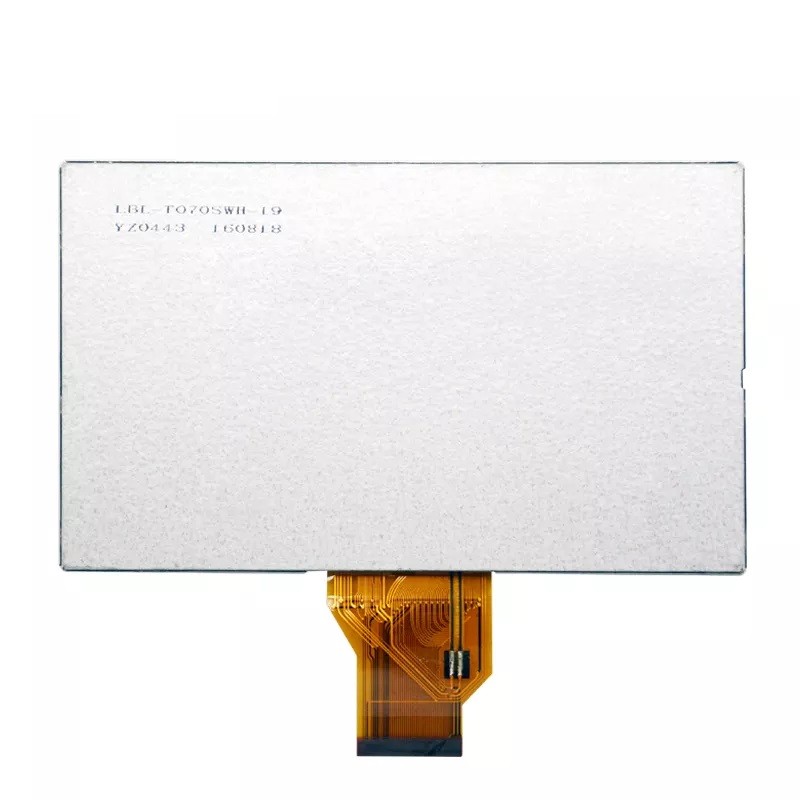

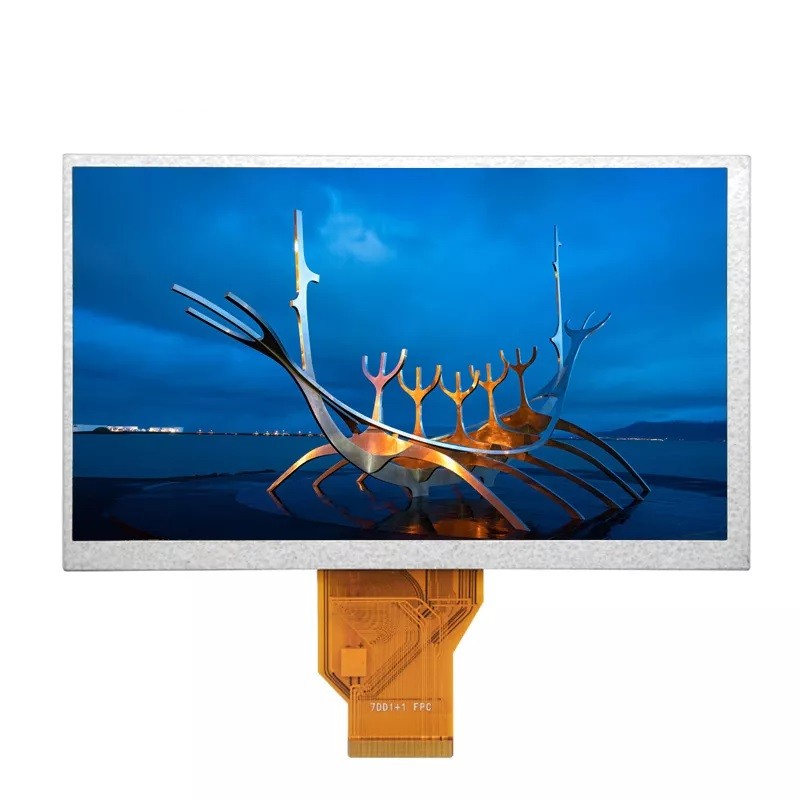

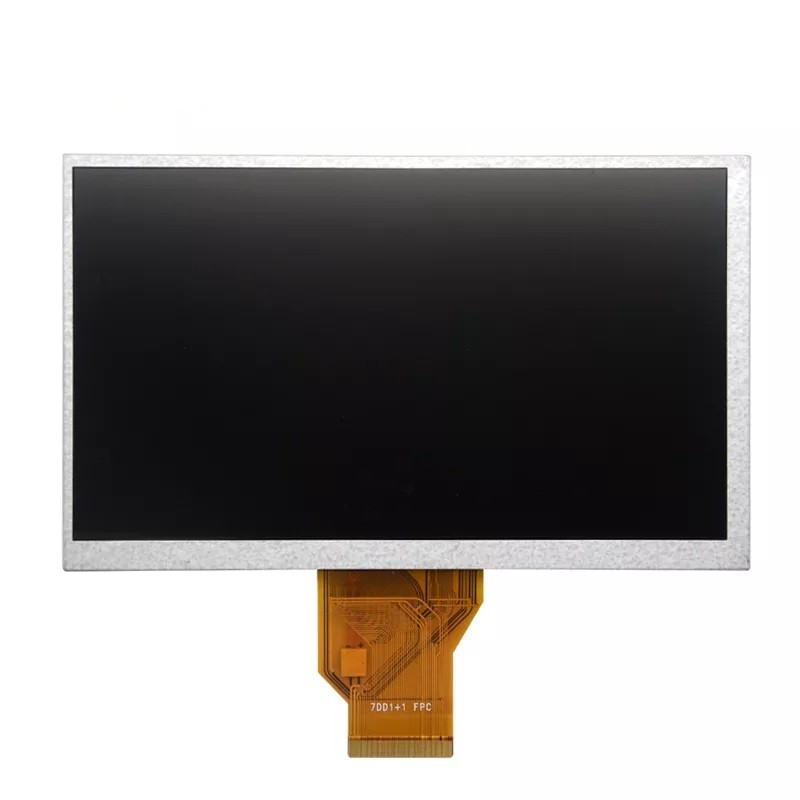

RG070SWH-03 7英寸800x480高亮TFT LCD模块

  • 产品项目 : RG070SWH-03
  • 类别: 7英寸 LCD
  • 分辨率: 800*(RGB)*480
  • 亮度: 500nits
  • LCM (W * H * D): 165.00*100.00*5.70mm
  • LCM驱动IC: EK9713CA+EK73002ACGB
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 7.0 inch
Resolution 800*480 dots
Pixel pitch 0.1926(W)x 0.1790(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 500 cd/m2
LCM (W * H * D) 165.00*100.00*5.70 mm
Active Area (W * H ) 154.08*85.92 mm
With /Without TP Without TP -
LED Numbers 3S9P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB888/50PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9 V
Color Depth 16.7M -
LCM Driver IC EK9713CA+EK73002ACGB -
