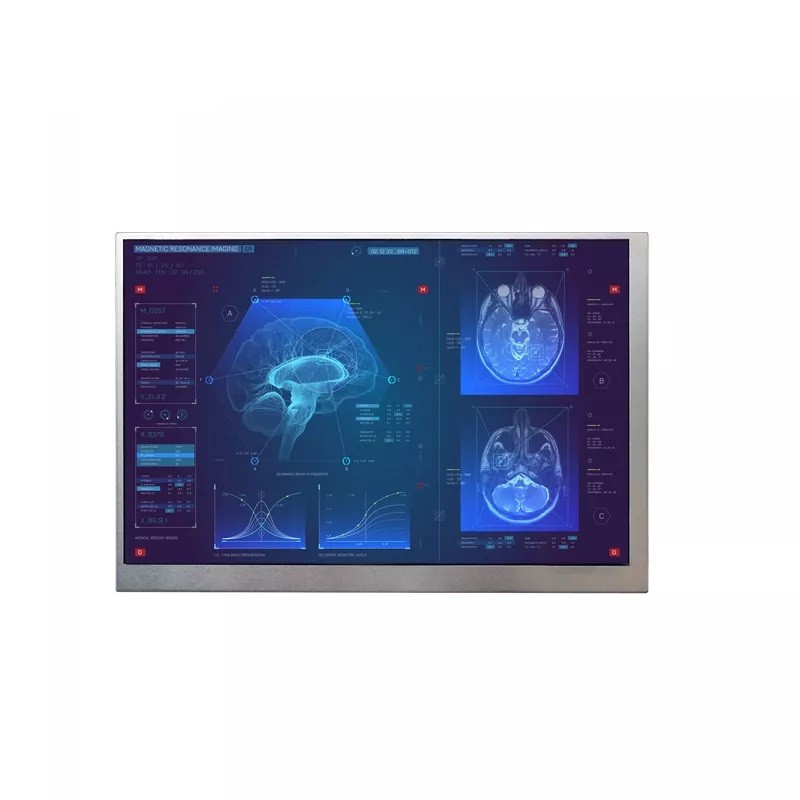

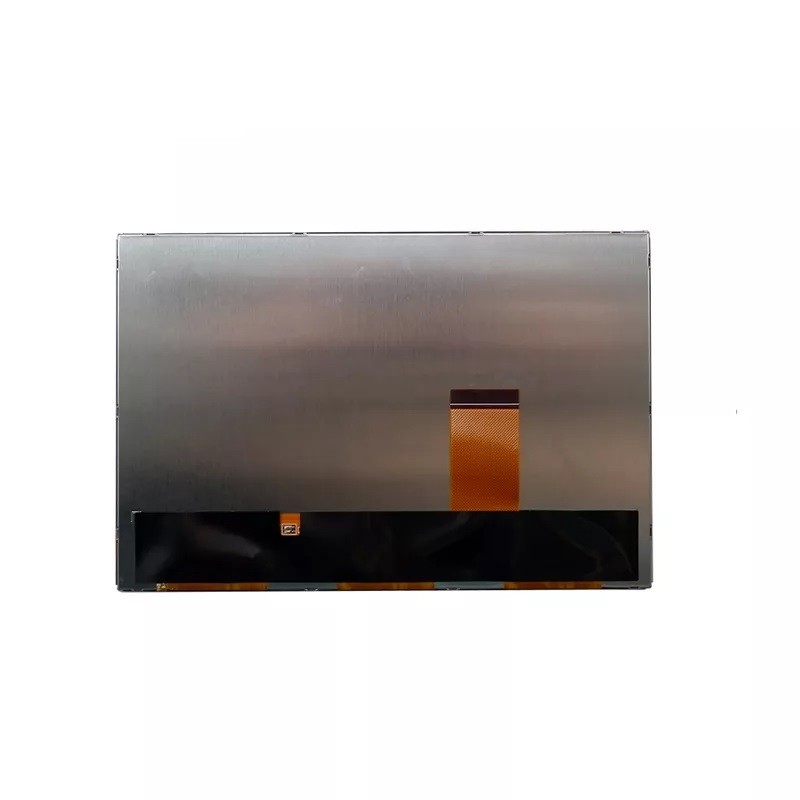

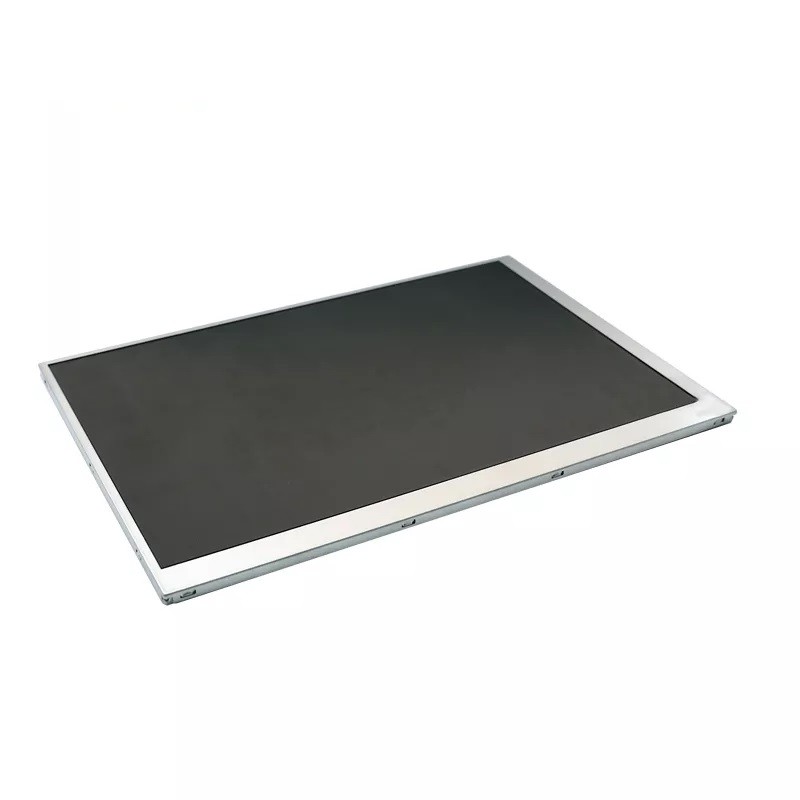

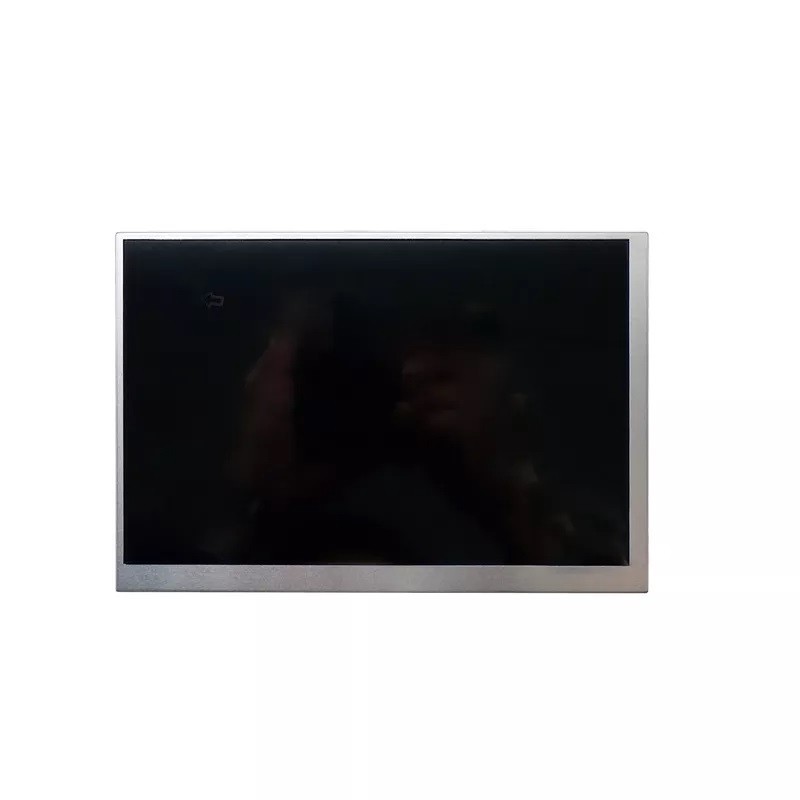

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070TIS-01 7英寸1280x800全视角TFT LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 7.0 | inch |
| Resolution | 1280*800 | dots |
| Pixel pitch | 0.117(W)x 0.117(H) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 400 | cd/m2 |
| LCM (W * H * D) | 161.00*107.00*3.35 | mm |
| Active Area (W * H ) | 149.76*93.60 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S7P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | LVDS | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ST5821C+ST5084C | - |
