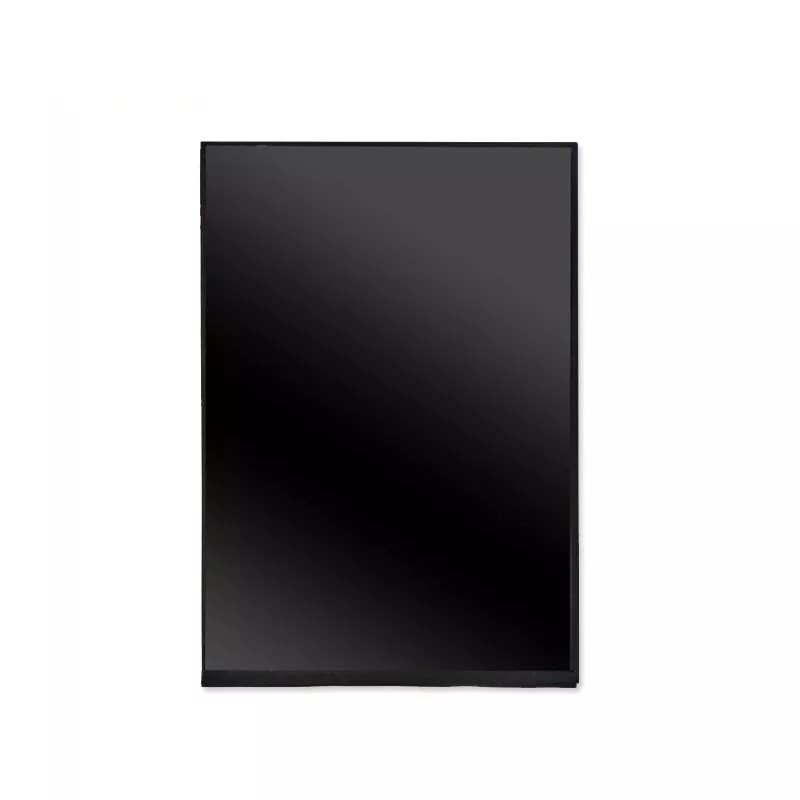

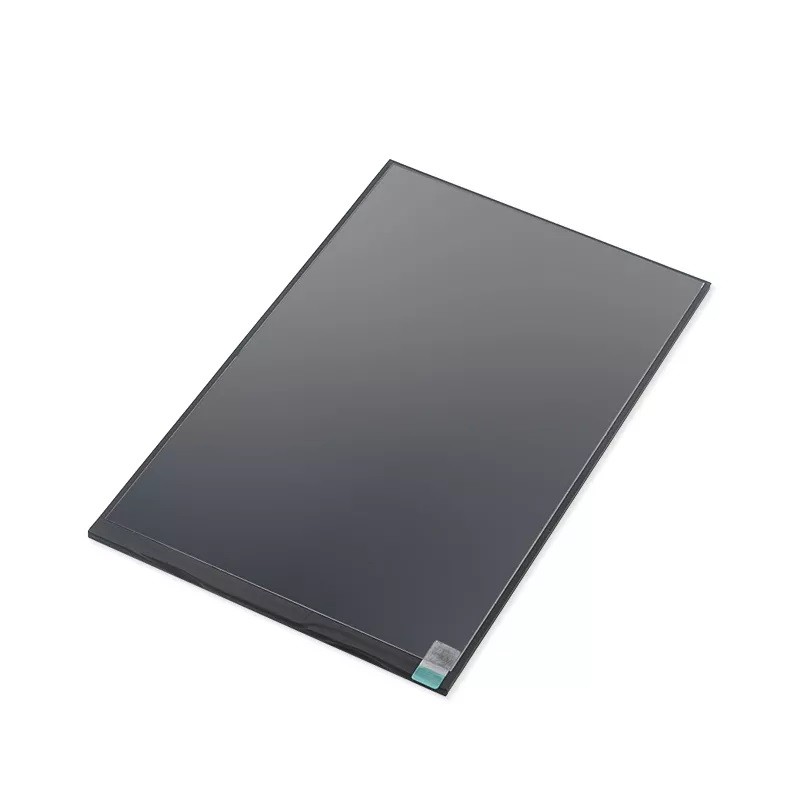

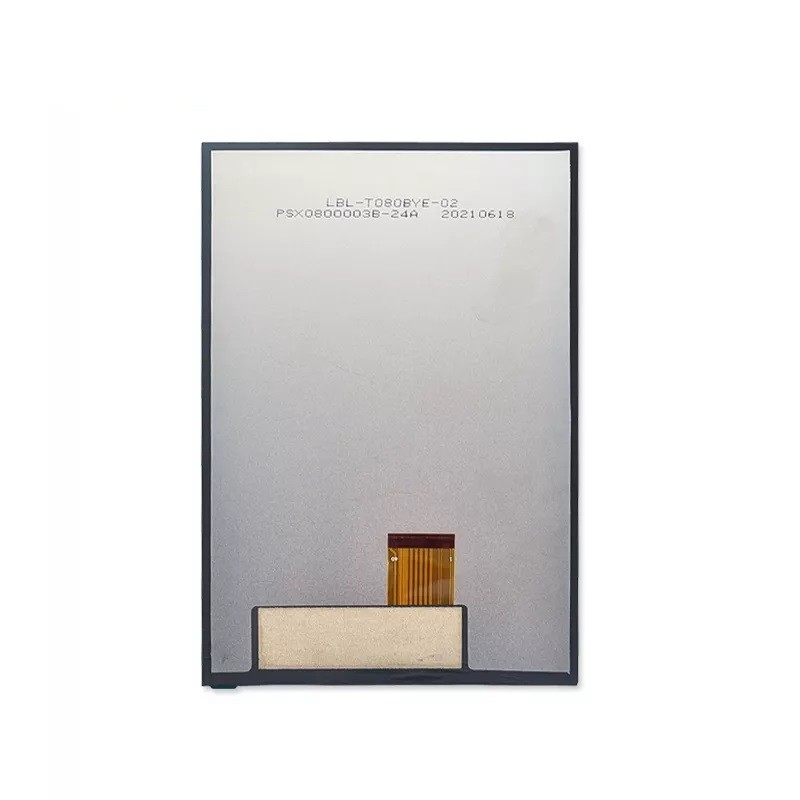

首页 产品展示 7英寸-10.4英寸 TFT LCD 8英寸 LCD RG080BYE-02 8英寸800x1280 TFT LCD模块IC JD93
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 8.0 | inch |
| Resolution | 800*1280 | dots |
| Pixel pitch | 0.1345(W)x 0.1345(H) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 250 | cd/m2 |

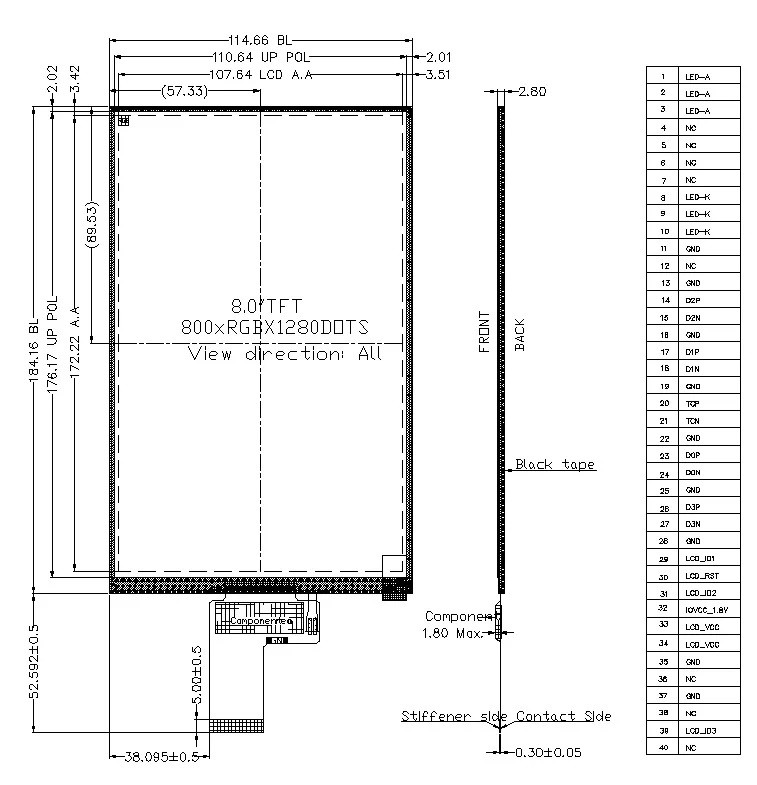

| LCM (W * H * D) | 114.66X184.16X2.80 | mm |
| Active Area (W * H ) | 107.64X172.22 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 4S6P-LED | pcs |
| Operation temperature | -20~+60 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | LVDS | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 12.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | JD9366AB | - |
