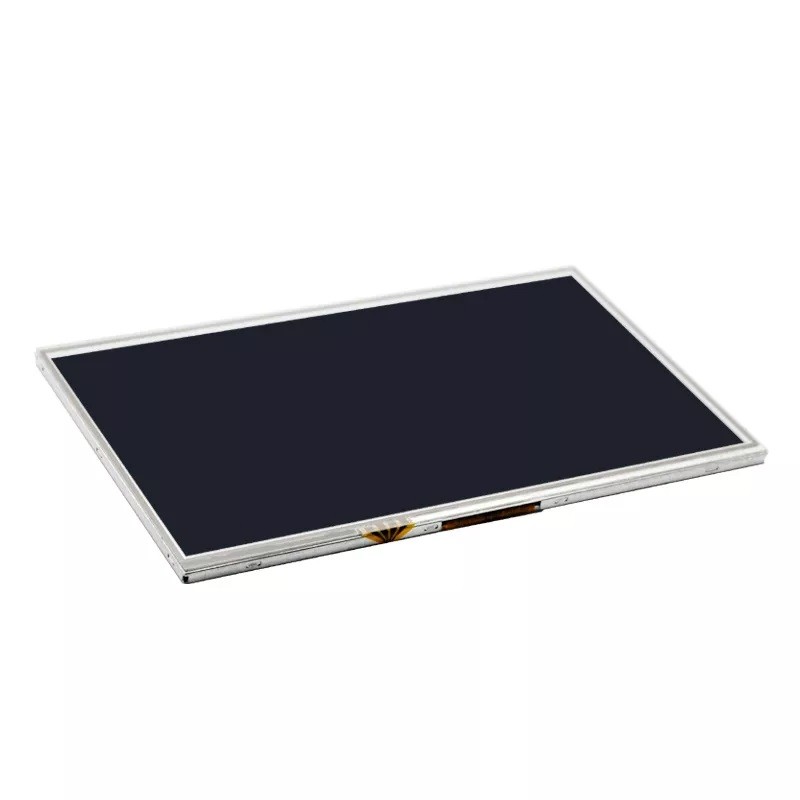

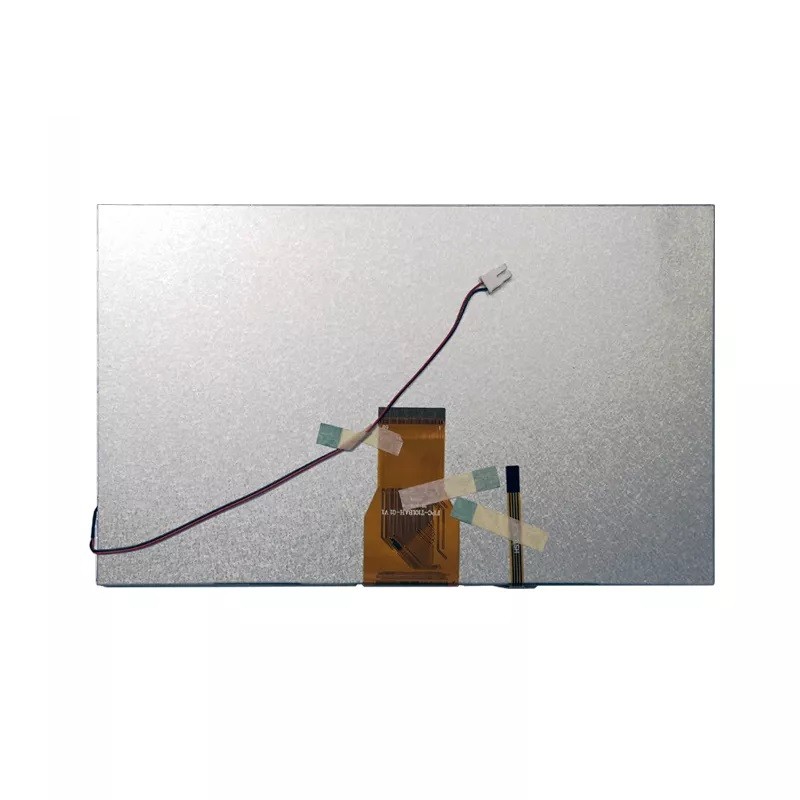

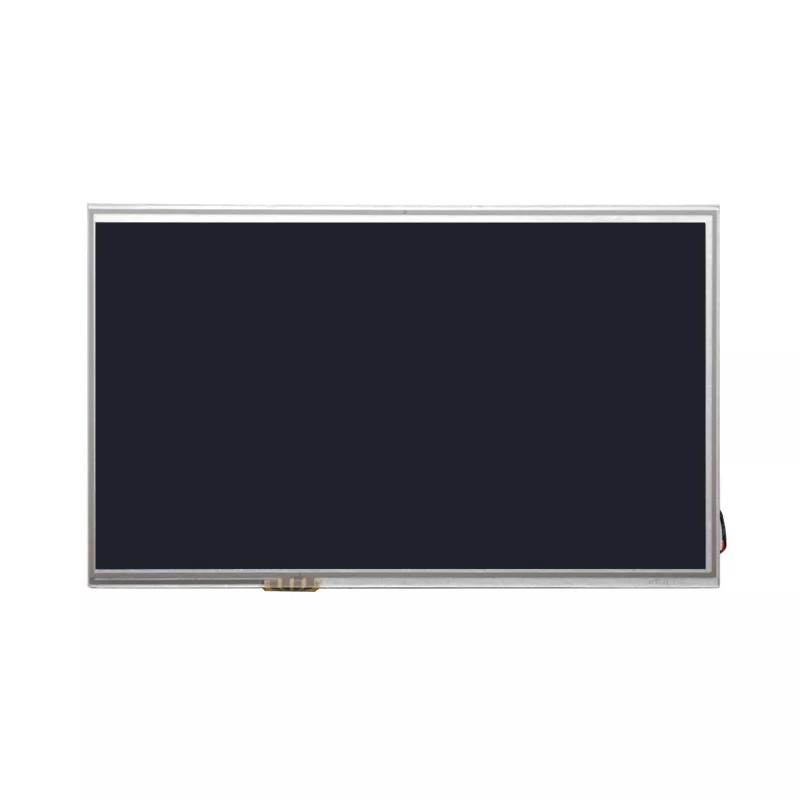

RG101BAH-09P 10.1英寸带电阻触摸屏TFT LCD

  • 产品项目 : RG101BAH-09P
  • 类别: 10.1英寸 LCD
  • 分辨率: 1024*(RGB)*600
  • 亮度: 300nits
  • LCM (W * H * D): 235.00*143.00*6.6mm
  • LCM 驱动IC: HX8282+HX8696
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 10.1 inch
Resolution 1024*600 dots
Pixel pitch 0.2175(H)*0.2088(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 300 cd/m2
LCM (W * H * D) 235.00*143.00*6.6 mm
Active Area (W * H ) 222.72*125.28 mm
With /Without TP With RTP -
LED Numbers 3S13P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB-24bit/50PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
LCM Driver IC HX8282+HX8696 -
