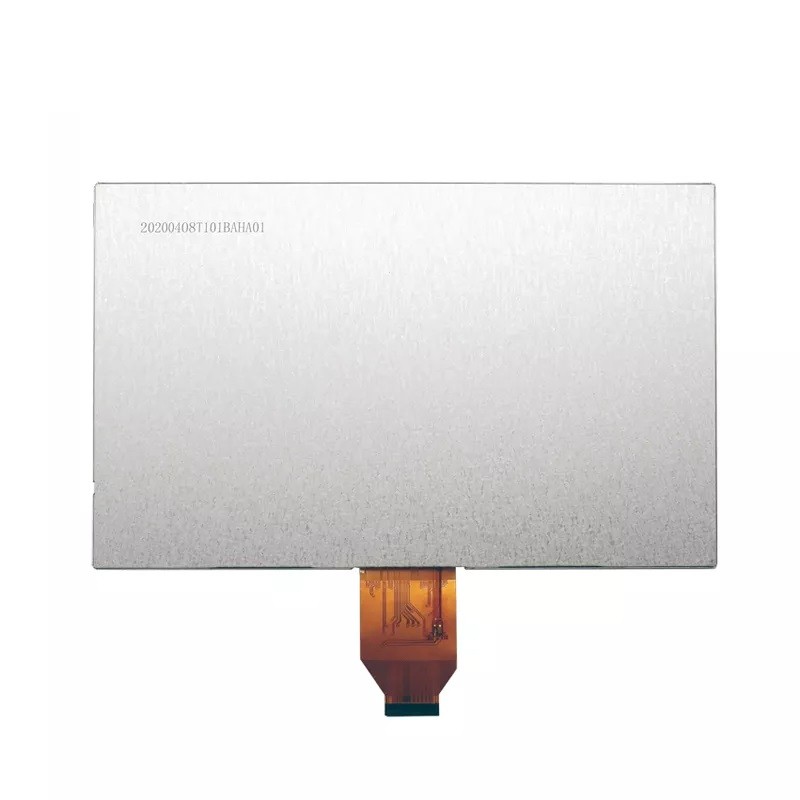

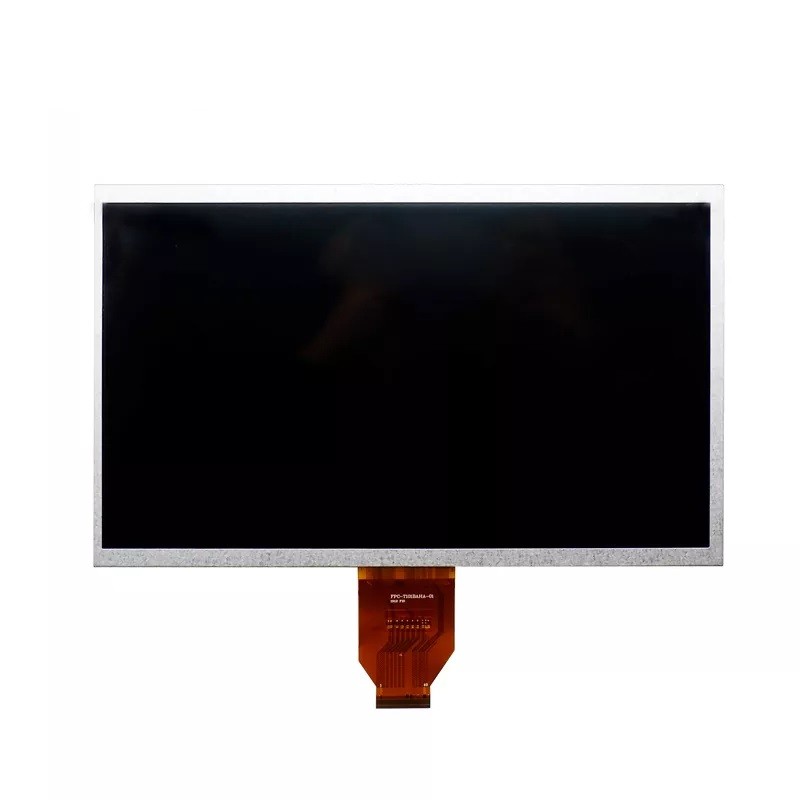

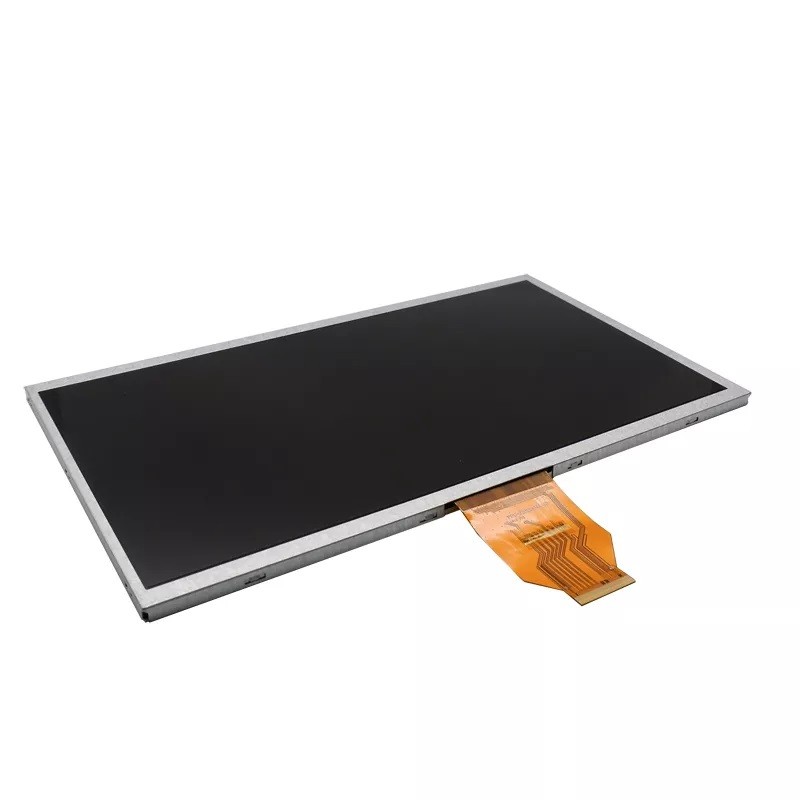

RG101BAHA-01 10.1英寸1024x600阳光下可视 IPS LCD模块

  • 产品项目 : RG101BAHA-01
  • 类别: 10.1英寸 LCD
  • 分辨率: 1024*(RGB)*600
  • 亮度: 500nits
  • LCM (W * H * D): 234.99*143.00*5.20mm
  • LCM驱动IC: HX8282A14+HX8696A
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 10.1 inch
Resolution 1024*600 dots
Pixel pitch 0.2175(H)*0.2088(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 500 cd/m2
LCM (W * H * D) 234.99*143.00*5.20 mm
Active Area (W * H ) 222.72*125.28 mm
With /Without TP Without TP -
LED Numbers 3S14P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface LVDS/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
LCM Driver IC HX8282A14+HX8696A -
