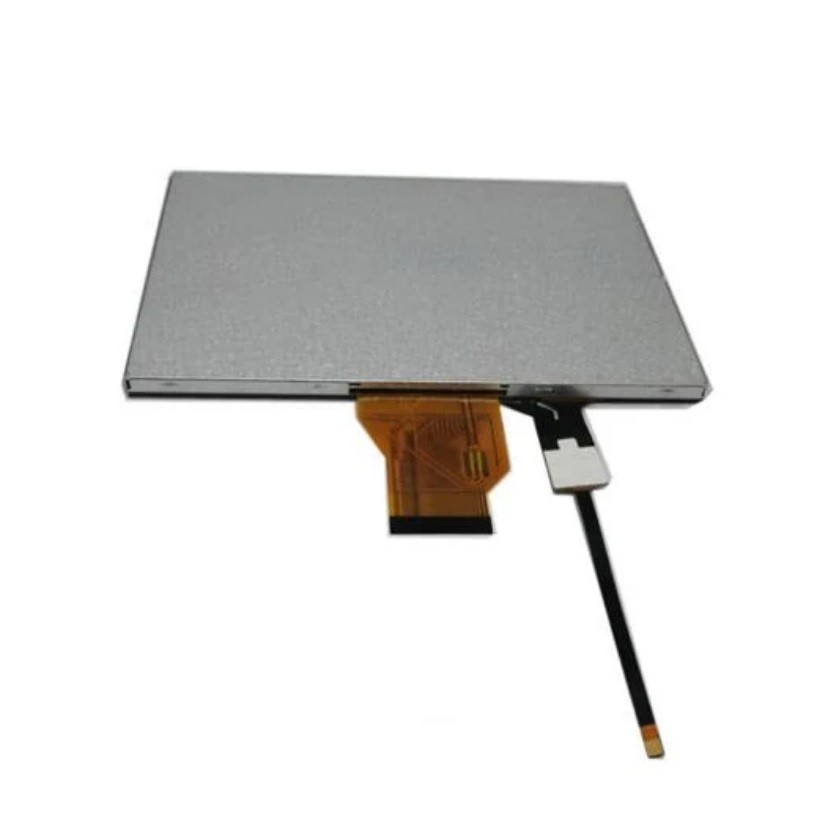

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD Rg-T700mhxh-10c0 7英寸TFT LCD模块 1024x600 3
| Item | Contents |
| LCD Type | TFT |
| Display Color | 16.7M |
| View Direction | 12 O'Clock |
| Gray Scale Inversion Direction | 6 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 164.9x100x5.5mm |
| Active Area(W×H) | 154.21x85.92mm |
| Number of Dots | 1024×600 dots |
| Dot pitch | 0.05(W)x0.15(H)mm |
| Power Supply Voltage | 3.3V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | 3×8-LEDs(white) |
| Controller | HX8282-A11 / HX8696-A00 |
| Interface | 24BITS RGB |
