首页      产品展示     7英寸-10.4英寸 TFT LCD     10.1英寸 LCD       RG101QIH-04 10.1英寸1280x800全视角 IPS LCD


  • RG101QIH-04 10.1英寸1280x800全视角 IPS LCD
  • RG101QIH-04 10.1英寸1280x800全视角 IPS LCD
  • RG101QIH-04 10.1英寸1280x800全视角 IPS LCD
RG101QIH-04 10.1英寸1280x800全视角 IPS LCDRG101QIH-04 10.1英寸1280x800全视角 IPS LCDRG101QIH-04 10.1英寸1280x800全视角 IPS LCD

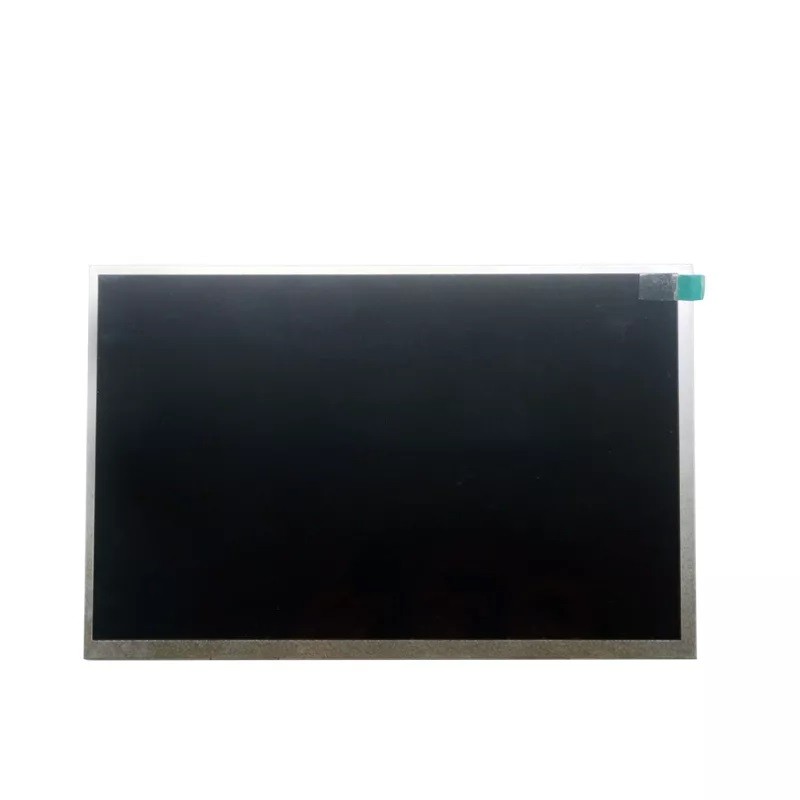

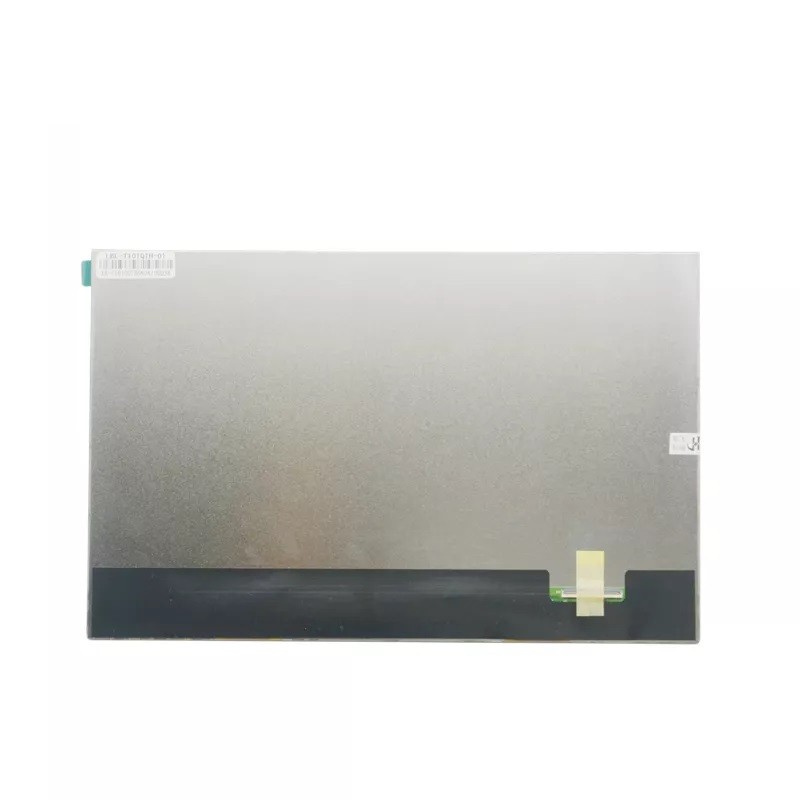

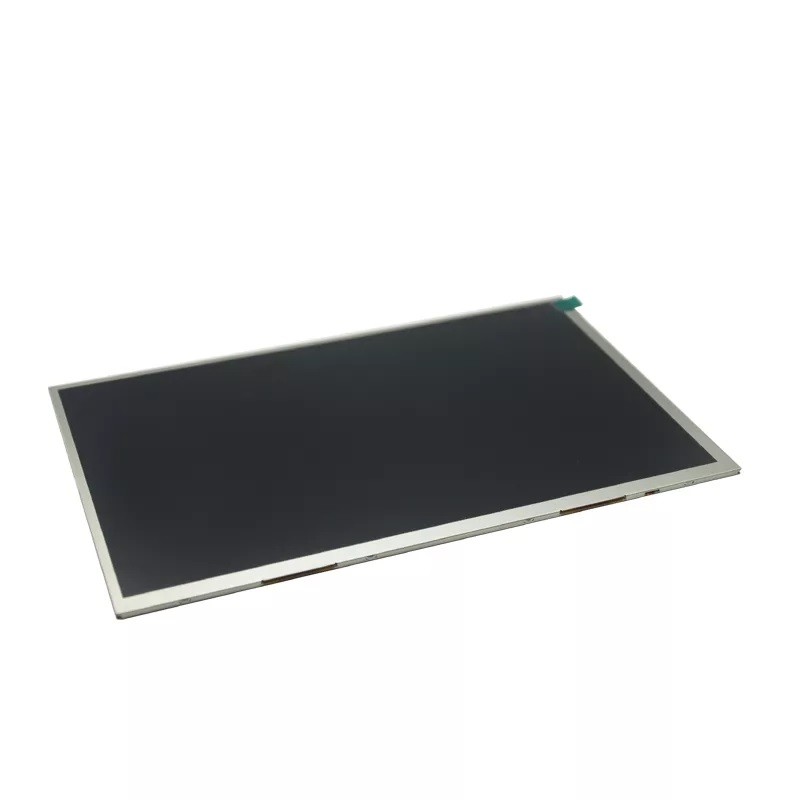

RG101QIH-04 10.1英寸1280x800全视角 IPS LCD

  • 产品项目 : RG101QIH-04
  • 类别: 10.1英寸 LCD
  • 分辨率: 1280*(RGB)*800
  • 亮度: 330nits
  • LCM (W * H * D): 229.34*148.98*2.50mm
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 10.1 inch
Resolution 1280*800 dots
Pixel pitch 0.1695(H)*0.1695(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 330 cd/m2
LCM (W * H * D) 229.34*148.98*2.50 mm
Active Area (W * H ) 216.96*135.60 mm
With /Without TP Without TP -
LED Numbers 3S10P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface LVDS/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
