首页      产品展示     10.8英寸-18.5英寸 TFT LCD     15.6英寸 LCD       RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD

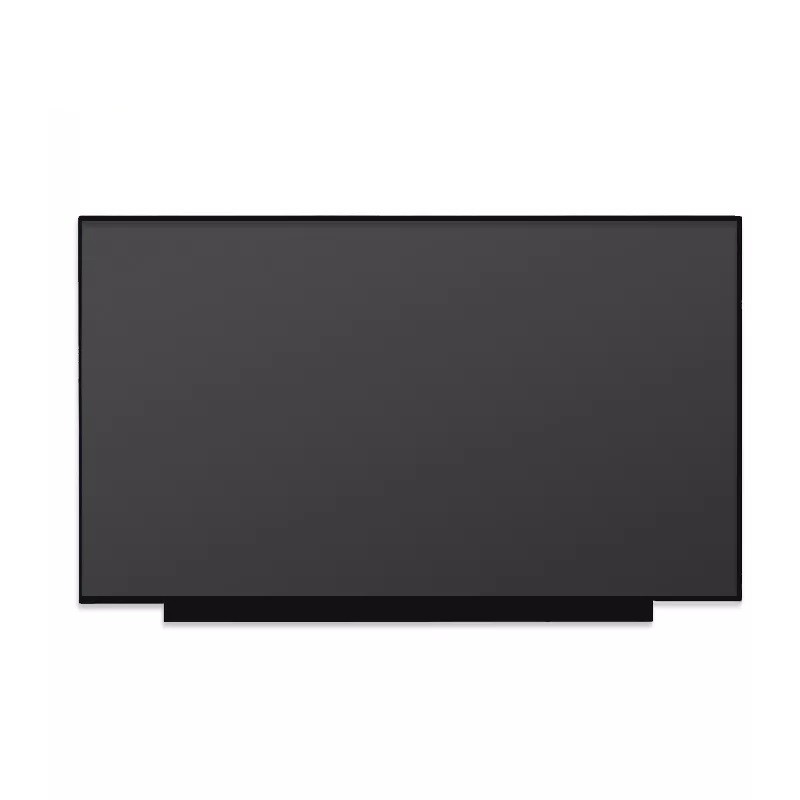

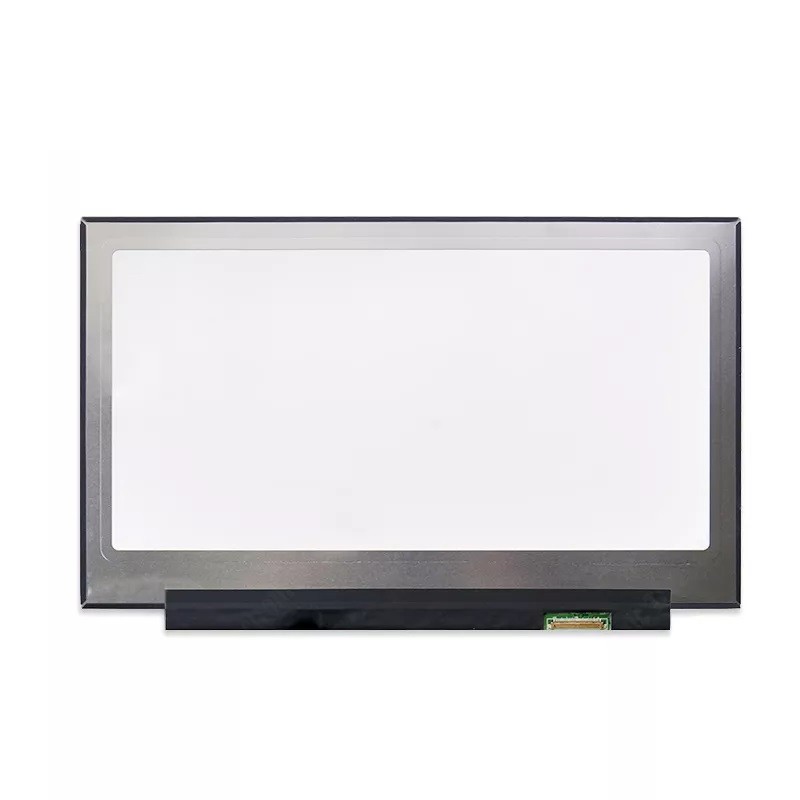

  • RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口
  • RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口
  • RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口
RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口

RG156QFH-01 15.6英寸1920x1080 IPS TFT LCD eDP接口

  • 产品项目 : RG156QFH-01
  • 类别: 15.6英寸 LCD
  • 分辨率: 1920*(RGB)*1080
  • 亮度: 250nits

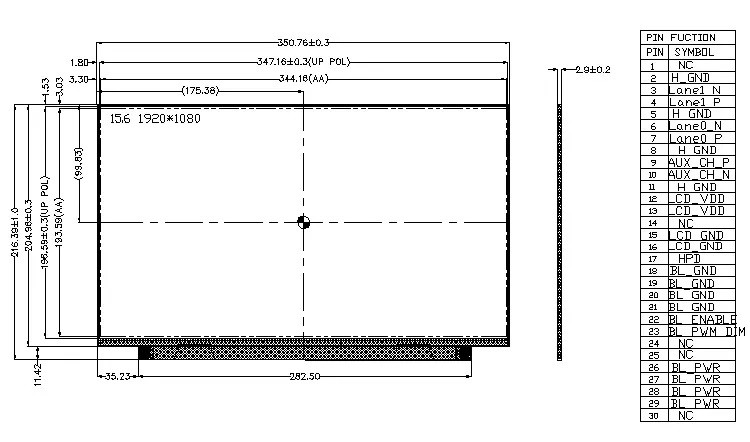

  • LCM (W * H * D): 350.76*216.39*2.90mm
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 15.6 inch
Resolution 1920X1080 dots
Pixel pitch 0.17925(W)x 0.17925(H) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 250 cd/m2
LCM (W * H * D) 350.76X216.39X2.90 mm
Active Area (W * H ) 344.16X193.59 mm
With /Without TP Without TP -
LED Numbers 9S5P-LED pcs
Operation temperature -10~+50
Storage temperature -20~+60
Interface eDP -
LCM Power Supply 3.3 V
LED  Power Supply 27.0 V
Color Depth 16.7M -
