Round TFT LCD Modules 0.99″–7.0″ — Wearables & Knobs | DISEA
A true circular active area — no masked corners. DISEA's 7 round TFT modules span 0.99″ to 7.0″ at 128x115–1080x1080 resolution with brightness up to 1000 cd/m², made for smart watches, audio knobs, thermostat dials and beauty devices. SPI and MCU interfaces keep the BOM small; ODM covers flex shapes and bonded covers.
- 7 true-circular modules, 0.99″–7.0″
- Brightness up to 1000 cd/m², resolutions 128x115–1080x1080
- SPI / MCU interfaces — low-pin-count wearable BOMs
7 standard models in this family

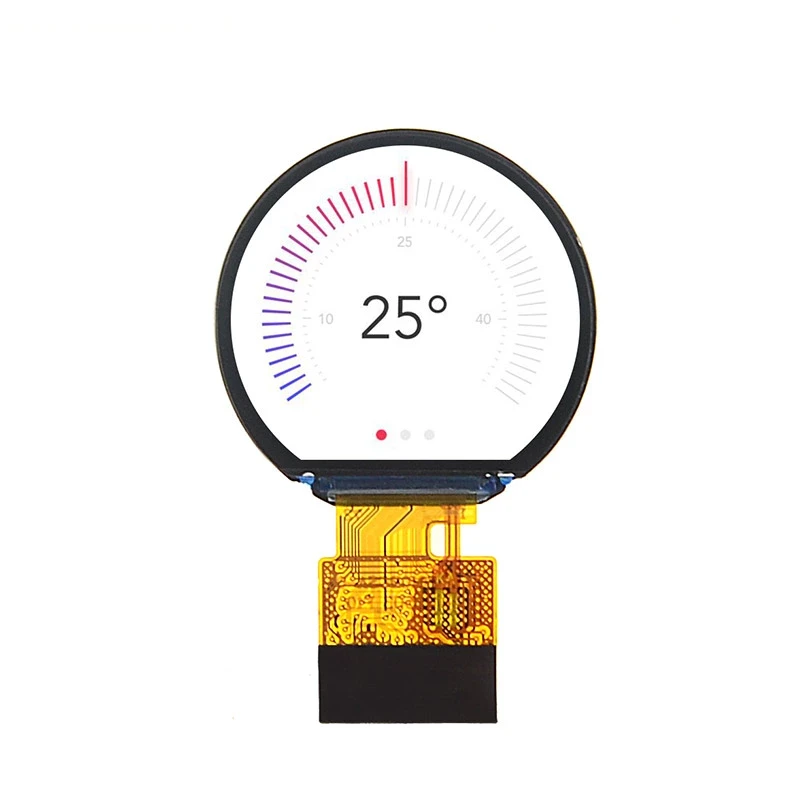

DS-T010BCSA-01

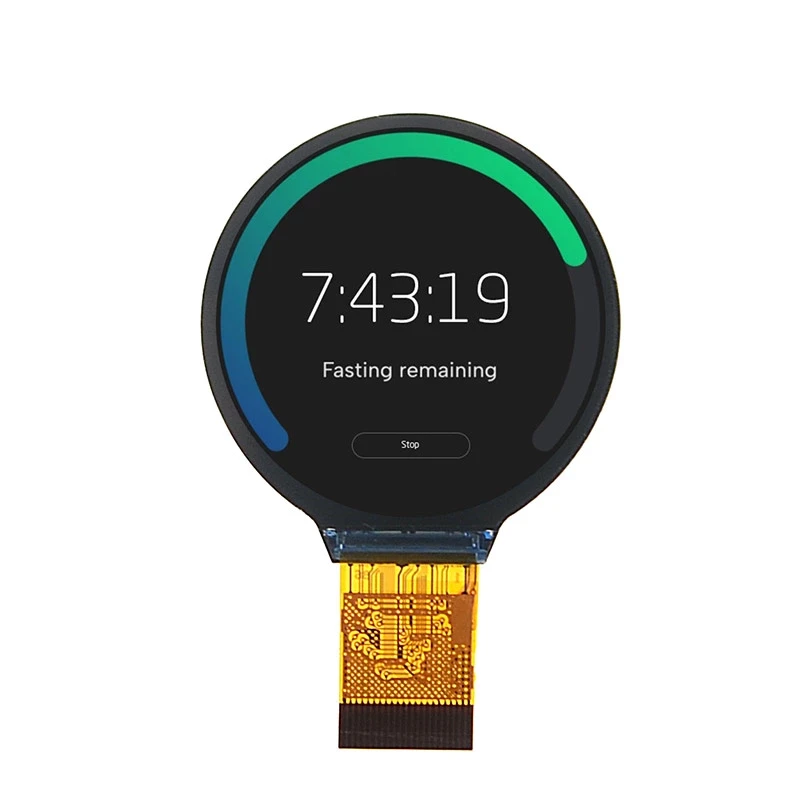

DS-T013HQGA-01

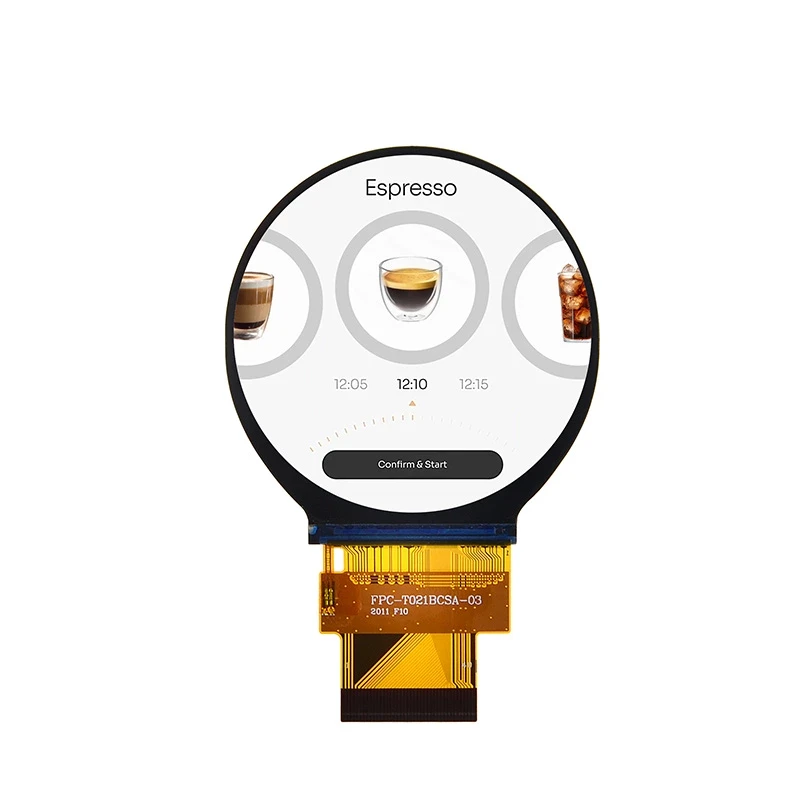

DS-T021BCSA-02

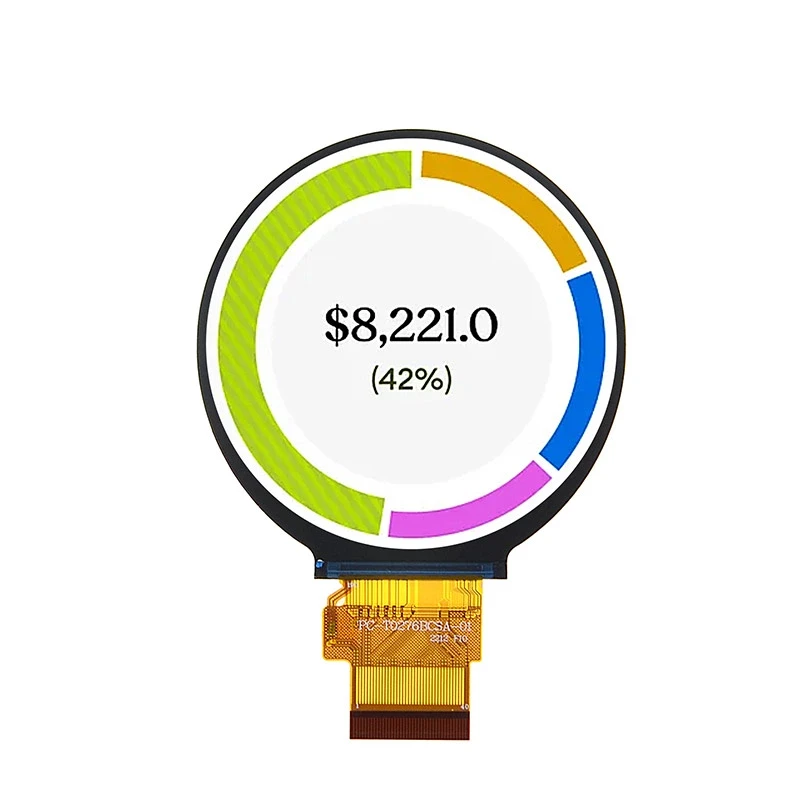

DS-T0276BCSA-01
DS-T034BOIA-01

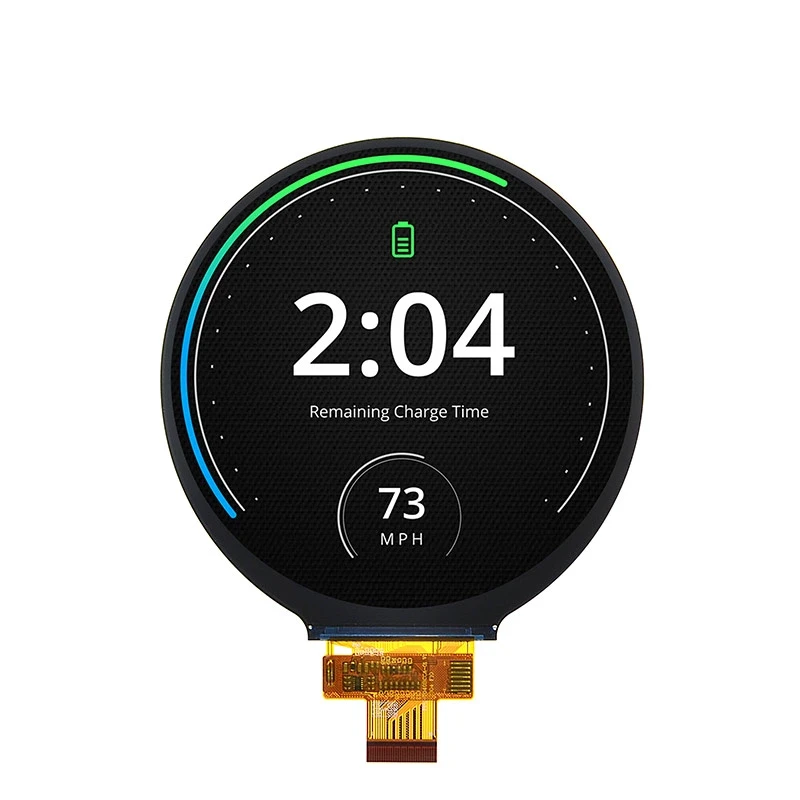

DS-T040BCSA-01

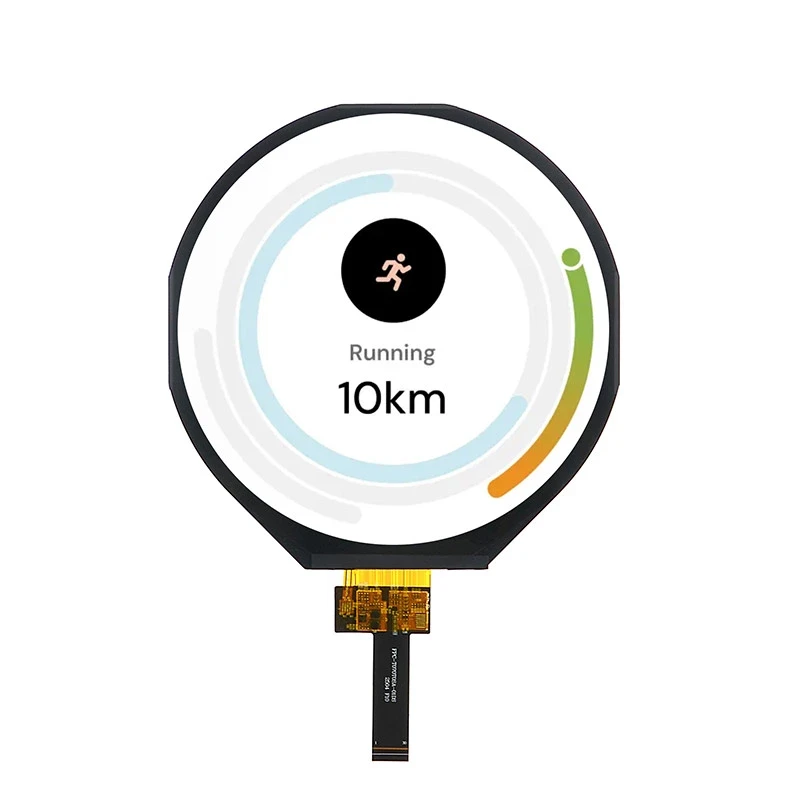

DS-T070TOSA-01
FAQ
Can you customize and develop?
Yes. Our 72-engineer R&D team takes requirements from concept to EVT; for shaped / odd-form displays the concept-to-EVT cycle is 6–8 weeks with NRE from USD 4,800–7,500 depending on structural complexity. FPC, backlight, cover-lens, bonding and interface are all customizable.
Is the MOQ low?
Standard MOQ is 500 pcs. We accept small batches (<500 pcs) for prototypes and bridge builds, with a unit premium of about +15%. Tell us your volume and we'll quote.
Do you provide samples, and what is your sample policy?
Yes. We sample every standard model in our 193-model catalog. Standard catalog parts are available as samples, typically at a nominal charge (often free for qualified projects), with the prototype / sampling cycle in 5–7 working days. Custom / ODM parts are sampled under the development NRE and timeline on the custom & ODM solutions page.
Each standard sample ships with the full package — datasheet, mechanical dimension drawing and 3D STEP model — so your mechanical and firmware teams can begin layout before mass production. Small bridge builds (<500 pcs) are supported if you need volume between sample and MP.
Tell us the P/N, quantity and destination on the contact page, and we'll arrange the sample and quote any applicable sample or freight cost.
