首页      产品展示     2英寸-2.8英寸 TFT LCD     2.2英寸 LCD       RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI93

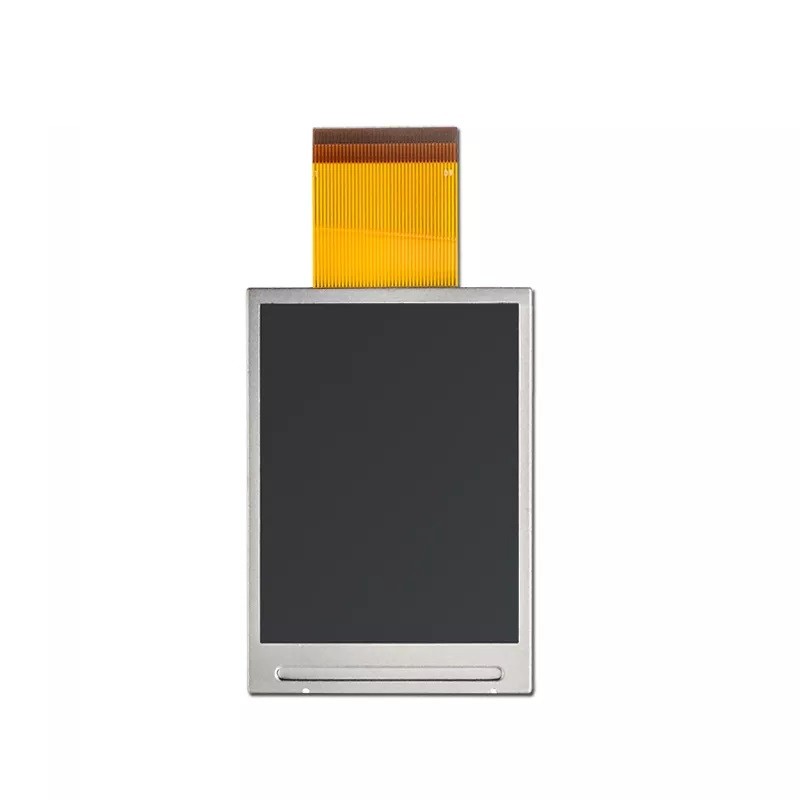

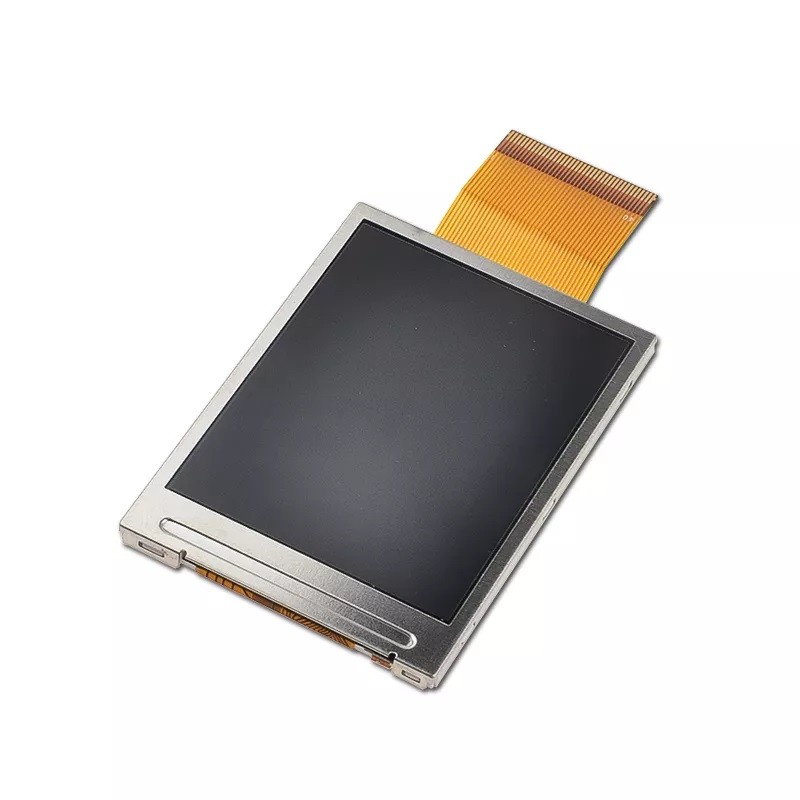

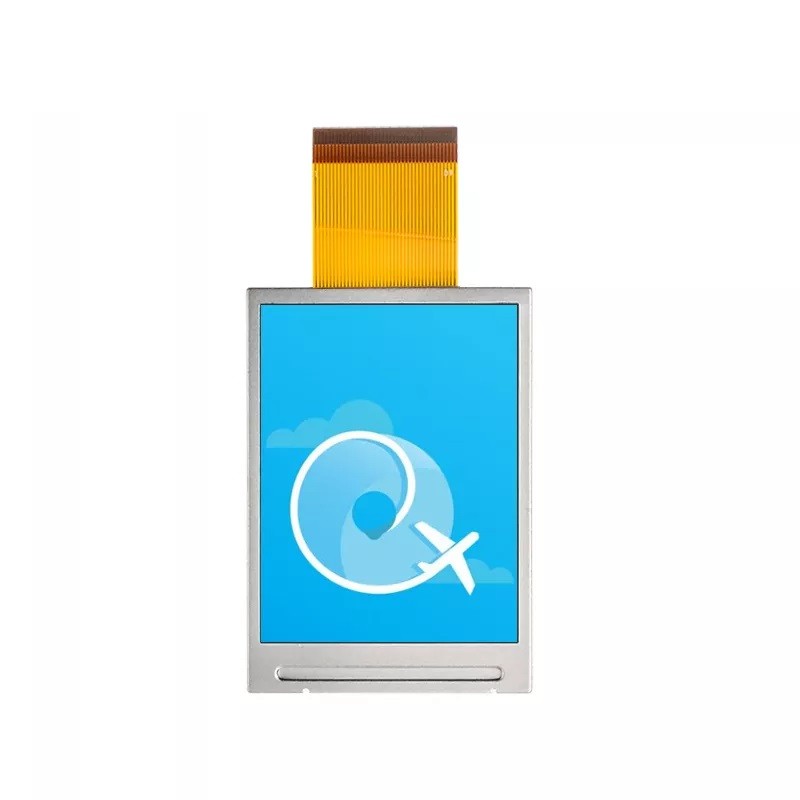

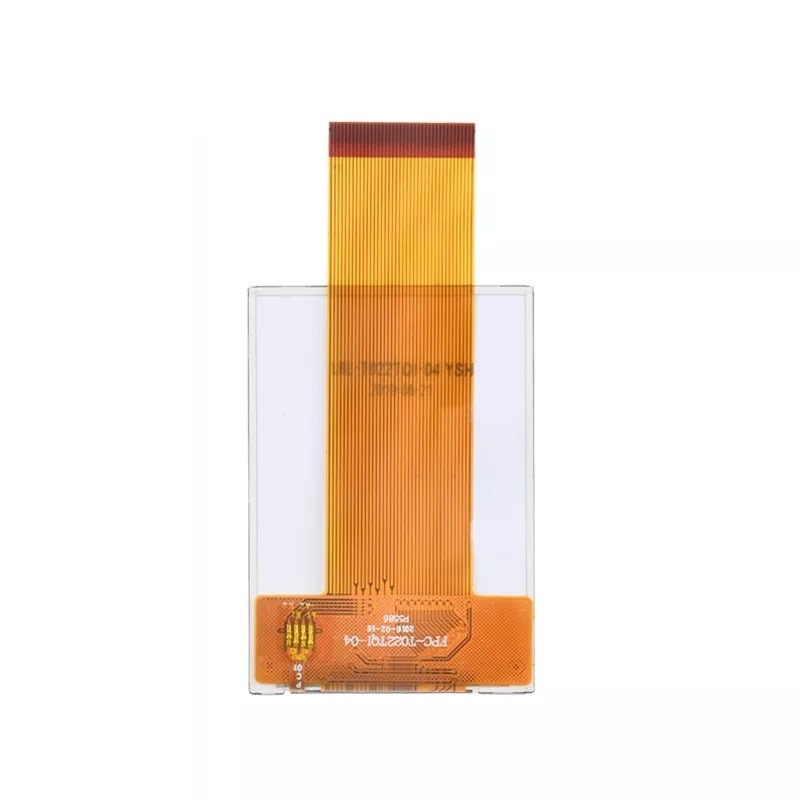

  • RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341V
  • RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341V
  • RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341V
  • RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341V
RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341VRG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341VRG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341VRG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341V

RG022TQI-04 2.2英寸 QVGA 240x320 TFT ILI9341V

  • 产品项目 : RG022TQI-04
  • 类别: 2.2英寸 LCD
  • 分辨率: 240*(RGB)*320
  • 亮度: 350nits
  • LCM (W * H * D): 40.1*57.1*3.0mm
  • LCM驱动IC: ILI9341V
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 2.2 inch
Resolution 240*320 dots
Pixel pitch 0.141(H)*0.141(V) mm
Display Mode TN/NW -
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Luminance 330 cd/m2
LCM (W * H * D) 38.50*56.16*2.35 mm
Active Area (W * H ) 33.84*45.12 mm
With /Without TP Without TP -
LED Numbers 4P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 8/16BIT MCU -
LCM Power Supply 2.8 V
LED  Power Supply 3.0 V
Color Depth 262K -
LCM Driver IC ILI9341V -
