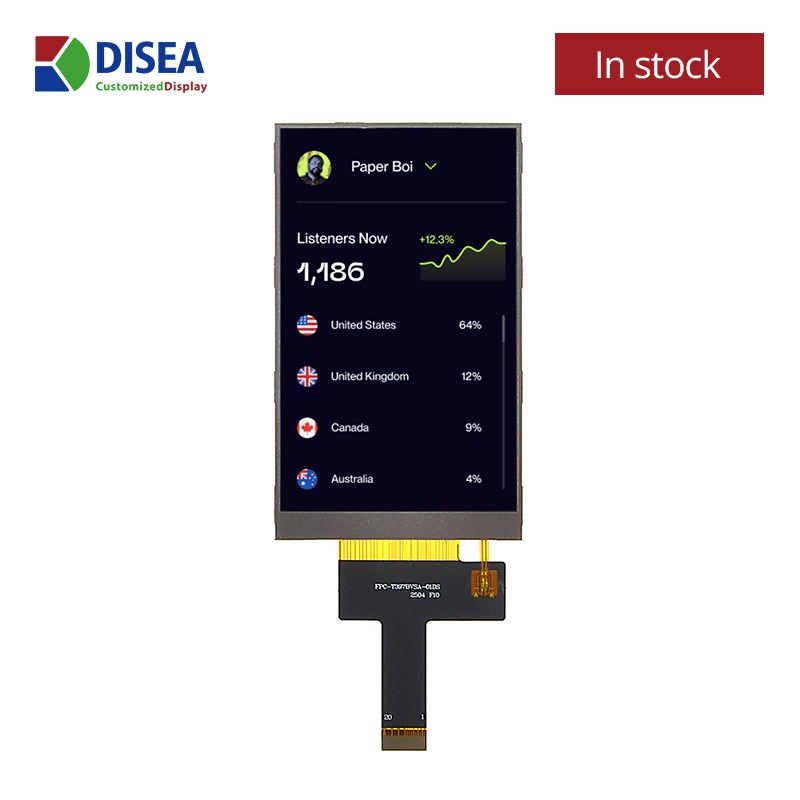

DS-T0397BVSA-01 — 3.97″ 480x800 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
3.97"480x800IPS330 cd/m²Without touch
| DISEA P/N | DS-T0397BVSA-01 |
|---|---|
| Display Size | 3.97 inch |
| Resolution | 480x800 |
| LCD Type / Shape | IPS |
| Luminance | 330 cd/m² |
| Module Interface | MIPI |
| LCD Driver IC | ST7701S |
| Touch Option | Without touch |
| Active Area (mm) | 51.84x86.40 |
| Outline Dim. (mm) | 57.14x96.85x2.27 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 3 – 5 inch

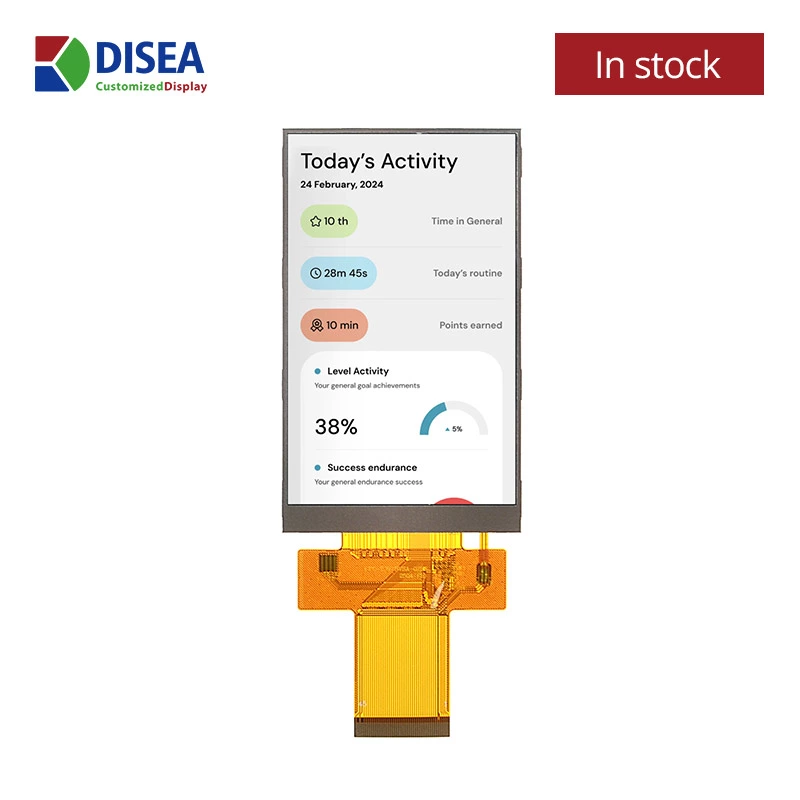

DS-T0397BVSA-02
3.97"480x800IPS

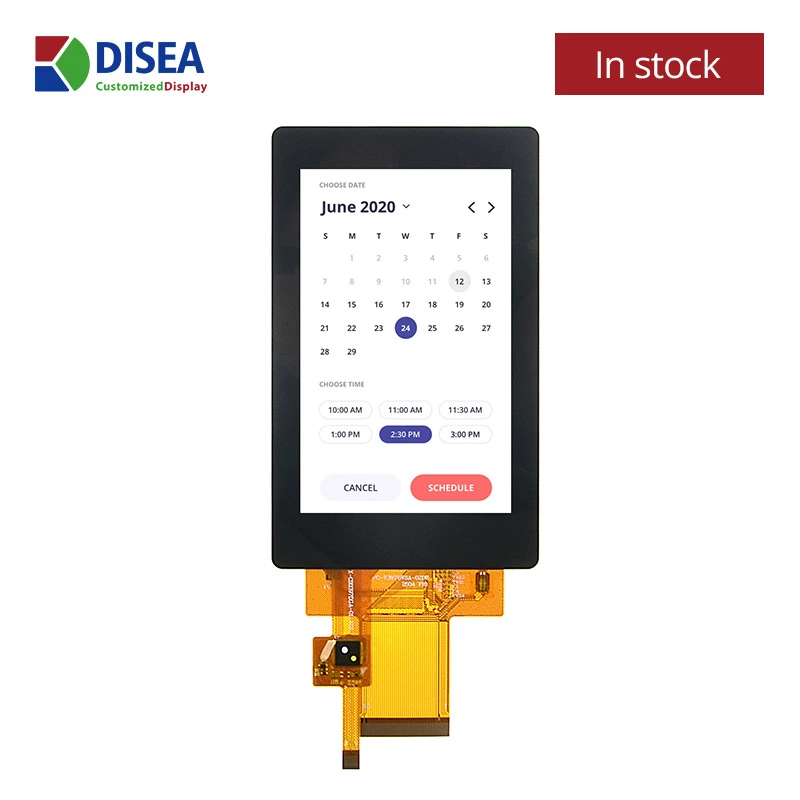

DS-T0397BVSA-02CP
3.97"480x800IPS

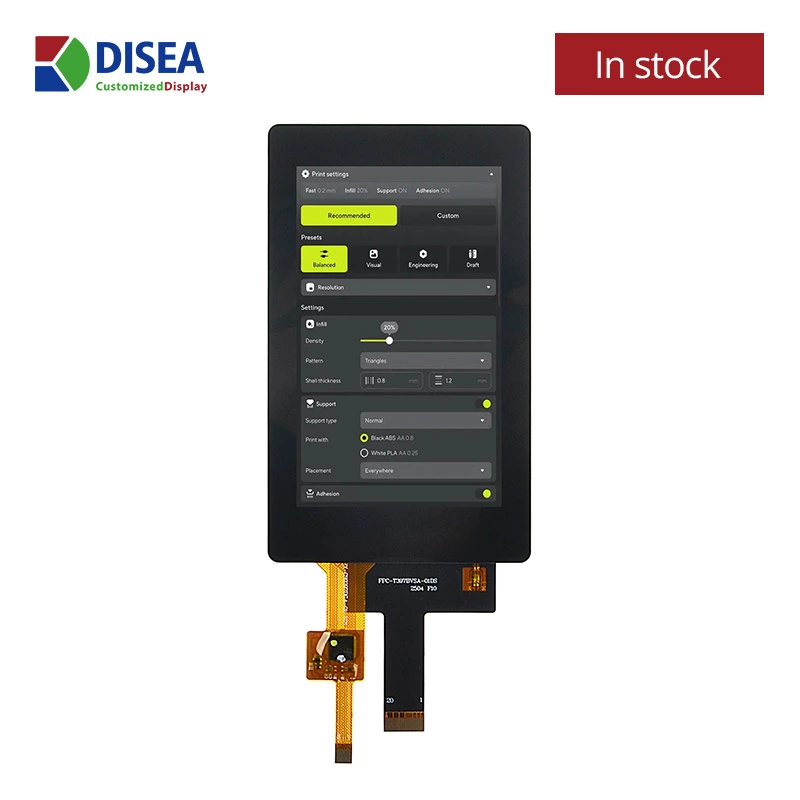

DS-T0397BVSA-01CP
3.97"480x800IPS
DS-T0399BUSA-01
3.99"400x960IPS Bar
