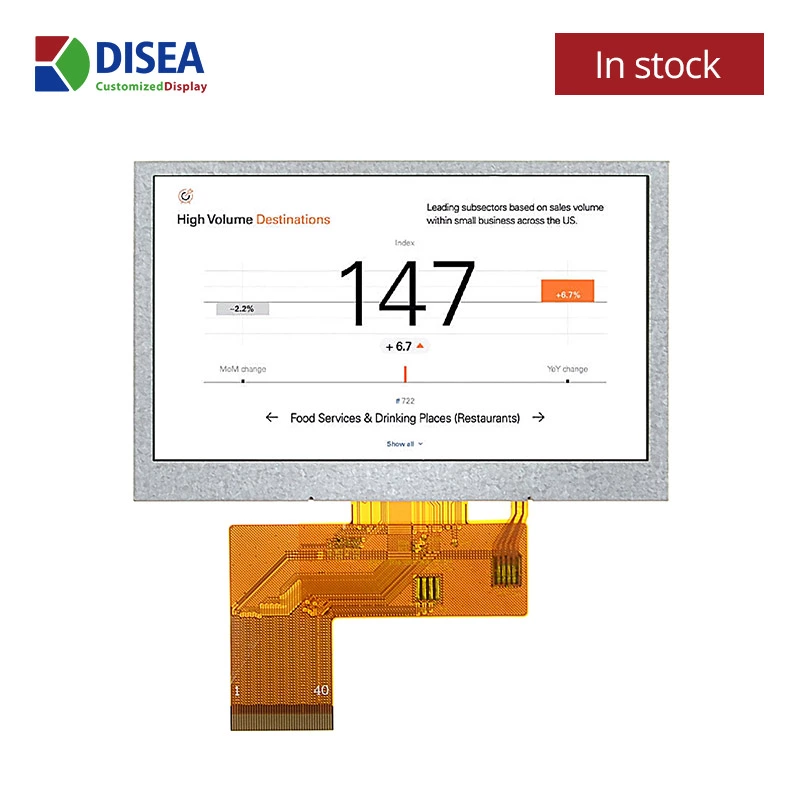

DS-T043BPSWA-02 — 4.3″ 480x272 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
4.3"480x272IPS700 cd/m²Without touch
| DISEA P/N | DS-T043BPSWA-02 |
|---|---|
| Display Size | 4.3 inch |
| Resolution | 480x272 |
| LCD Type / Shape | IPS |
| Luminance | 700 cd/m² |
| Module Interface | 24BIT RGB |
| LCD Driver IC | ST7282A |
| Touch Option | Without touch |
| Active Area (mm) | 95.04x53.86 |
| Outline Dim. (mm) | 105.50x67.20x3.00 |
| Operating Temp. (°C) | -30-80 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 3 – 5 inch

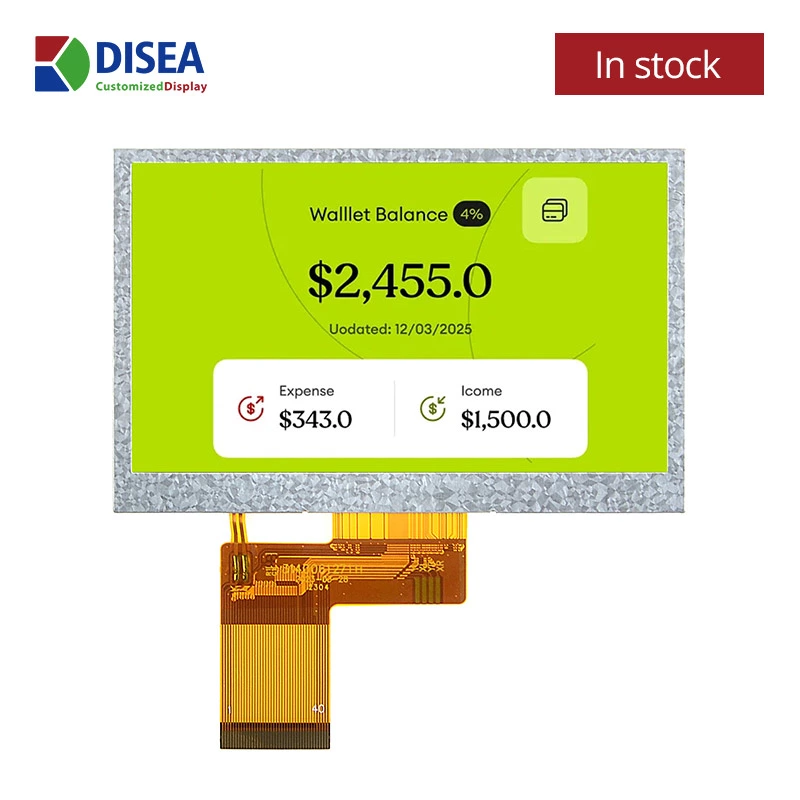

DS-T043BPI-01ND
4.3"480x272TN

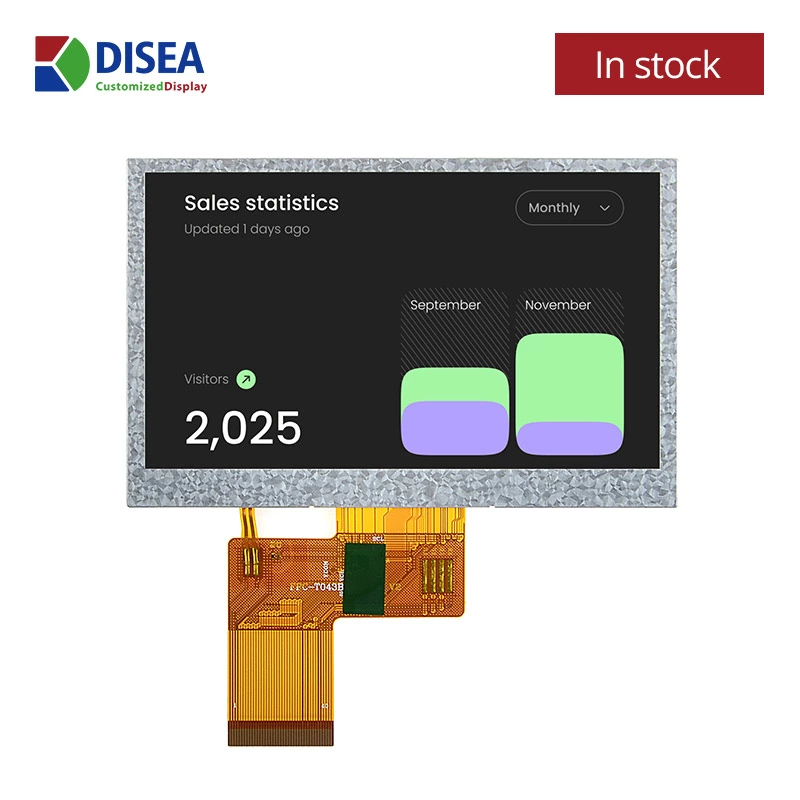

DS-T043BPS-01ND
4.3"480x272TN
DS-T043BPS-04ND
4.3"480x272TN

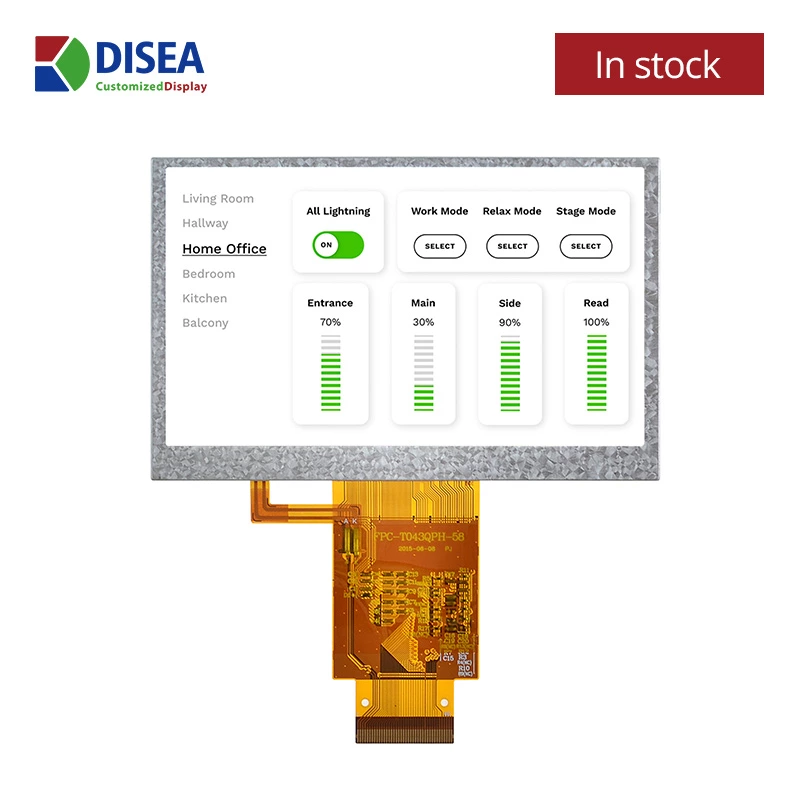

DS-T043QPH-58
