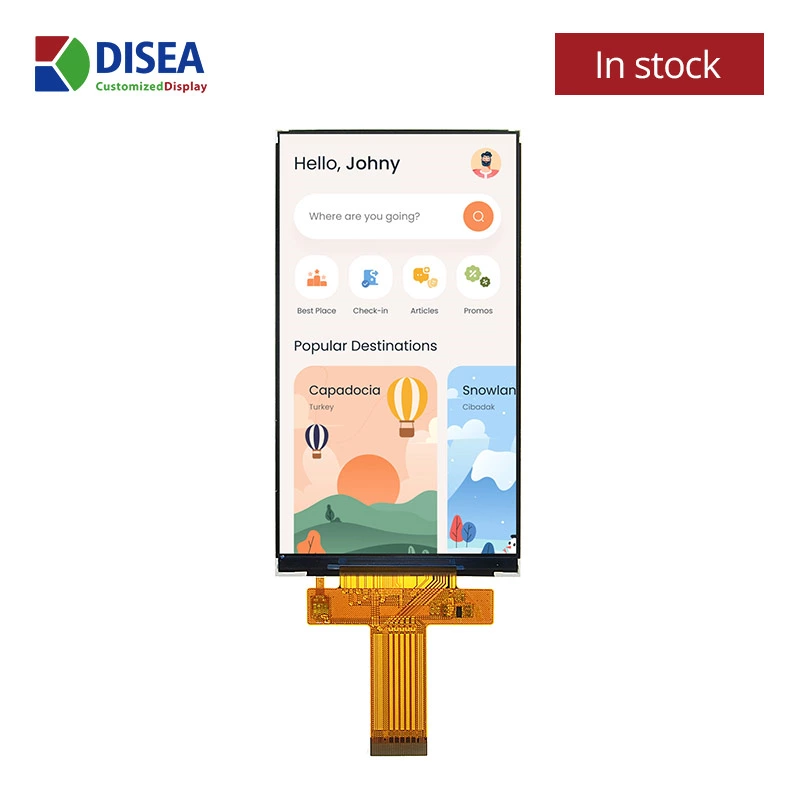

DS-T050BMSA-01 — 5.0″ 720x1280 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
5.0"720x1280IPS500 cd/m²Without touch
| DISEA P/N | DS-T050BMSA-01 |
|---|---|
| Display Size | 5.0 inch |
| Resolution | 720x1280 |
| LCD Type / Shape | IPS |
| Luminance | 500 cd/m² |
| Module Interface | 4 LANE MIPI |
| LCD Driver IC | FL7707N |
| Touch Option | Without touch |
| Active Area (mm) | 62.11x110.40 |
| Outline Dim. (mm) | 66.30x120.30x2.15 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 5 – 8 inch

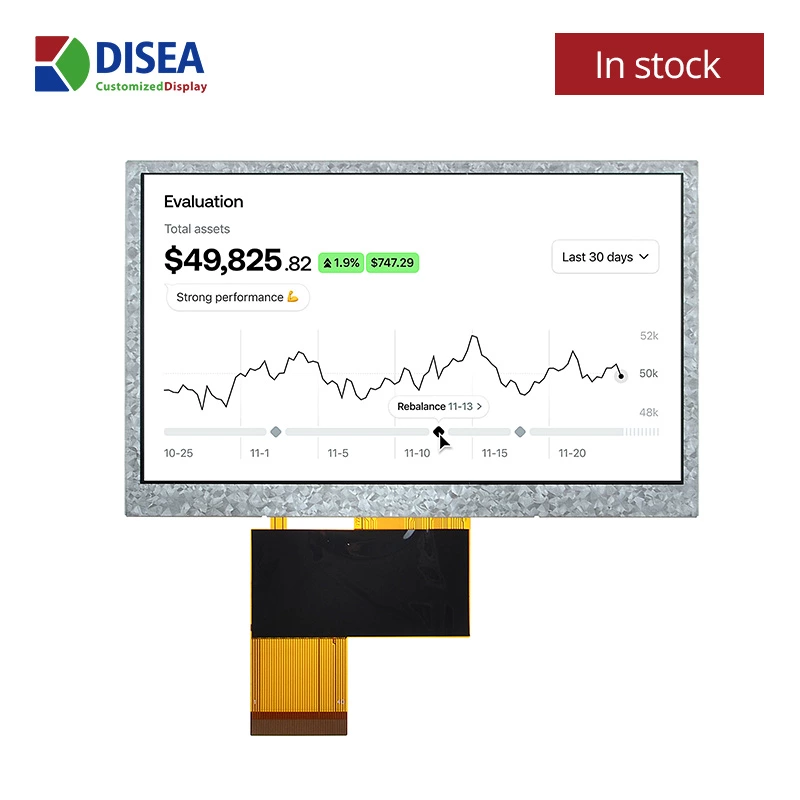

DS-T050BPH-01
5.0"480x272TN

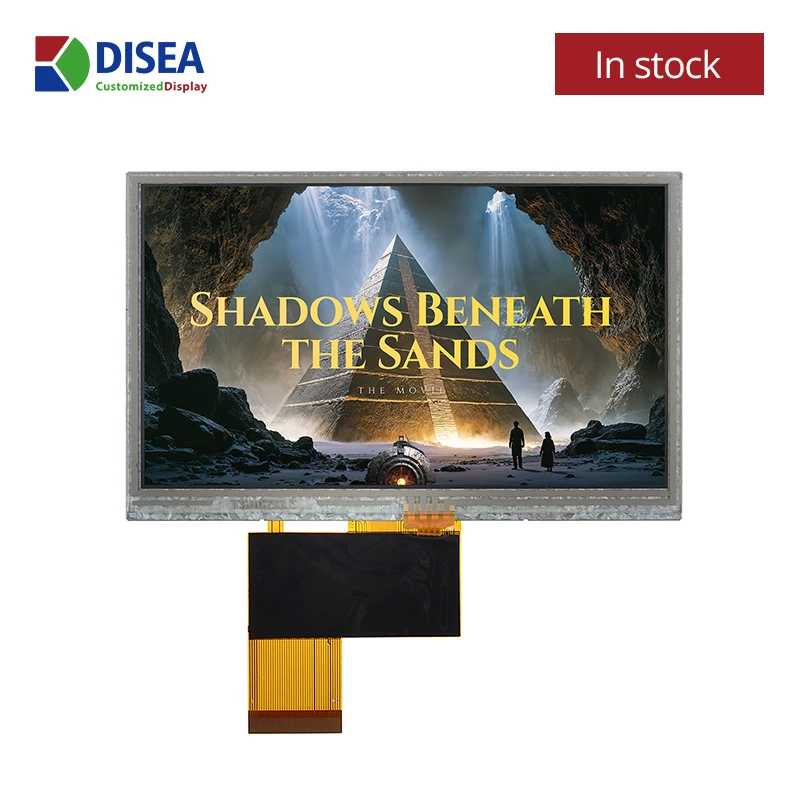

DS-T050BPH-01P
5.0"480x272TN

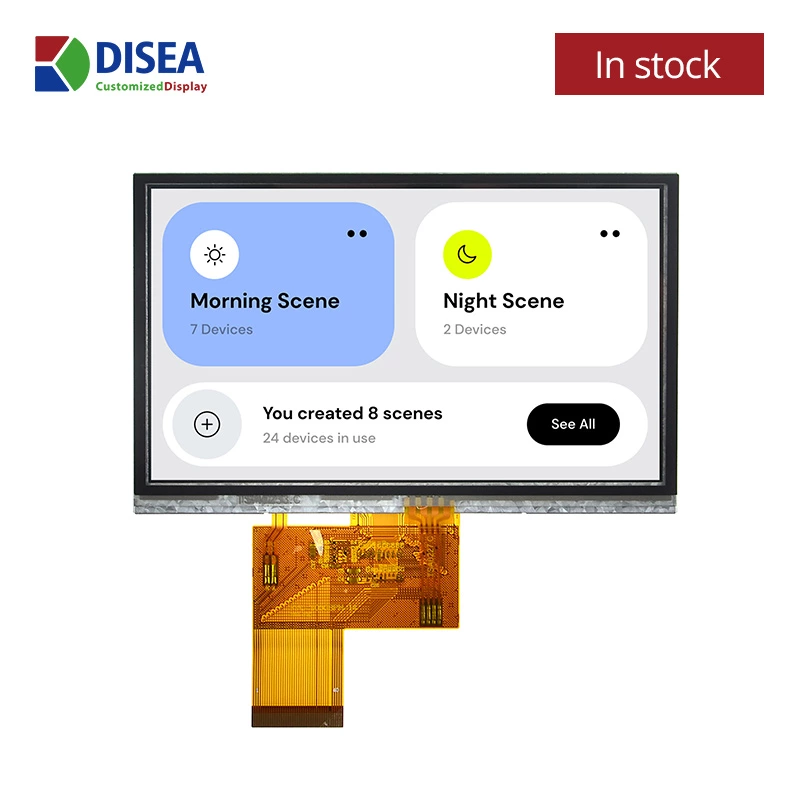

DS-T050BPH-14P
5.0"480x272TN

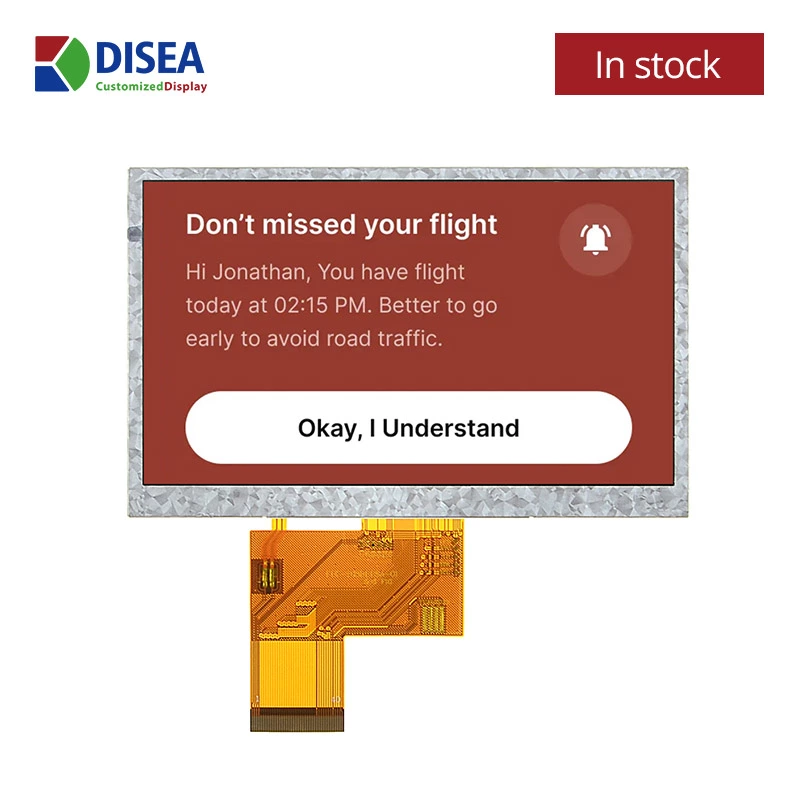

DS-T050BPSA-01
