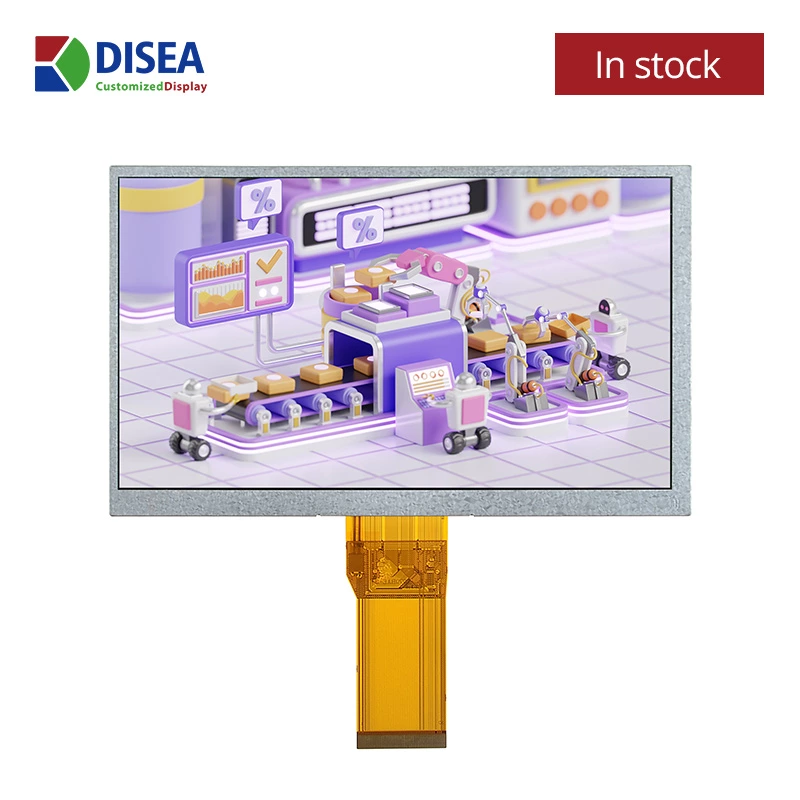

DS-T070BAE-32 — 7.0″ 1024x600 TN TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
7.0"1024x600TN200 cd/m²Without touch
| DISEA P/N | DS-T070BAE-32 |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 1024x600 |
| LCD Type / Shape | TN |
| Luminance | 200 cd/m² |
| Module Interface | RGB |
| LCD Driver IC | EK79001HE+EK73215BCGA |
| Touch Option | Without touch |
| Active Area (mm) | 154.21x85.92 |
| Outline Dim. (mm) | 164.90x100.00x2.80 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 5 – 8 inch
DS-T070BUSA-01
7.0"280x1424IPS Bar

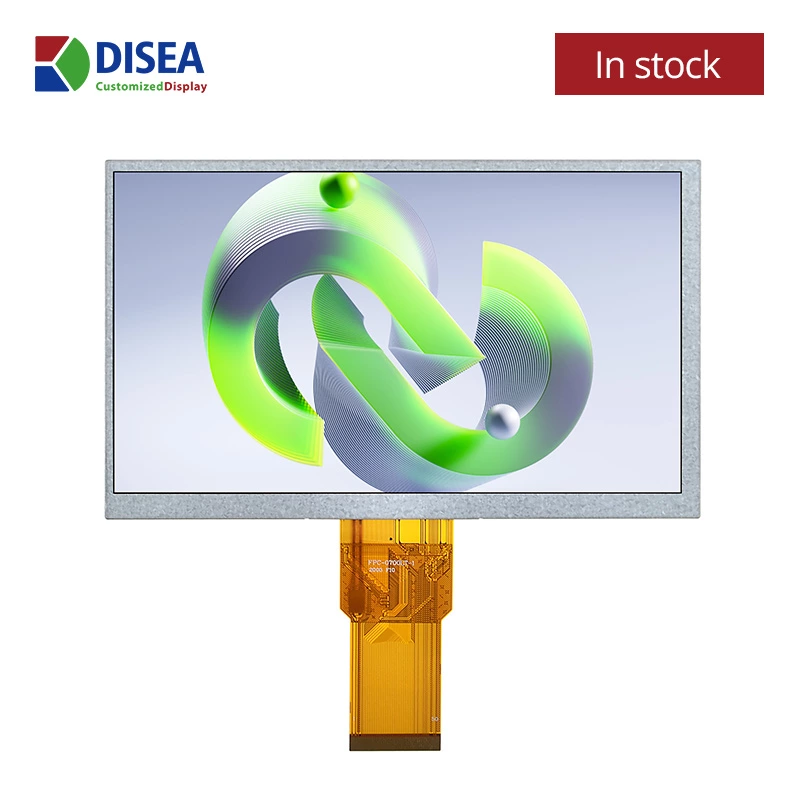

DS-T070SWH-83
7.0"800x480TN

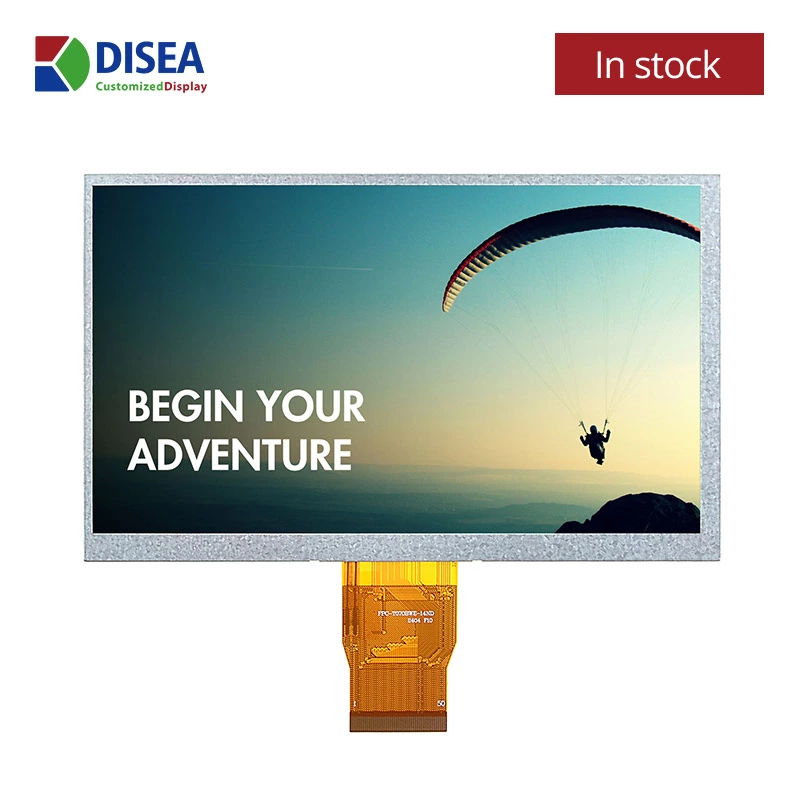

DS-T070BWE-14ND
7.0"800x480TN

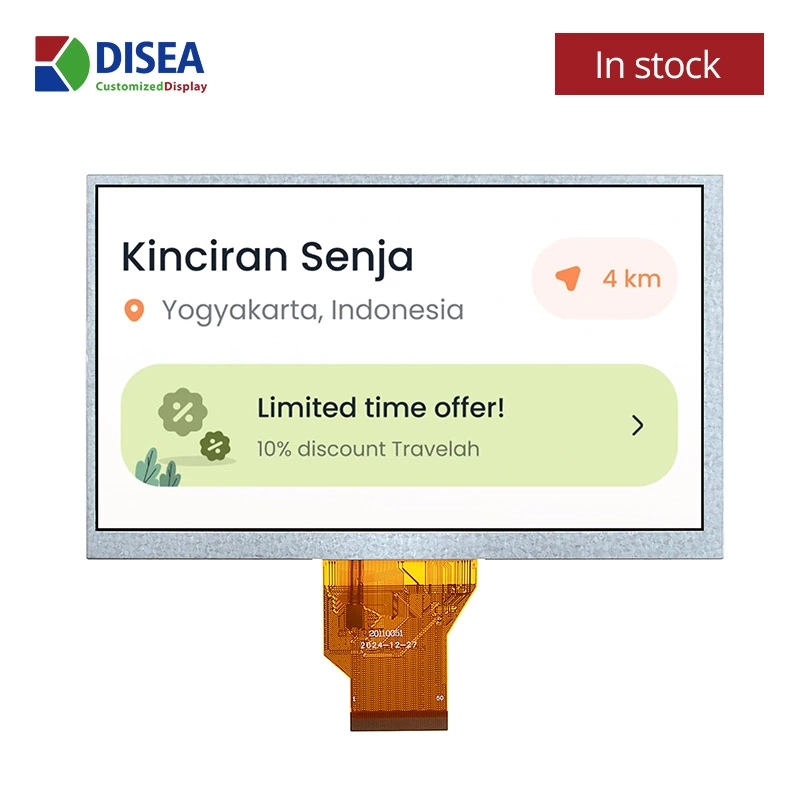

DS-T070QWE-01ND
