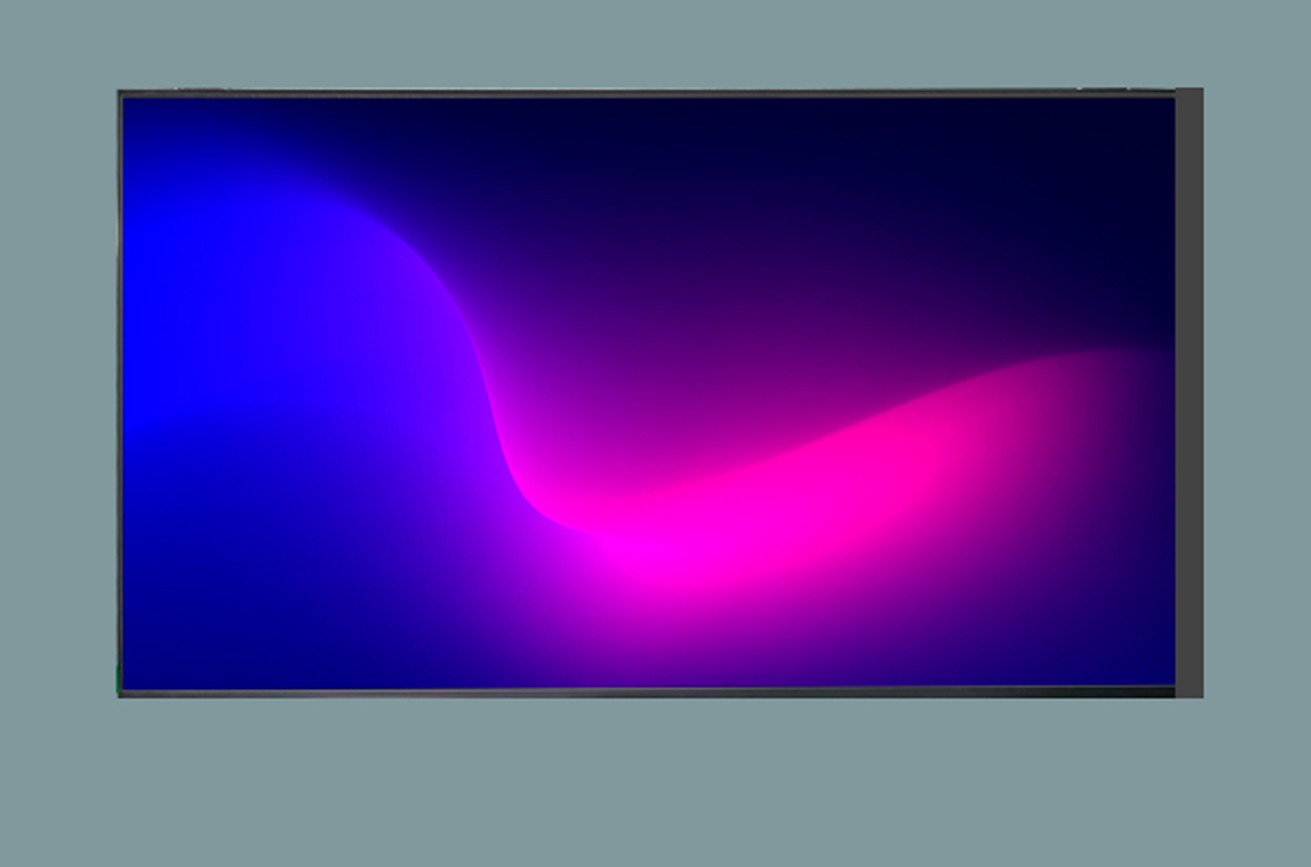

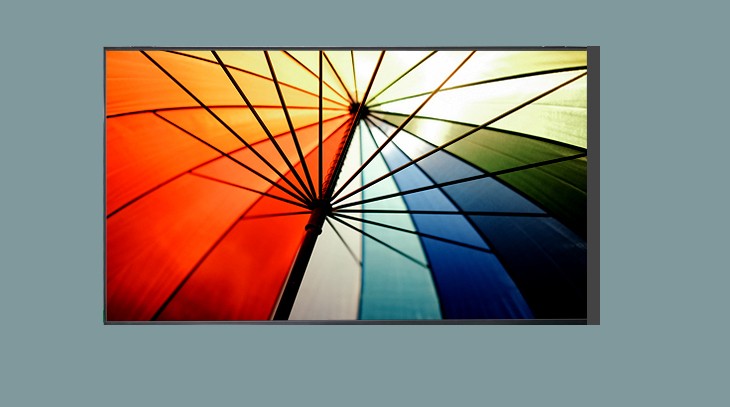

首页 产品展示 7英寸-10.4英寸 TFT LCD 10.1英寸 LCD RG101QIH-39CP 10.1英寸1280x800带电容触摸屏HDMI接口
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 10.1 | inch |
| Resolution | 1280*800 | dots |
| Pixel pitch | 0.1695(H)*0.1695(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 350 | cd/m2 |
| LCM (W * H * D) | 240.00*163.50*5.00 | mm |
| Active Area (W * H ) | 216.96*135.60 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 3S14P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | HDMI | - |
| LCM Power Supply | 5.0 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | - | - |
| CTP Dricer IC | ILI2511 | - |
