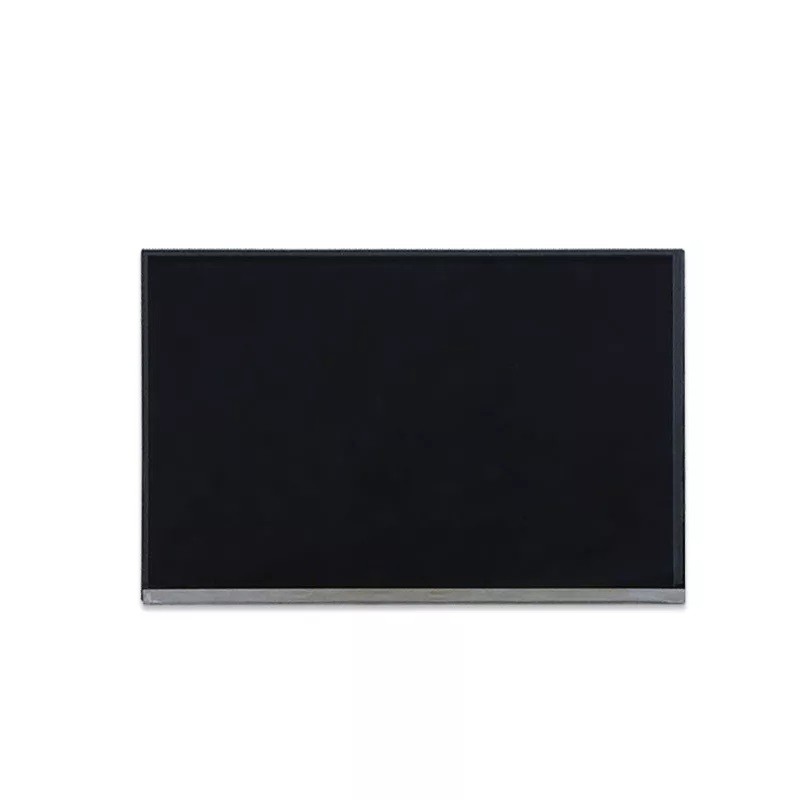

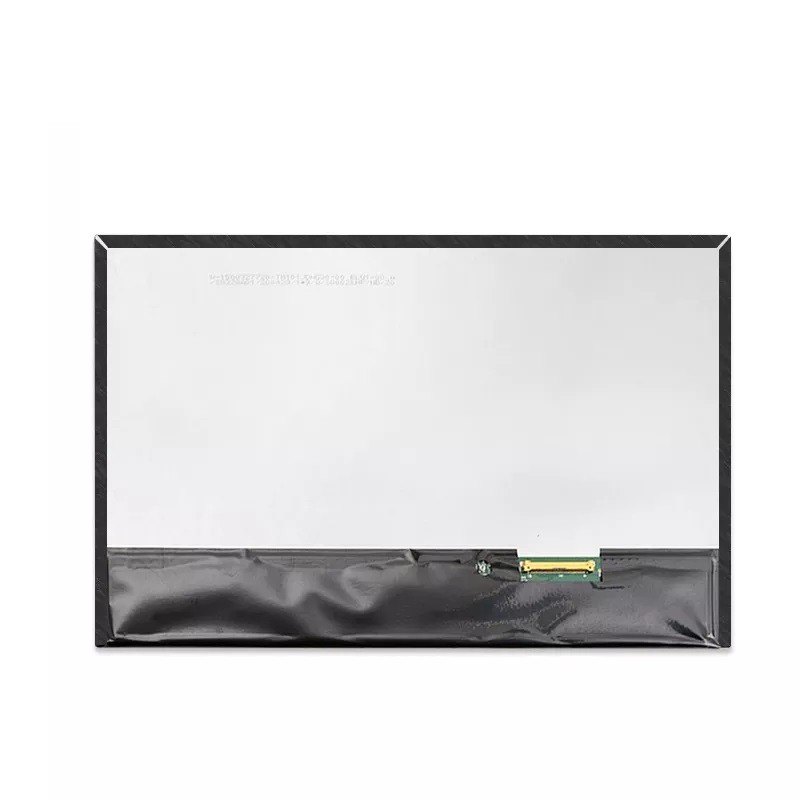

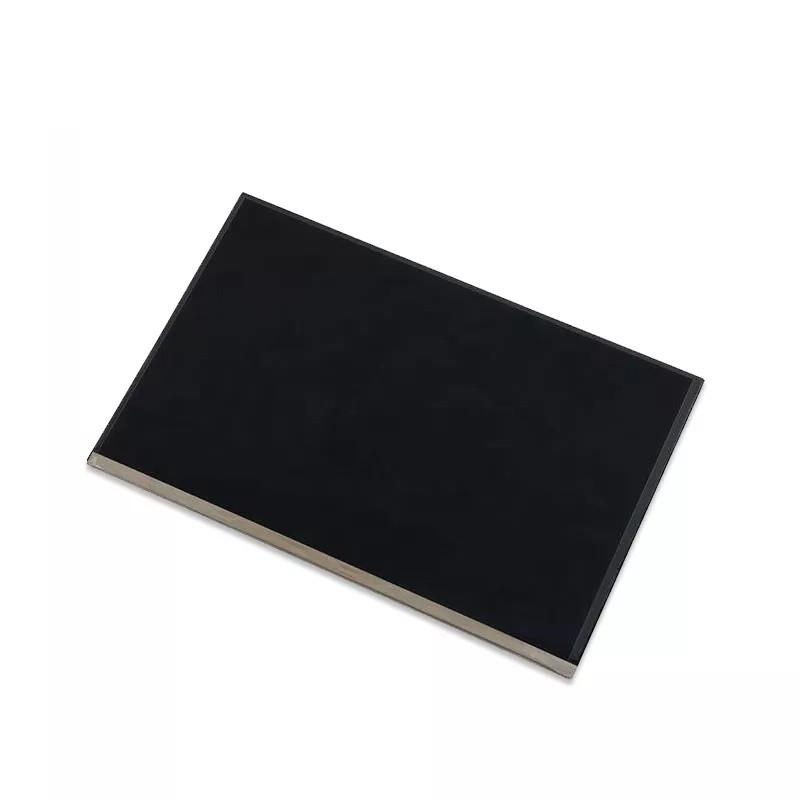

RG101BFH-01 10.1英寸1920x1200TFT LCD模块

  • 产品项目 : RG101BFH-01
  • 类别: 10.1英寸 LCD
  • 分辨率: 1920*(RGB)*1200
  • 亮度: 300nits

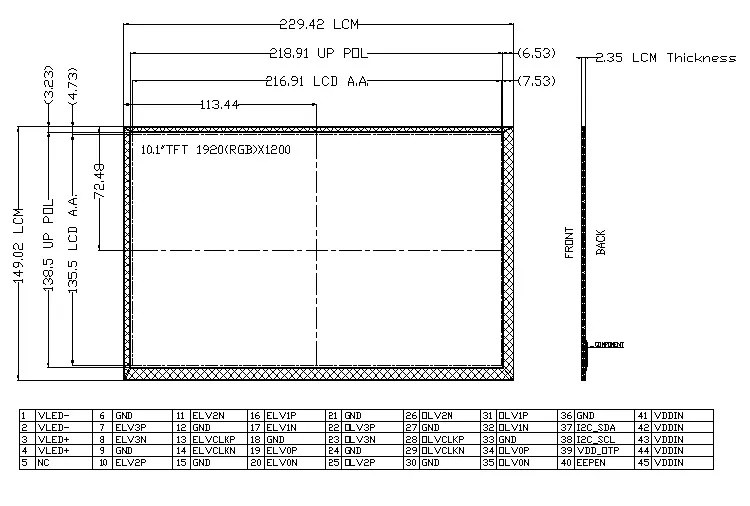

  • LCM (W * H * D): 229.42*149.02*2.35mm
  • LCM驱动IC: HX8290B
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 10.1 inch
Resolution 1920 X 1200 dots
Pixel pitch 0.2175(H)*0.2088(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 300 cd/m2
LCM (W * H * D) 229.42 X 149.02 X 2.35 mm
Active Area (W * H ) 216.91 X 135.50 mm
With /Without TP Without TP -
LED Numbers 6S6P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+85
Interface LVDS/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
LCM Driver IC HX8290B -
