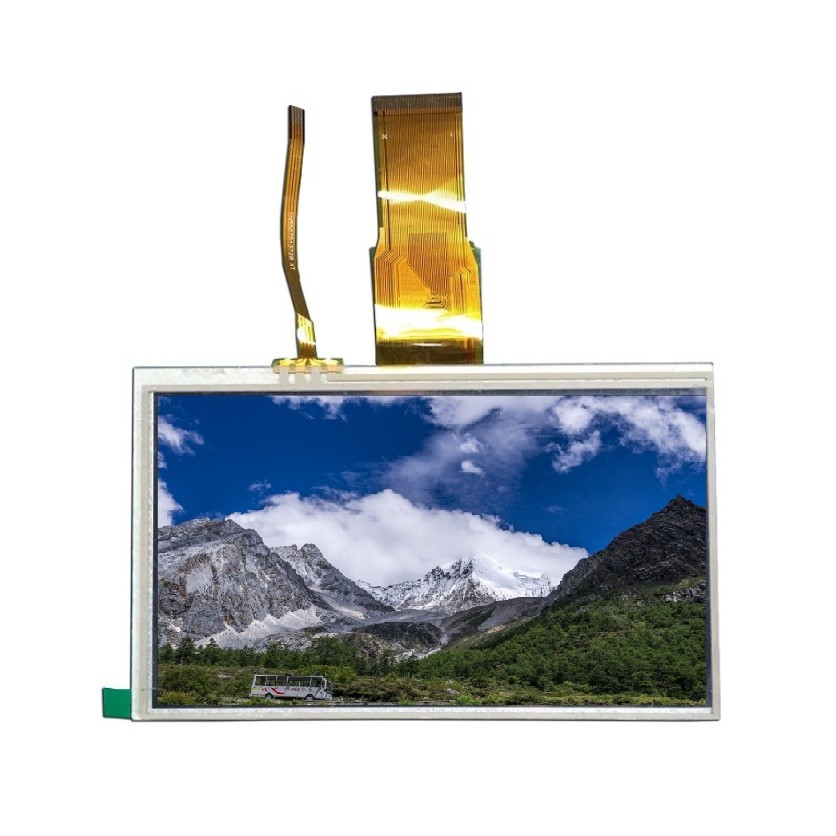

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD Rg070cqt-01r 7英寸TFT LCD模块 800x480 320nit
| Item | Contents |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 164.90*99.8*7.0 MM |
| ACTIVE SIZE (W*H) | 154.08*85.92 MM |
| PIXEL PITCH (W*H) | 0.1926*0.1790 MM |
| NUMBER OF DOTS | 800*480 |
| DIVER IC | EK9713+EK73002 |
| INTERFACE TYPE | 24-BIT RGB |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 12 O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 O'CLOCK |
| COLORS | 16.7M |
| BACKLIGHT TYPE | 21-LED WHITE |
| TOUCH PANEL TYPE | RESISTIVE |
