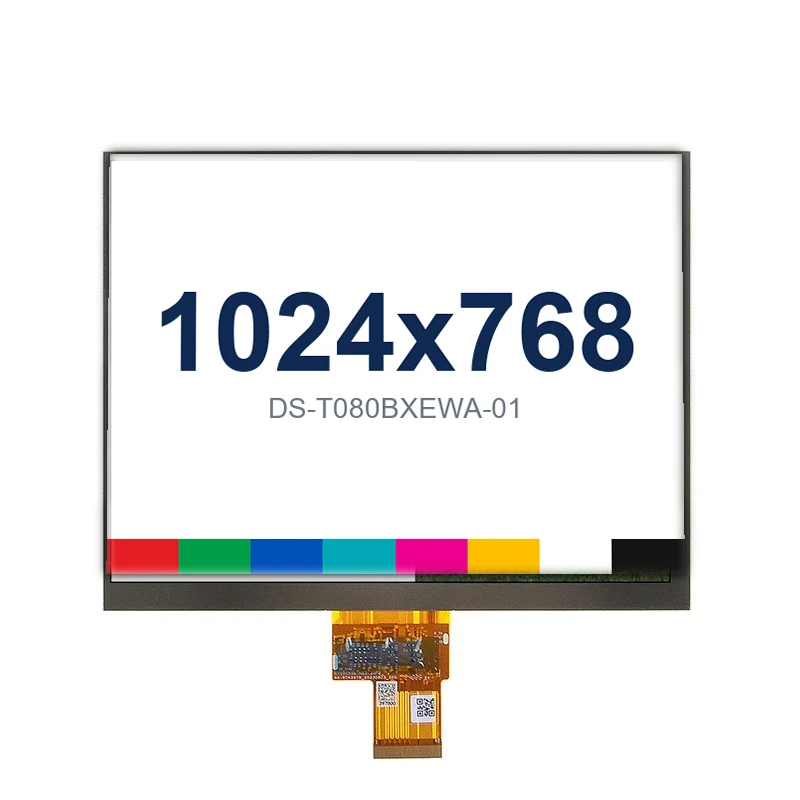

DS-T080BXEWA-01 — 8.0″ 1024x768 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
Wide-temperature, automotive-grade module for vehicle displays, fuel dispensers and harsh-environment equipment.
8.0"1024x768IPS300 cd/m²Without touch
| DISEA P/N | DS-T080BXEWA-01 |
|---|---|
| Display Size | 8.0 inch |
| Resolution | 1024x768 |
| LCD Type / Shape | IPS |
| Luminance | 300 cd/m² |
| Module Interface | LVDS 6/8bit 40PIN |
| LCD Driver IC | JD9165A |
| Touch Option | Without touch |
| Active Area (mm) | 162.05x121.54 |
| Outline Dim. (mm) | 174.00x136.00x2.60 |
| Operating Temp. (°C) | -30-80 |
| Storage Temp. (°C) | -30-80 |
