3.5 Inch TFT LCD Modules — Specs, Interfaces & OEM Options
3.5″ TFT LCD modules from RONEN: 23 standard models, resolutions from 240x320 to 800x600, brightness 250–1200 cd/m², touch options: no touch, resistive (RTP), capacitive (CTP). All modules are built in our 23,700㎡ ISO 9001:2015 factory and samples ship in 3–7 working days. Browse the models below or ask for a quote.
- Resolutions available: 240x320 / 320x240 / 320x480 / 480x640 / 640x480 / 800x600
- Touch: no touch, resistive (RTP), capacitive (CTP)
- Brightness 250–1200 cd/m² — sunlight-readable options up to 1500 cd/m²
- OEM/ODM standard range available — Standard in-stock models on standard models, 5+ year supply continuity
Common applications for this size: handheld terminals & barcode scanners, industrial HMI & PLC control panels, POS & payment terminals, home appliance control panels.
23 standard models in this family
RG-T035BQSA-01
RG-T035SHI-01
RG-T035BHSA-01
RG-T035BHSA-01P
RG-T035QHI-28
RG-T035QHI-03CP
RG-T035SLH-01ND
RG-T035GLH-01
RG-T035GLH-01P
RG-T035GLH-01CA
RG-T035GLH-02
RG-T035GLH-02P
RG-T035GLH-02CA
RG-T035HLS-01
RG-T035HLS-01CP
RG-T035HLS-02
RG-T035HLWSA-01
RG-T035SGV-01
RG-T035SGV-01CP
RG-T035TGH-01
RG-T035GCIA-02
RG-T035HLSWA-01
RG-T035SLH-01PD
Specifications
| RONEN P/N | Resolution | Luminance (cd/m²) | Module Interface | Touch Option | Operating Temp. (°C) |
|---|---|---|---|---|---|
| RG-T035BQSA-01 | 240x320 | 300 | RGB/MCU/SPI 50PIN | Without touch | -20-70 |
| RG-T035BHSA-01 | 320x480 | 320 | RGB/MCU/SPI 50PIN | Without touch | -20-70 |
| RG-T035BHSA-01P | 320x480 | 250 | RGB/MCU/SPI 50PIN | RTP | -20-70 |

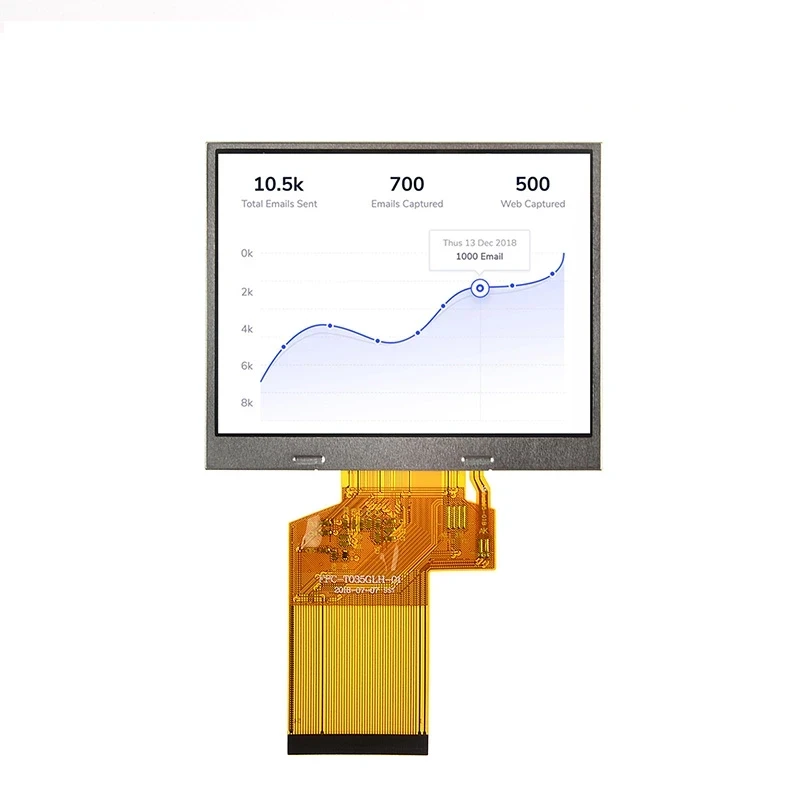

| RG-T035GLH-01 | 320x240 | 350 | RGB 24bit 54PIN | Without touch | -20-70 |
| RG-T035GLH-01CA | 320x240 | 280 | RGB 24bit 54PIN | CTP | -20-70 |
| RG-T035GLH-01P | 320x240 | 280 | RGB 24bit 54PIN | RTP | -20-70 |
| RG-T035GLH-02 | 320x240 | 700 | RGB 24bit 54PIN | Without touch | -20-70 |
| RG-T035GLH-02CA | 320x240 | 700 | RGB 24bit 54PIN | CTP | -20-70 |
| RG-T035GLH-02P | 320x240 | 650 | RGB 24bit 54PIN | RTP | -20-70 |
| RG-T035HLS-01 | 320x240 | 300 | RGB888 54PIN | Without touch | -20-70 |
| RG-T035HLS-01CP | 320x240 | 300 | RGB 24bit 54PIN | CTP | -20-70 |
| RG-T035HLS-02 | 320x240 | 900 | RGB 24bit 54PIN | Without touch | -20-70 |
| RG-T035HLSWA-01 | 320x240 | 1200 | RGB 24BIT | Without touch | -30-85 |
| RG-T035HLWSA-01 | 320x240 | 900 | RGB 24bit 54PIN | Without touch | -30-85 |
| RG-T035QHI-03CP | 320x480 | 300 | RGB/MCU/SPI 50PIN | CTP | -20-70 |
| RG-T035QHI-28 | 320x480 | 650 | RGB/MCU/SPI 40PIN | Without touch | -20-70 |
| RG-T035SHI-01 | 320x480 | 330 | RGB 18bit 39PIN | Without touch | -20-70 |
| RG-T035SLH-01ND | 320x240 | 320 | RGB 24bit 54PIN | Without touch | -20-70 |
| RG-T035SLH-01PD | 320x240 | 250 | 24BIT RGB | RTP | -20-70 |
| RG-T035GCIA-02 | 480x640 | 900 | MIPI | Without touch | -20-70 |
| RG-T035SGV-01 | 640x480 | 400 | RGB 24bit 54PIN | Without touch | -20-70 |
| RG-T035SGV-01CP | 640x480 | 320 | RGB 24bit 54PIN | CTP | -20-70 |
| RG-T035TGH-01 | 800x600 | 250 | RGB 24bit 50PIN | Without touch | -20-70 |
Can’t find the exact model you need?
This is a standard model, and our online catalog shows only part of what we build. We hold additional models not listed here, and we can adjust brightness, interface, touch or outline within an existing product family, or evaluate a fully custom solution. If this model does not fully match your requirements, please email your specifications to sales@odmlcd.com. We’ll help you identify the right part or assess a custom option.
FAQ — 3.5″ TFT LCD modules
What resolutions are available in 3.5 inch?
RONEN lists 23 standard 3.5″ modules covering 240x320 / 320x240 / 320x480 / 480x640 / 640x480 / 800x600. All are kept in stock for samples and ship in 3–7 working days.
Is a touch option available in 3.5 inch?
Yes. Touch options available in this size: resistive (RTP), capacitive (CTP). Touch models bond the TFT panel to the touch panel (air-bonded or optically bonded); send us your controller type (I2C / USB) and we match the CTP driver IC.
How bright are 3.5 inch TFT LCD modules?
This size spans 250–1200 cd/m² across the range. Models at the upper end are sunlight-readable and suit outdoor or high-ambient-light equipment.
