0.96 Inch TFT LCD Modules — Specs, Interfaces & OEM Options

0.96″ TFT LCD modules from RONEN: 1 standard models, resolutions from 80x160 to 80x160, brightness 200–200 cd/m², touch options: no touch. All modules are built in our 23,700㎡ ISO 9001:2015 factory and samples ship in 3–7 working days. Browse the models below or ask for a quote.

Resolutions available: 80x160
Touch: no touch
Brightness 200–200 cd/m²
OEM/ODM standard range available — Standard in-stock models on standard models, 5+ year supply continuity

Common applications for this size: wearable devices, smartwatches, handheld measuring instruments, audio devices & control knobs.

1 standard models in this family

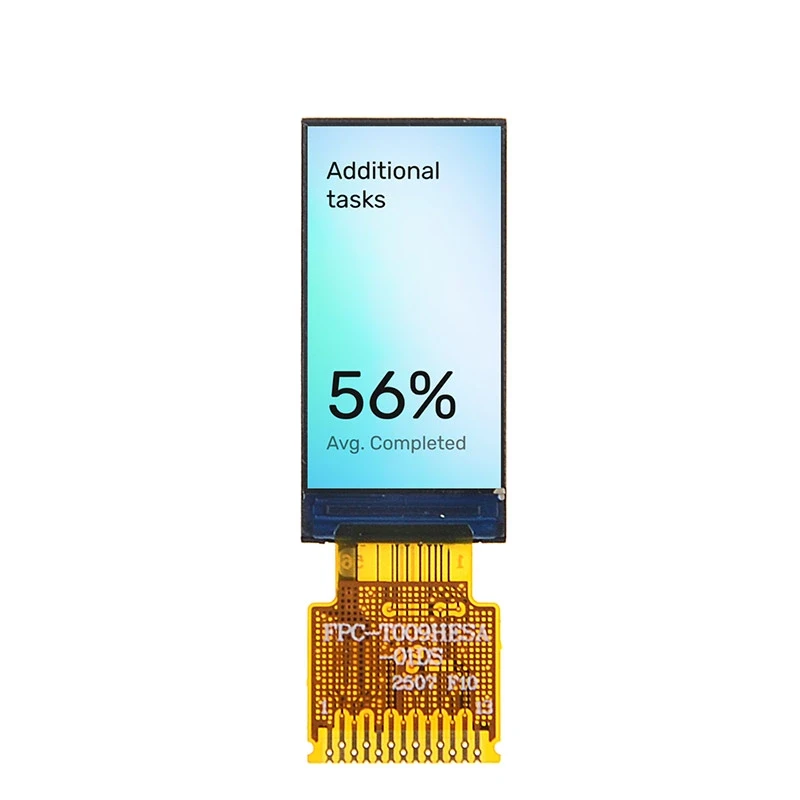

RG-T009HESA-01

0.96"80x160IPS

Back to All 190+ Models

Specifications

RONEN P/N	Resolution	Luminance (cd/m²)	Module Interface	Touch Option	Operating Temp. (°C)
RG-T009HESA-01	80x160	200	SPI	Without touch	-20-70

Can’t find the exact model you need?

This is a standard model, and our online catalog shows only part of what we build. We hold additional models not listed here, and we can adjust brightness, interface, touch or outline within an existing product family, or evaluate a fully custom solution. If this model does not fully match your requirements, please email your specifications to sales@odmlcd.com. We’ll help you identify the right part or assess a custom option.

Request Datasheet & Quote Get a Quote

FAQ — 0.96″ TFT LCD modules

What resolutions are available in 0.96 inch?

RONEN lists 1 standard 0.96″ modules covering 80x160. All are kept in stock for samples and ship in 3–7 working days.

Is a touch option available in 0.96 inch?

The 0.96″ range is supplied without a touch panel — at this size the display is normally driven by buttons, a rotary encoder or a host-side touch layer. If you need touch, ask us about a custom assembly.

How bright are 0.96 inch TFT LCD modules?

This size spans 200–200 cd/m² across the range. For outdoor or high-ambient-light use we can supply a sunlight-readable version up to 1500 cd/m² (custom build).

Other standard sizes: 0.96″ · 1.3″ · 2.8″ · 3.5″ · 4.3″ · 5.0″ · 7.0″ · 8.0″ · 10.1″ · 15.0″ · 15.6″ · 21.5″ · size & resolution finder

Where 0.96 Inch Panels Earn Their Place

A 0.96 inch diagonal suits devices where the display is a status window rather than the main interaction surface: wearable bands, portable medical readers, handheld meters, and small appliances. At this size the goal is a crisp icon and a few legible characters, not a full GUI.

Interface choice: SPI vs MCU

SPI keeps pin count low and pairs with modest microcontrollers, which is why most 0.96 inch modules ship SPI or I2C. When the UI needs faster redraws, an MCU-8080 or RGB interface moves more pixels per second at the cost of more host pins and a wider flex tail.

Readability at arm's length

Common resolutions such as 80x160 or 128x64 render short labels cleanly. Keep fonts large, contrast high, and avoid dense tables; the eye reads a small panel from a short distance, so every wasted pixel hurts.

Power and lifecycle

Small TFTs draw little current, but the backlight dominates the budget; dimming or ambient-light control extends battery life. Because these parts sit in long-lived products, RONEN keeps selected standard 0.96 inch models in production beyond 5 years and documents continuity in writing.

Frequently Asked Questions

What are 0.96 inch TFT LCD modules used for?

They suit status displays in wearables, portable medical readers, handheld meters, and small appliances where a few crisp characters or an icon matter more than a full GUI.

Which interface should I pick for a 0.96 inch TFT?

SPI or I2C keeps pin count low for small microcontrollers; choose MCU-8080 or RGB only when the UI needs faster redraws and your board has the spare pins.

How long will a 0.96 inch model stay available?

RONEN keeps selected standard 0.96 inch models in production beyond 5 years and confirms continuity in writing, the baseline every long-life product should require.

Can a 0.96 inch TFT show readable text?

Yes. At 80x160 or 128x64 with large fonts and high contrast, short labels and icons stay legible at the typical viewing distance.
