7.0 Inch TFT LCD Modules — Specs, Interfaces & OEM Options
7.0″ TFT LCD modules from RONEN: 40 standard models, resolutions from 280x1424 to 1280x800, brightness 200–1000 cd/m², touch options: no touch, resistive (RTP), capacitive (CTP). All modules are built in our 23,700㎡ ISO 9001:2015 factory and samples ship in 3–7 working days. Browse the models below or ask for a quote.
- Resolutions available: 280x1424 / 800x480 / 1024x600 / 1080x1080 / 1280x800
- Touch: no touch, resistive (RTP), capacitive (CTP)
- Brightness 200–1000 cd/m² — sunlight-readable options up to 1500 cd/m²
- OEM/ODM standard range available — Standard in-stock models on standard models, 5+ year supply continuity
Common applications for this size: medical devices (monitors, infusion pumps), automotive dashboards & clusters, industrial HMI & PLC control panels, smart home & building control, kiosks & self-service terminals.
40 standard models in this family
RG-T070BUSA-01
RG-T070SWH-83
RG-T070BWE-14ND
RG-T070QWE-01ND
RG-T070QWE-01PD
RG-T070QWE-01AD
RG-T070QWE-03ND
RG-T070SWH-19
RG-T070QWE-02ND
RG-T070BWE-44ND
RG-T070QWHW-01
RG-T070QWHW-01P
RG-T070QWHW-01CA
RG-T070QWHW-02
RG-T070QWHW-02P
RG-T070QWHW-02CA
RG-T070QWHW-03CA
RG-T070KWSA-01
RG-T070KWSA-01CA
RG-T070KWSA-01CP
RG-T070MWRA-01
RG-T070SWHWA-01
RG-T070SWHWA-02
RG-T070QAE-01ND
RG-T070BAHA-01
RG-T070BAHA-01CA
RG-T070BAHA-01CP
RG-T070BAHA-01-B2
RG-T070BAHA-03
RG-T070BAHA-03P
RG-T070BAHA-03CA
RG-T070BAHA-03CP

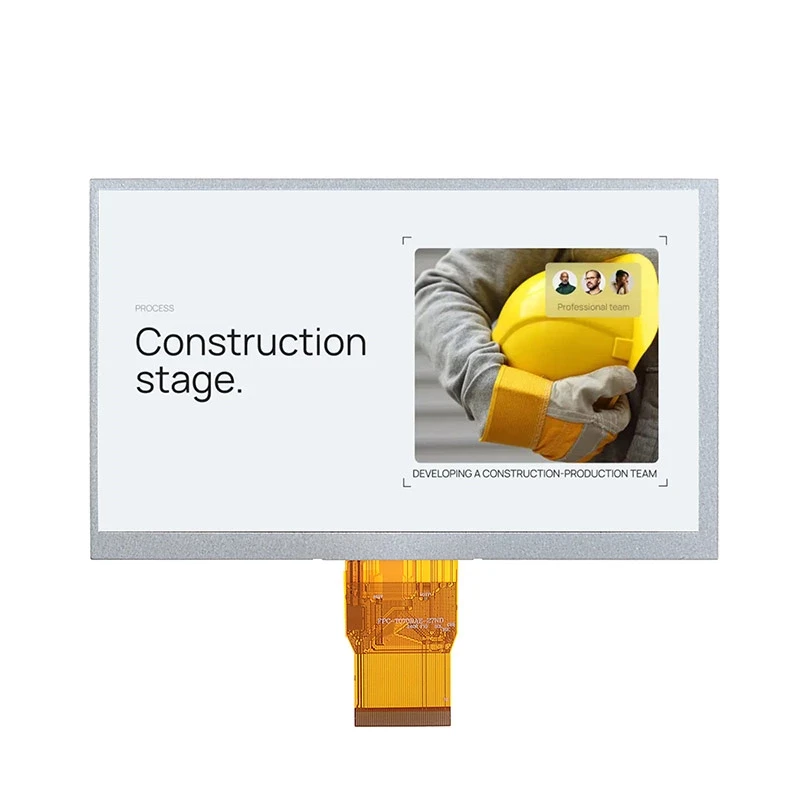

RG-T070BAEA-27ND
RG-T070TOSA-01
RG-T070BAE-32
RG-T070BAHA-02
RG-T070BAHA-04
RG-T070BAHA-19CA
RG-T070MAIA-01
RG-T070TISA-01
Specifications
| RONEN P/N | Resolution | Luminance (cd/m²) | Module Interface | Touch Option | Operating Temp. (°C) |
|---|---|---|---|---|---|
| RG-T070BUSA-01 | 280x1424 | 350 | 4 LANE MIPI 40PIN | Without touch | -20-70 |
| RG-T070BWE-14ND | 800x480 | 300 | RGB 24bit 50PIN Short FPC | Without touch | -20-55 |

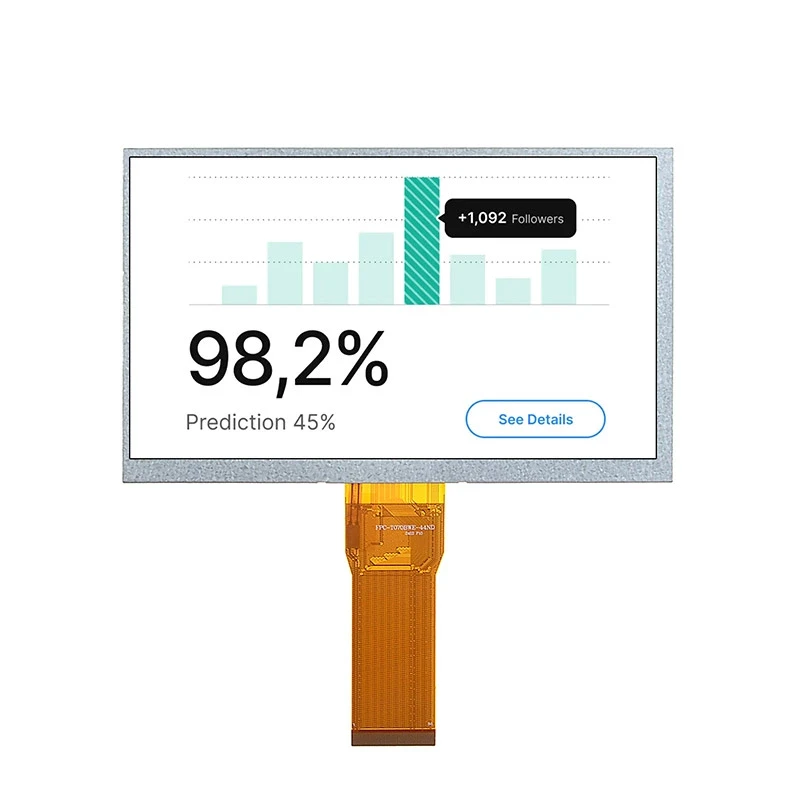

| RG-T070BWE-44ND | 800x480 | 300 | RGB 24bit 50PIN Long FPC | Without touch | -20-55 |
| RG-T070KWSA-01 | 800x480 | 500 | RGB 24bit 50PIN Short FPC | Without touch | -20-70 |
| RG-T070KWSA-01CA | 800x480 | 430 | RGB 24bit 50PIN Short FPC | CTP | -20-70 |
| RG-T070KWSA-01CP | 800x480 | 450 | RGB 24bit 50PIN Short FPC | CTP | -20-70 |
| RG-T070MWRA-01 | 800x480 | 400 | RGB 18bit 40PIN | Without touch | -20-70 |
| RG-T070QWE-01AD | 800x480 | 250 | RGB 24bit 50PIN Short FPC | CTP | -20-70 |
| RG-T070QWE-01ND | 800x480 | 300 | RGB 24bit 50PIN Short FPC | Without touch | -20-70 |

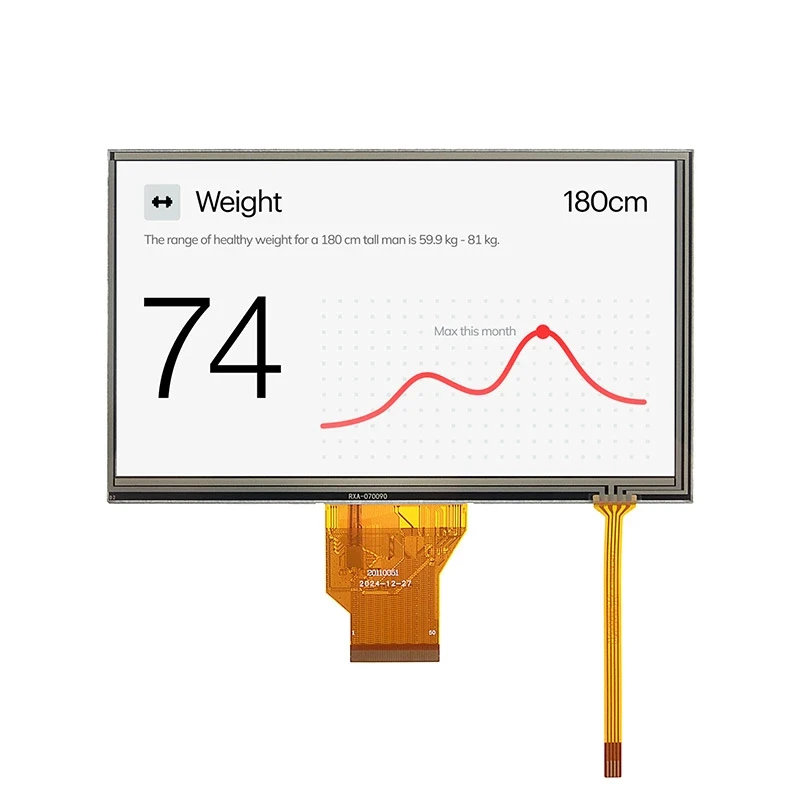

| RG-T070QWE-01PD | 800x480 | 250 | RGB 24bit 50PIN Short FPC | RTP | -20-70 |
| RG-T070QWE-02ND | 800x480 | 300 | RGB 24bit 50PIN Long FPC | Without touch | -20-70 |

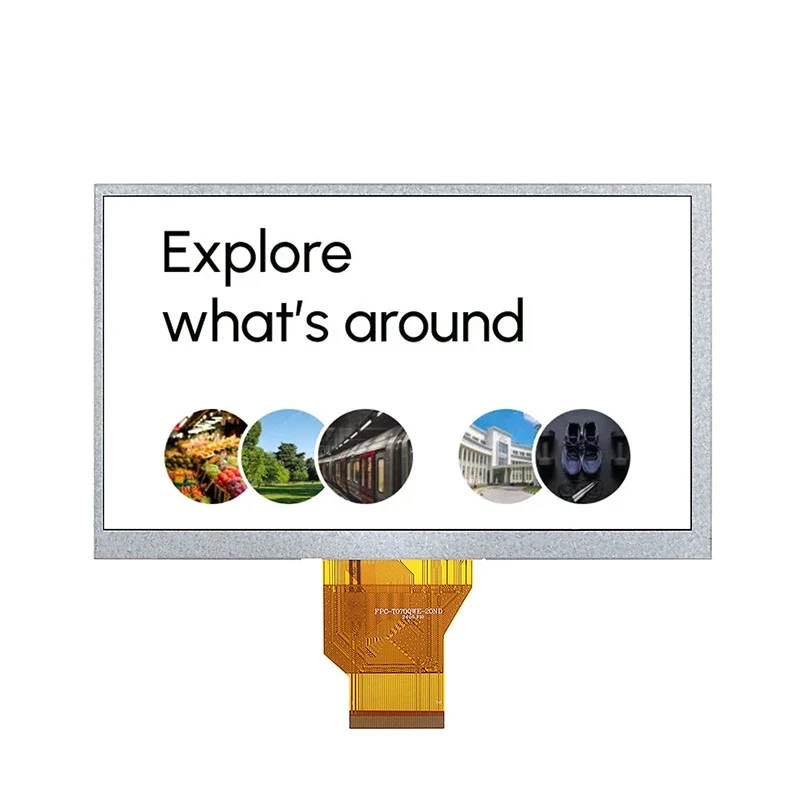

| RG-T070QWE-03ND | 800x480 | 300 | RGB 24bit 50PIN Short FPC | Without touch | -20-70 |
| RG-T070QWHW-01 | 800x480 | 550 | RGB 24bit 50PIN Long FPC | Without touch | -30-85 |
| RG-T070QWHW-01CA | 800x480 | 500 | RGB 24bit 50PIN Long FPC | CTP | -30-85 |
| RG-T070QWHW-01P | 800x480 | 480 | RGB 24bit 50PIN Long FPC | RTP | -30-85 |
| RG-T070QWHW-02 | 800x480 | 1000 | RGB 24bit 50PIN Long FPC | CTP | -30-85 |
| RG-T070QWHW-02CA | 800x480 | 850 | RGB 24bit 50PIN Long FPC | CTP | -30-85 |
| RG-T070QWHW-02P | 800x480 | 850 | RGB 24bit 50PIN Long FPC | RTP | -30-85 |
| RG-T070QWHW-03CA | 800x480 | 400 | RGB 24bit 50PIN Long FPC | CTP | -30-85 |
| RG-T070SWH-19 | 800x480 | 800 | RGB 24bit 50PIN Short FPC | Without touch | -20-70 |
| RG-T070SWH-83 | 800x480 | 350 | RGB 24bit 50PIN | Without touch | -20-70 |
| RG-T070SWHWA-01 | 800x480 | 1000 | LVDS 6/8bit 20PIN | Without touch | -30-85 |
| RG-T070SWHWA-02 | 800x480 | 500 | LVDS 6/8bit 20PIN | Without touch | -30-85 |
| RG-T070BAE-32 | 1024x600 | 200 | RGB | Without touch | -20-70 |
40 models in total — the complete list follows below.
Can’t find the exact model you need?
This is a standard model, and our online catalog shows only part of what we build. We hold additional models not listed here, and we can adjust brightness, interface, touch or outline within an existing product family, or evaluate a fully custom solution. If this model does not fully match your requirements, please email your specifications to sales@odmlcd.com. We’ll help you identify the right part or assess a custom option.
FAQ — 7.0″ TFT LCD modules
What resolutions are available in 7.0 inch?
RONEN lists 40 standard 7.0″ modules covering 280x1424 / 800x480 / 1024x600 / 1080x1080 / 1280x800. All are kept in stock for samples and ship in 3–7 working days.
Is a touch option available in 7.0 inch?
Yes. Touch options available in this size: resistive (RTP), capacitive (CTP). Touch models bond the TFT panel to the touch panel (air-bonded or optically bonded); send us your controller type (I2C / USB) and we match the CTP driver IC.
How bright are 7.0 inch TFT LCD modules?
This size spans 200–1000 cd/m² across the range. Models at the upper end are sunlight-readable and suit outdoor or high-ambient-light equipment.
