10.1 Inch TFT LCD Modules — Specs, Interfaces & OEM Options
10.1″ TFT LCD modules from RONEN: 15 standard models, resolutions from 800x1280 to 1920x1200, brightness 300–1200 cd/m², touch options: no touch, resistive (RTP), capacitive (CTP). All modules are built in our 23,700㎡ ISO 9001:2015 factory and samples ship in 3–7 working days. Browse the models below or ask for a quote.
- Resolutions available: 800x1280 / 1024x600 / 1280x800 / 1920x1200
- Touch: no touch, resistive (RTP), capacitive (CTP)
- Brightness 300–1200 cd/m² — sunlight-readable options up to 1500 cd/m²
- OEM/ODM standard range available — Standard in-stock models on standard models, 5+ year supply continuity
Common applications for this size: kiosks & self-service terminals, digital signage & information displays, medical devices (monitors, infusion pumps), industrial HMI & PLC control panels, smart home & building control.
15 standard models in this family
RG-T101BYEA-01ND
RG-T101BAE-01ND
RG-T101BAE-01PD
RG-T101BAH-01
RG-T101BAHA-01
RG-T101BAHA-02CP
RG-T101BAHA-02ND
RG-T101BIHA-01
RG-T101HIEWA-01
RG-T101HIEWA-01CP
RG-T101HIEWA-03
RG-T101HIEWA-04
RG-T101QIHA-01CA-B
RG-T101BFHA-01
RG-T101BAHA-02CD
Specifications
| RONEN P/N | Resolution | Luminance (cd/m²) | Module Interface | Touch Option | Operating Temp. (°C) |
|---|---|---|---|---|---|
| RG-T101BYEA-01ND | 800x1280 | 300 | 4 LANE MIPI 31PIN | Without touch | -30-80 |
| RG-T101BAE-01ND | 1024x600 | 530 | RGB 24bit 50PIN | Without touch | -20-70 |
| RG-T101BAE-01PD | 1024x600 | 450 | RGB 24bit 50PIN | RTP | -20-70 |
| RG-T101BAH-01 | 1024x600 | 380 | LVDS 6/8bit 40PIN | Without touch | -20-70 |
| RG-T101BAHA-01 | 1024x600 | 500 | LVDS 6/8bit 40PIN | Without touch | -20-70 |
| RG-T101BAHA-02CD | 1024x600 | 320 | 24BIT RGB | CTP | -20-70 |
| RG-T101BAHA-02CP | 1024x600 | 420 | LVDS 6/8bit 40PIN | CTP | -20-70 |

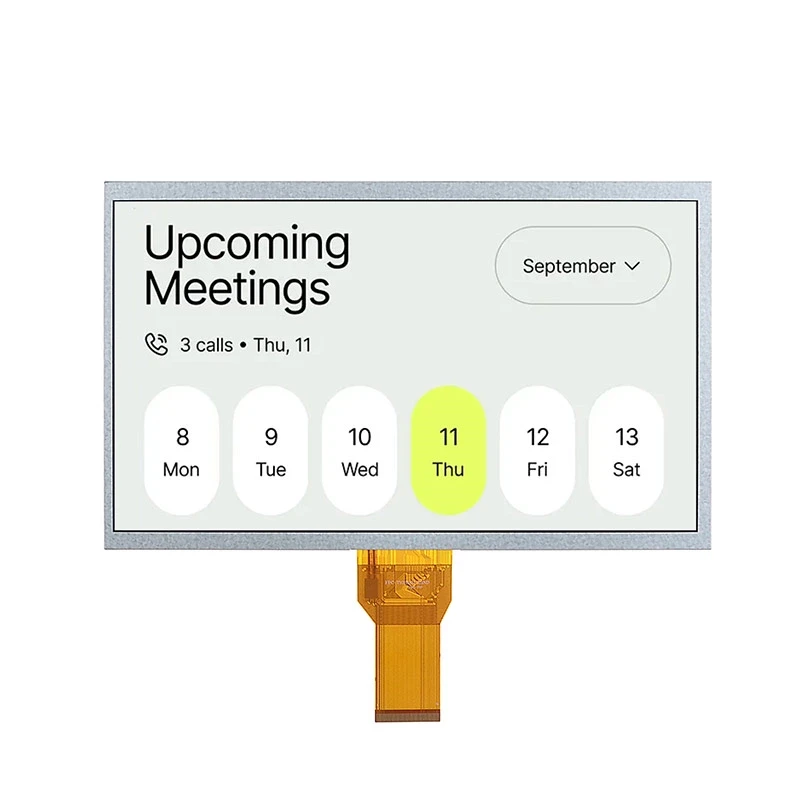

| RG-T101BAHA-02ND | 1024x600 | 400 | RGB 24bit 50PIN | Without touch | -20-70 |
| RG-T101BIHA-01 | 1280x800 | 330 | 8BIT LVDS 40PIN | Without touch | -20-70 |

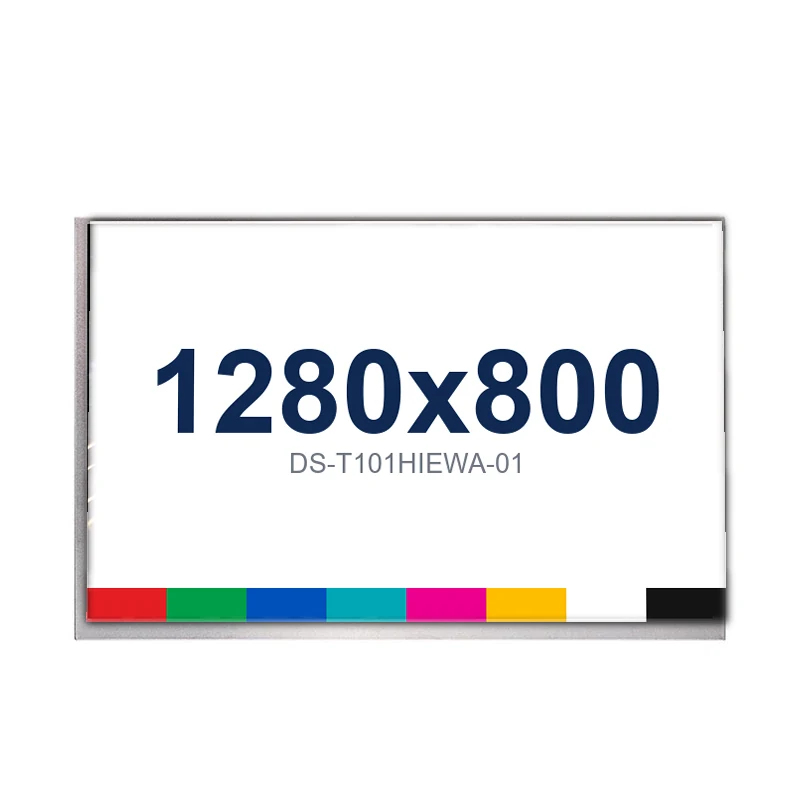

| RG-T101HIEWA-01 | 1280x800 | 1000 | LVDS 6/8bit 40PIN | Without touch | -30-85 |
| RG-T101HIEWA-01CP | 1280x800 | 850 | LVDS 6/8bit 40PIN | CTP | -30-85 |
| RG-T101HIEWA-03 | 1280x800 | 1000 | LVDS 6/8bit 40PIN | Without touch | -30-80 |
| RG-T101HIEWA-04 | 1280x800 | 500 | LVDS 6/8bit 40PIN | Without touch | -30-80 |
| RG-T101QIHA-01CA-B | 1280x800 | 300 | HDMI 19PIN CTP | CTP | -20-70 |

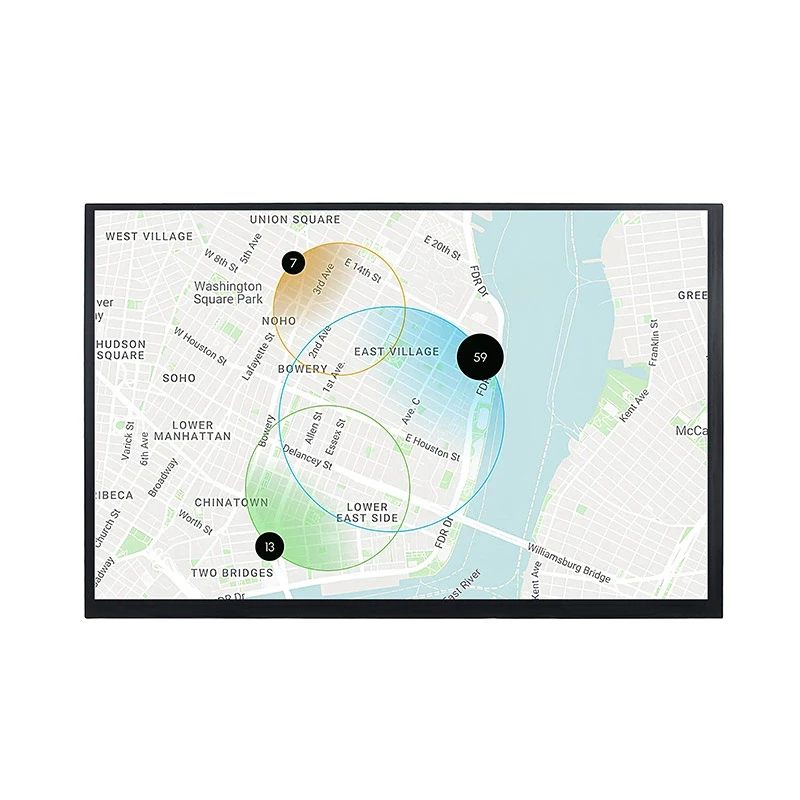

| RG-T101BFHA-01 | 1920x1200 | 1200 | LVDS 2CHANNEL 8BIT 45PIN | Without touch | -20-70 |
Can’t find the exact model you need?
This is a standard model, and our online catalog shows only part of what we build. We hold additional models not listed here, and we can adjust brightness, interface, touch or outline within an existing product family, or evaluate a fully custom solution. If this model does not fully match your requirements, please email your specifications to sales@odmlcd.com. We’ll help you identify the right part or assess a custom option.
FAQ — 10.1″ TFT LCD modules
What resolutions are available in 10.1 inch?
RONEN lists 15 standard 10.1″ modules covering 800x1280 / 1024x600 / 1280x800 / 1920x1200. All are kept in stock for samples and ship in 3–7 working days.
Is a touch option available in 10.1 inch?
Yes. Touch options available in this size: resistive (RTP), capacitive (CTP). Touch models bond the TFT panel to the touch panel (air-bonded or optically bonded); send us your controller type (I2C / USB) and we match the CTP driver IC.
How bright are 10.1 inch TFT LCD modules?
This size spans 300–1200 cd/m² across the range. Models at the upper end are sunlight-readable and suit outdoor or high-ambient-light equipment.
