RG-T015BOSA-01 — 1.54″ 320x320 IPS Square TFT LCD Module
Ultra-compact module for wearable devices, medical handheld instruments and IoT sensor nodes.
| RONEN P/N | RG-T015BOSA-01 |
|---|---|
| Display Size | 1.54 inch |
| Resolution | 320x320 |
| LCD Type / Shape | IPS Square |
| Luminance | 380 cd/m² |
| Module Interface | 1 LANE MIPI 14PIN |
| LCD Driver IC | ST7796 |
| Touch Option | Without touch |
| Active Area (mm) | 27.744x27.744 |
| Outline Dim. (mm) | 31.52x33.72x1.45 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Frequently asked questions about RG-T015BOSA-01
What is the MOQ for RG-T015BOSA-01?
Zero MOQ — RG-T015BOSA-01 ships from a single piece. It is a standard RONEN module held permanently in stock in Guangdong.
Is RG-T015BOSA-01 in stock, and how fast can it ship?
Yes. Samples ship within 48 hours and bulk orders typically within 7–15 days, ex-works Guangdong. Stock status is shown on this page.
Can RG-T015BOSA-01 be customized?
Yes. FPC outline, connector, backlight brightness, touch panel (resistive or capacitive) and driver-board interface can all be customized. Ask our team for the minimum quantity of your option.
How long will RG-T015BOSA-01 stay in supply?
RG-T015BOSA-01 is covered by RONEN's lifetime-supply commitment: 5–8 years of continuous supply as standard, and a pin-compatible successor is proposed if the panel is ever revised.
How do I get the datasheet and a test sample?
Submit the RFQ form on this page — you receive the specification sheet (PDF), pricing and engineering support within one business day.
Similar Modules in Under 3 inch

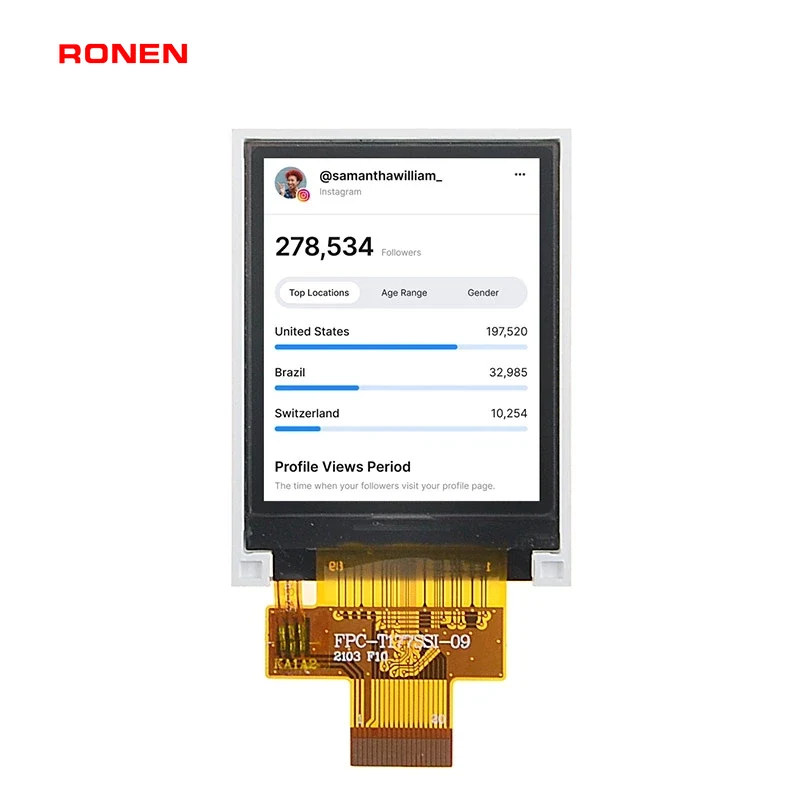

RG-T0177SSI-02

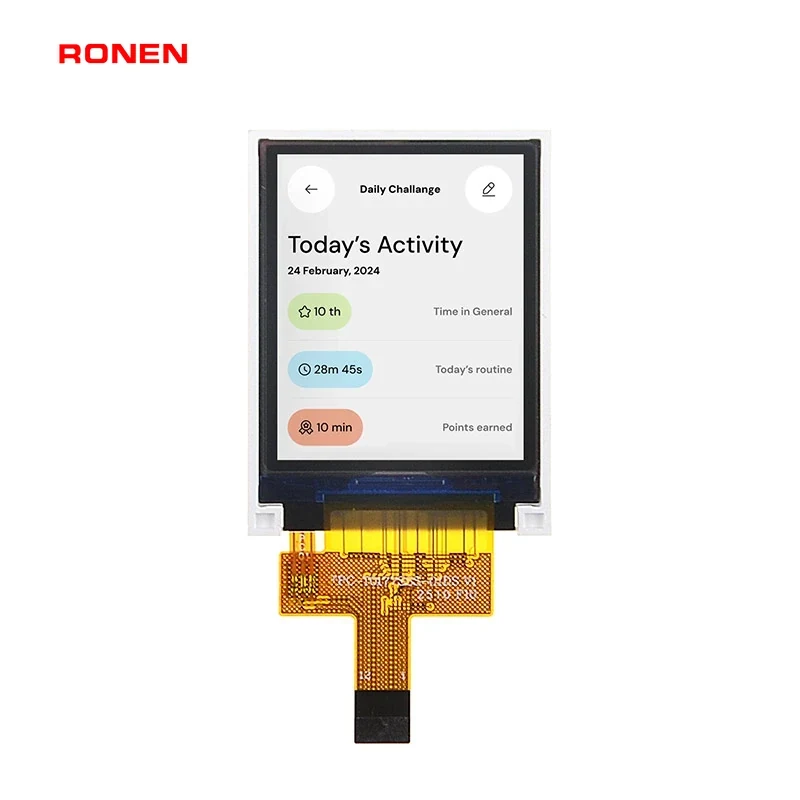

RG-T0177SSS-01
