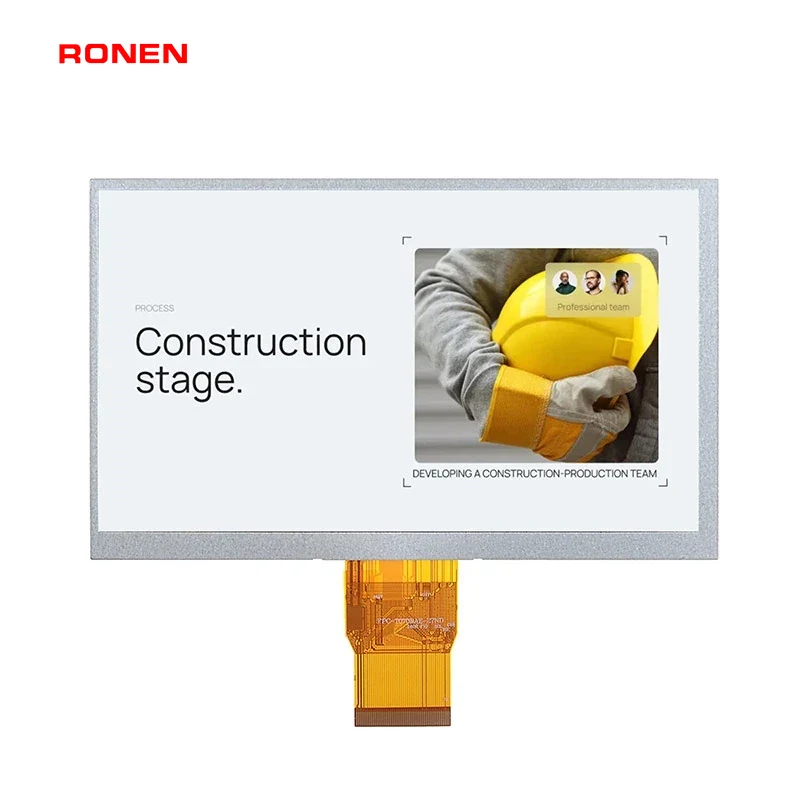

RG-T070BAEA-27ND — 7.0″ 1024x600 TN TFT LCD Module
| RONEN P/N | RG-T070BAEA-27ND |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 1024x600 |
| LCD Type / Shape | TN |
| Luminance | 550 cd/m² |
| Module Interface | RGB 24bit 50PIN |
| LCD Driver IC | JD9165BA |
| Touch Option | Without touch |
| Active Area (mm) | 154.21x85.92 |
| Outline Dim. (mm) | 164.90x100.00x5.60 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Frequently asked questions about RG-T070BAEA-27ND
What is the MOQ for RG-T070BAEA-27ND?
Zero MOQ — RG-T070BAEA-27ND ships from a single piece. It is a standard RONEN module held permanently in stock in Guangdong.
Is RG-T070BAEA-27ND in stock, and how fast can it ship?
Yes. Samples ship within 48 hours and bulk orders typically within 7–15 days, ex-works Guangdong. Stock status is shown on this page.
Can RG-T070BAEA-27ND be customized?
Yes. FPC outline, connector, backlight brightness, touch panel (resistive or capacitive) and driver-board interface can all be customized. Ask our team for the minimum quantity of your option.
How long will RG-T070BAEA-27ND stay in supply?
RG-T070BAEA-27ND is covered by RONEN's lifetime-supply commitment: 5–8 years of continuous supply as standard, and a pin-compatible successor is proposed if the panel is ever revised.
How do I get the datasheet and a test sample?
Submit the RFQ form on this page — you receive the specification sheet (PDF), pricing and engineering support within one business day.
Similar Modules in 5 – 8 inch

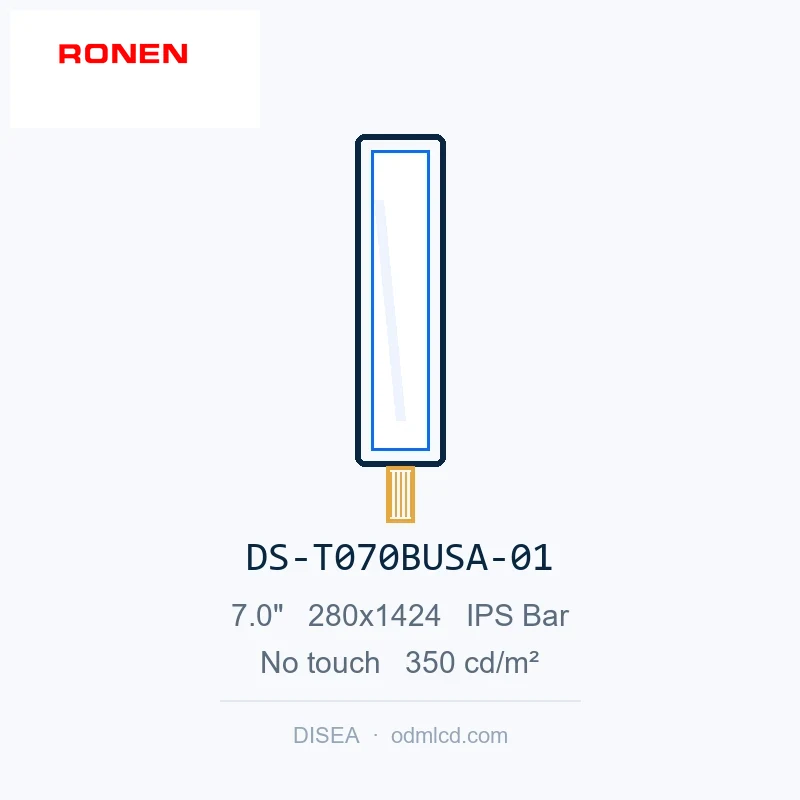

RG-T070BUSA-01

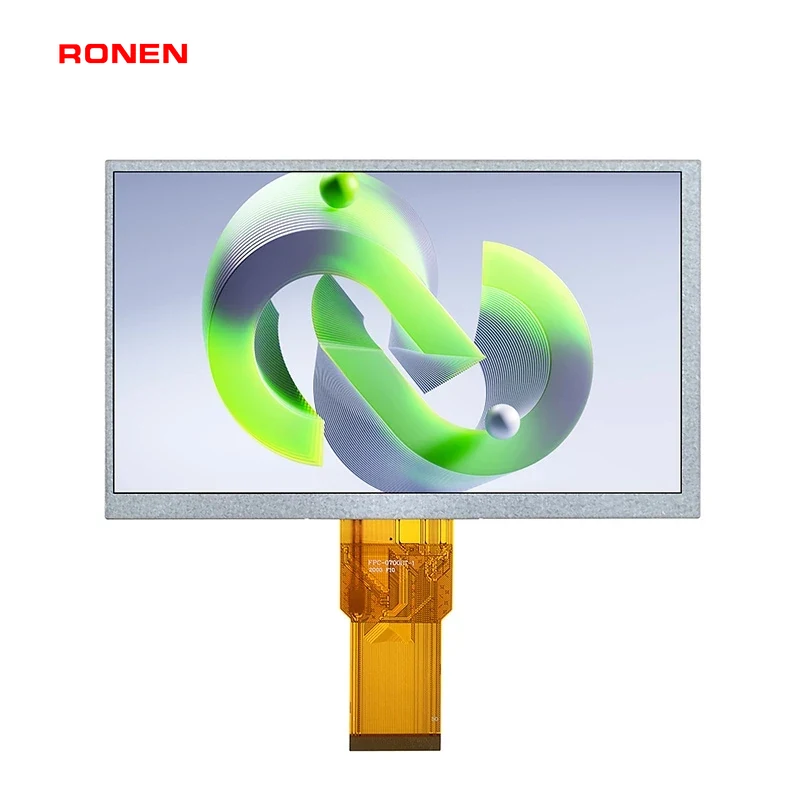

RG-T070SWH-83

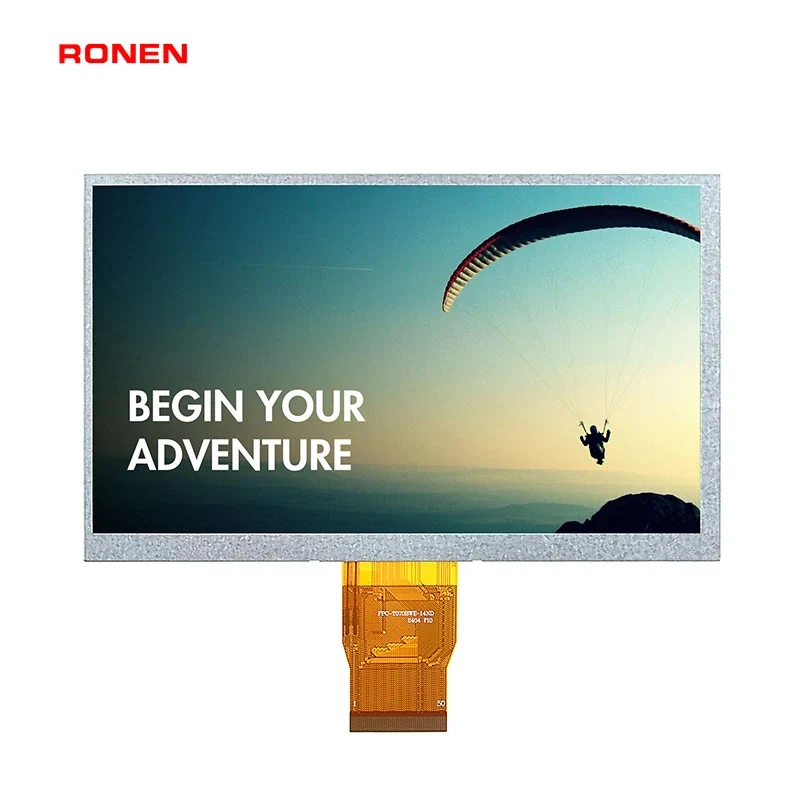

RG-T070BWE-14ND
