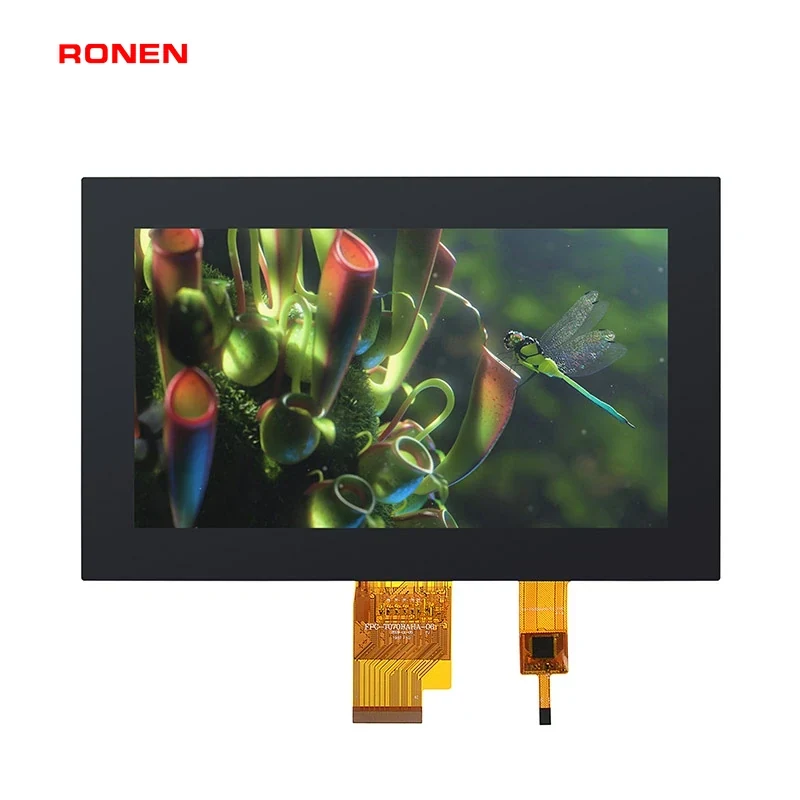

RG-T070BAHA-03CA - 7.0" 1024x600 TN CTP TFT LCD module

RG-T070BAHA-03CA — 7.0″ 1024x600 TN TFT LCD Module

Industrial-grade display module from RONEN’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
7.0"1024x600TN400 cd/m²CTP

2D CAD mechanical drawing: request it by email

RONEN P/NRG-T070BAHA-03CA
Display Size7.0 inch
Resolution1024x600
LCD Type / ShapeTN
Luminance400 cd/m²
Module InterfaceRGB 24bit 50PIN
LCD Driver ICHX8282A11
Touch OptionCapacitive touch panel (CTP)
CTP Driver ICILI2511
Bonding TypeAir Bonding
Active Area (mm)154.21x85.92
Outline Dim. (mm)165.40x100.03x7.60
Operating Temp. (°C)-20 ~ 70
Storage Temp. (°C)-30 ~ 80

Can’t find the exact model you need?

This is a standard model, and our online catalog shows only part of what we build. We hold additional models not listed here, and we can adjust brightness, interface, touch or outline within an existing product family, or evaluate a fully custom solution. If this model does not fully match your requirements, please email your specifications to sales@odmlcd.com. We’ll help you identify the right part or assess a custom option.

Technical overview — what these specifications mean for your design

The table above lists the factory parameters of this module. The notes below explain how each value affects an actual enclosure, firmware and end-product decision, so you can judge fit before requesting a quote.

Panel, resolution and form factor

The panel uses TN; the native resolution is 1024x600.

Active area 154.21x85.92 mm sits inside an outline of 165.40x100.03x7.60 mm — the difference is the bezel, driver area and connector allowance your mechanical drawing must reserve.

Backlight brightness and viewing conditions

Typical luminance is 400 cd/m². That suits indoor products with normal ambient light and semi-outdoor enclosures that avoid direct sun. It is a common specification for meter and instrument panels, and for indoor kiosks with controlled brightness. Direct sunlight would still wash the image out, so outdoor-facing products should consider a high-brightness or sunlight-readable option.

MCU interface and display driver IC

The module is driven over RGB 24bit 50PIN. This is the electrical interface between your MCU and the panel, and it determines two things: how many pins and how much board area your PCB needs, and how fast the screen can be refreshed.

A parallel RGB interface needs more pins and trace count but delivers high throughput, which is appropriate when you need fast frame updates or video.

Display driver IC: HX8282A11. Knowing the driver lets your firmware team pull the correct initialisation sequence and timing parameters — this is the usual starting point when bringing up a new panel.

Touch capability

This configuration includes capacitive touch. It reacts to a conductive finger or stylus behind a cover lens, supports multi-point gestures in most configurations, and needs no pressure. Expect to design a cover lens with a suitable thickness and to include touch firmware from the controller vendor.

Environmental range and storage

Operating temperature is -20 °C to 70 °C — the panel must be within this range during operation. Specify enclosure ventilation and consider thermal rise from electronics inside the housing, because internal temperature can exceed ambient.

Storage range is -30 °C to 80 °C, which matters for shipping, warehousing and unpowered periods — particularly relevant for products shipped through hot climates or stored in containers.

Integration and ordering notes

Every model in this series is held in our standard program, so samples and production volumes ship from the same bin and the specification does not change between them. Lead times, order quantities and commercial terms are confirmed in writing per project.

If your project needs something the standard configuration does not cover — a different interface, touch type, brightness range, backlight life or outline dimension — it is worth asking for a custom quotation. Adjusting an interface or outline within an existing family is usually far cheaper and faster than starting a new module from scratch, and the factory-direct route means you deal with the manufacturer rather than a trading company.

⚲ Compare this moduleOpen the spec comparator with this module pre-loaded — line it up against another part side by side.

Request a quote & datasheet

Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.

  • Supply modelBuilt to order — datasheet & feasibility per project
  • Custom optionOutline / AA / interface / touch / brightness tailored
  • Full datasheet on RFQOutline drawing, pin definition, contrast, viewing angle — per the agreed project plan
  • Lead timeConfirmed with quotation · Factory-direct
  • Warranty12 months against manufacturing defects, long-term supply commitment
Request datasheet (PDF)

Get a quote

We reply once the project scope is confirmed.

Frequently asked questions about RG-T070BAHA-03CA

How are order quantities and supply terms set for RG-T070BAHA-03CA?

RG-T070BAHA-03CA is a standard RONEN module in our standard program, so samples and production volumes ship from the same bin with no specification change between them. Order quantities and commercial terms are confirmed in writing per project — contact sales@odmlcd.com to discuss a supply agreement.

How are supply and delivery schedules confirmed for RG-T070BAHA-03CA?

Yes. Sample and production schedules, quantities and commercial terms are confirmed in writing per project. Please contact sales@odmlcd.com for a written confirmation.

Can RG-T070BAHA-03CA be customized?

Yes. FPC outline, connector, backlight brightness, touch panel (resistive or capacitive) and driver-board interface can all be customized. Ask our team for the minimum quantity of your option.

How long will RG-T070BAHA-03CA stay in supply?

RG-T070BAHA-03CA is covered by RONEN's long-term supply commitment: 5+ years of continuous supply as standard, and a pin-compatible successor is proposed if the panel is ever revised.

How do I get the datasheet and a test sample?

Submit the RFQ form on this page — you will receive the specification sheet (PDF) and engineering support, with commercial terms confirmed in writing per project.
