RG-T101BAE-01PD — 10.1″ 1024x600 TN TFT LCD Module
Industrial-grade display module from RONEN’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
10.1"1024x600TN450 cd/m²RTP
| RONEN P/N | RG-T101BAE-01PD |
|---|---|
| Display Size | 10.1 inch |
| Resolution | 1024x600 |
| LCD Type / Shape | TN |
| Luminance | 450 cd/m² |
| Module Interface | RGB 24bit 50PIN |
| LCD Driver IC | EK79001HJ3 |
| Touch Option | Resistive touch panel (RTP) |
| Bonding Type | Air Bonding |
| Active Area (mm) | 222.72x125.28 |
| Outline Dim. (mm) | 235.00x143.00x6.6 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Similar Modules in 8 – 11 inch
RG-T101BYEA-01ND
10.1"800x1280IPS
RG-T101BAE-01ND
10.1"1024x600TN
RG-T101BAH-01
10.1"1024x600TN

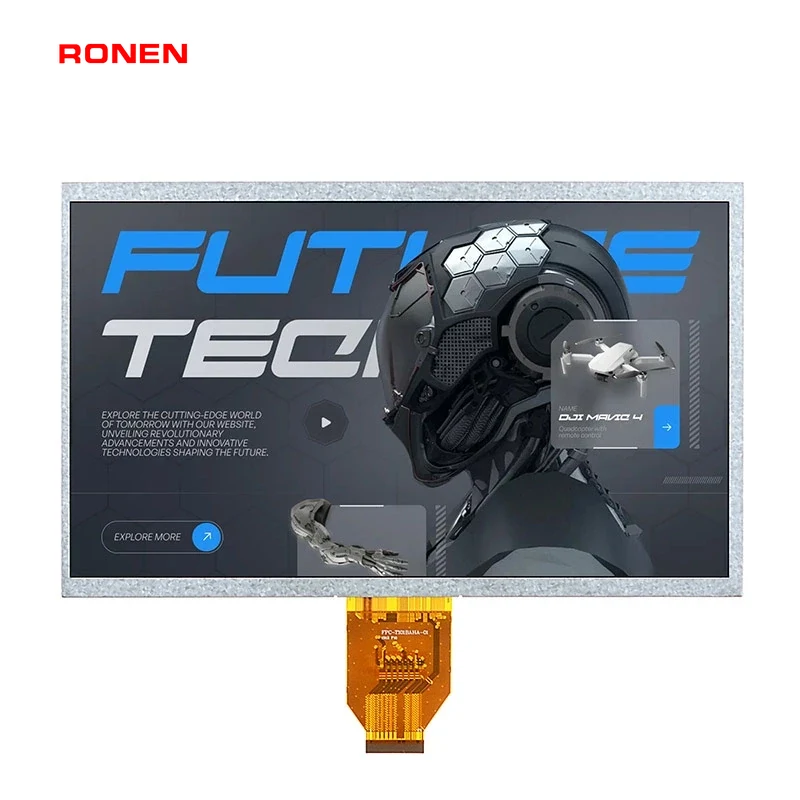

RG-T101BAHA-01
