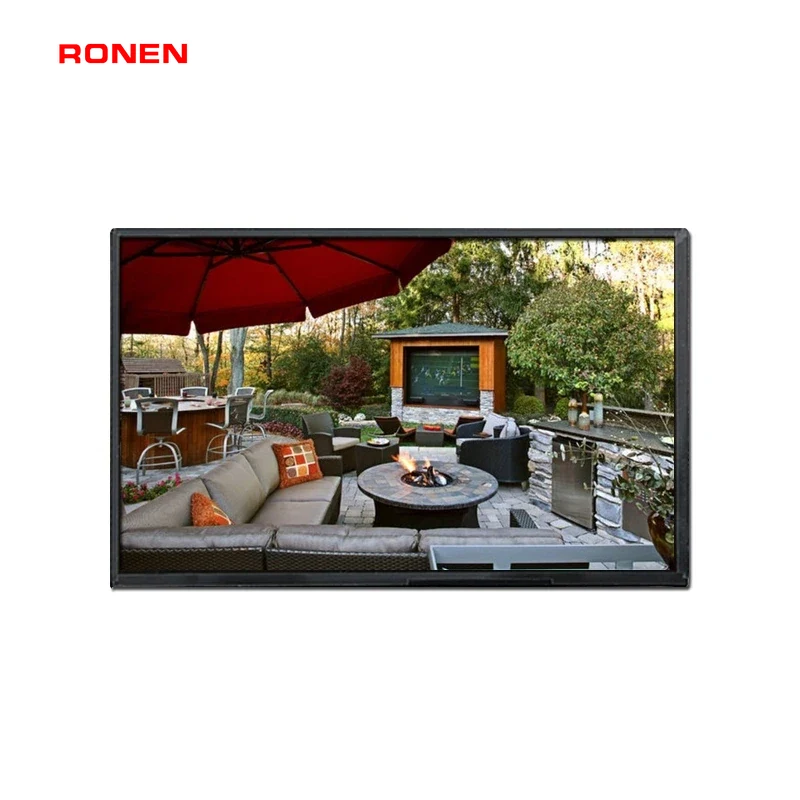

RG-T101BIHA-01 — 10.1″ 1280x800 IPS TFT LCD Module
Industrial-grade display module from RONEN’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
10.1"1280x800IPS330 cd/m²Without touch
| RONEN P/N | RG-T101BIHA-01 |
|---|---|
| Display Size | 10.1 inch |
| Resolution | 1280x800 |
| LCD Type / Shape | IPS |
| Luminance | 330 cd/m² |
| Module Interface | 8BIT LVDS 40PIN TBD. |
| Touch Option | Without touch |
| Active Area (mm) | 216.96x135.60 |
| Outline Dim. (mm) | 229.56x149.16x2.67 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Similar Modules in 8 – 11 inch

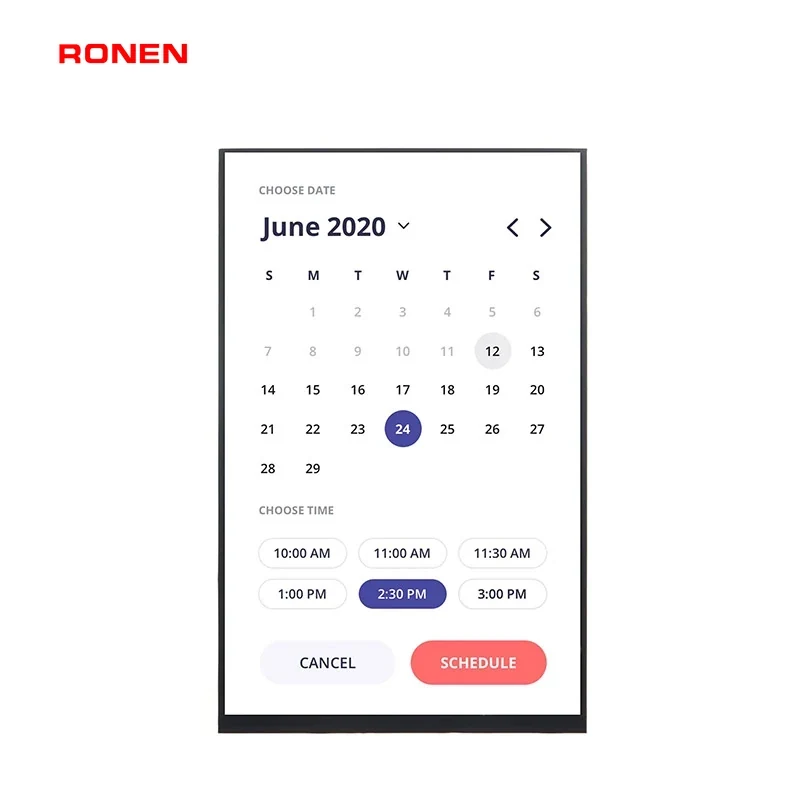

RG-T101BYEA-01ND
10.1"800x1280IPS

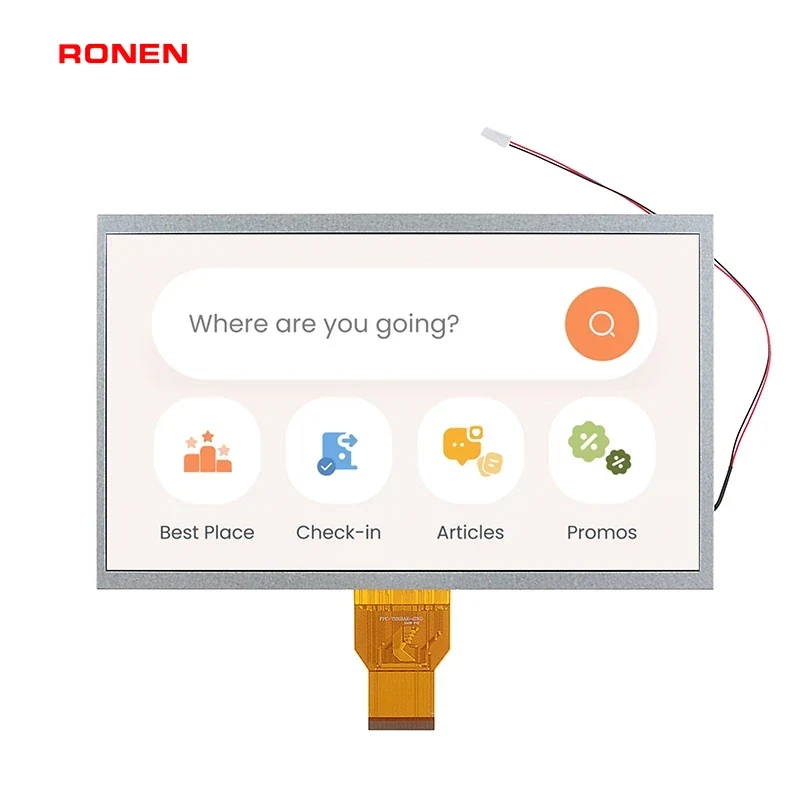

RG-T101BAE-01ND
10.1"1024x600TN
RG-T101BAE-01PD
10.1"1024x600TN

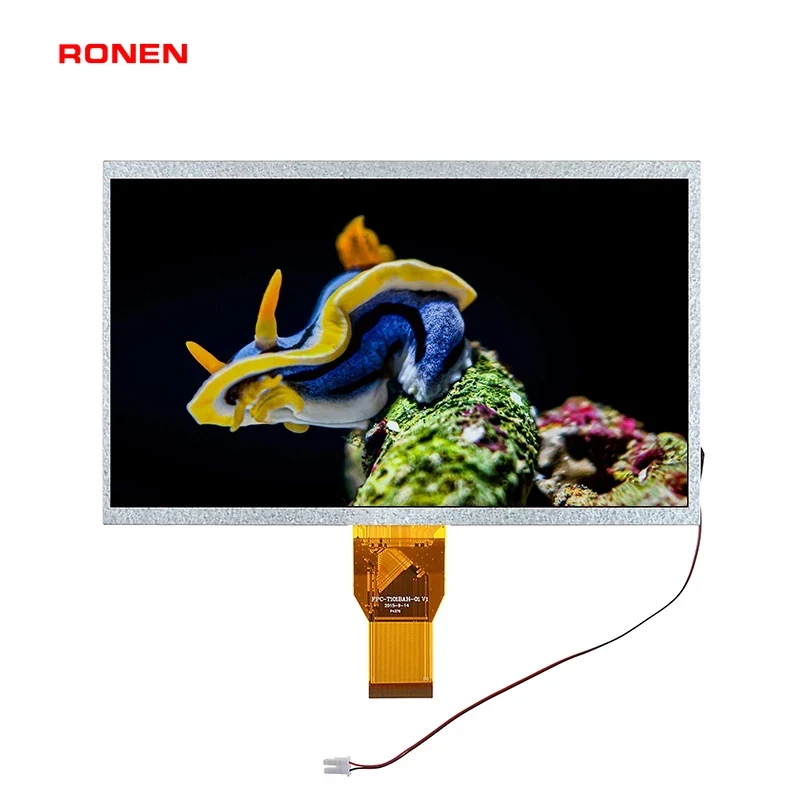

RG-T101BAH-01
