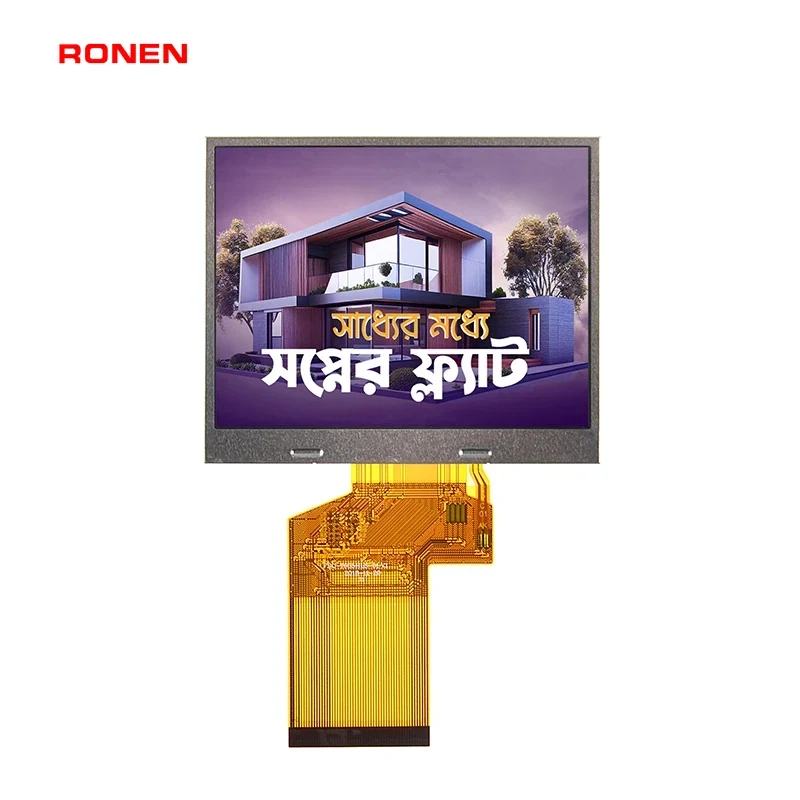

RG-T035HLS-01 — 3.5″ 320x240 IPS TFT LCD Module
Industrial-grade display module from RONEN’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
3.5"320x240IPS300 cd/m²Without touch
| RONEN P/N | RG-T035HLS-01 |
|---|---|
| Display Size | 3.5 inch |
| Resolution | 320x240 |
| LCD Type / Shape | IPS |
| Luminance | 300 cd/m² |
| Module Interface | RGB888 54PIN |
| LCD Driver IC | ST7272A |
| Touch Option | Without touch |
| Active Area (mm) | 70.08x52.56 |
| Outline Dim. (mm) | 76.80x63.90x3.05 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Similar Modules in 3 – 5 inch

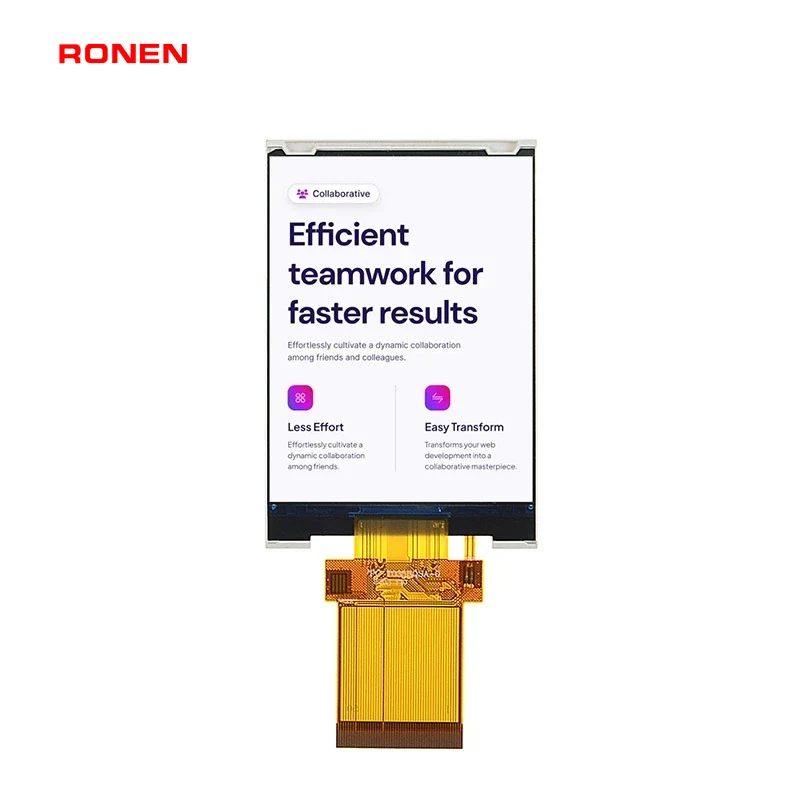

RG-T035BQSA-01
3.5"240x320IPS

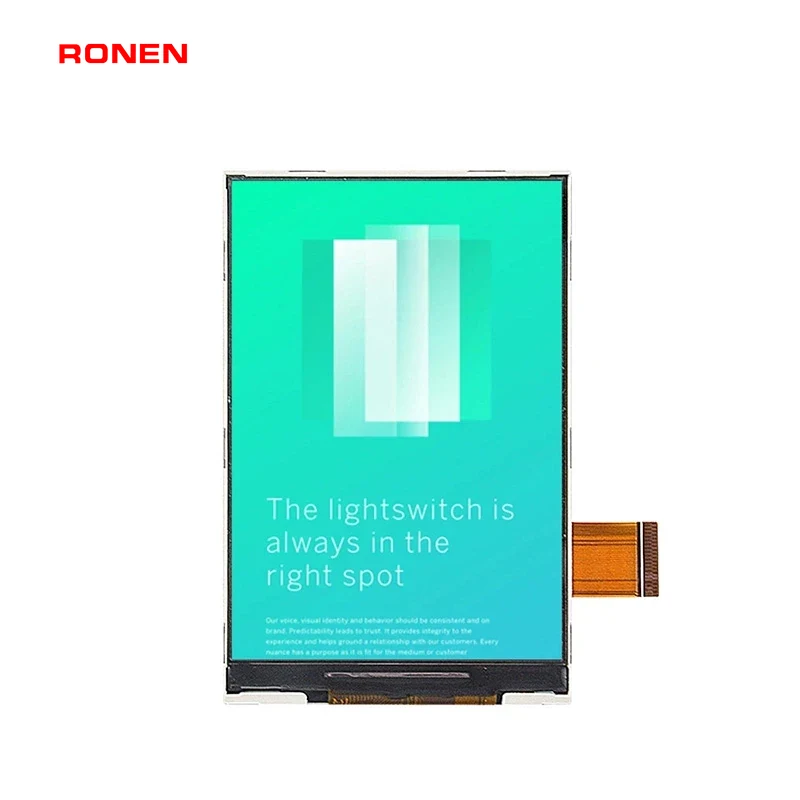

RG-T035SHI-01
3.5"320x480TN

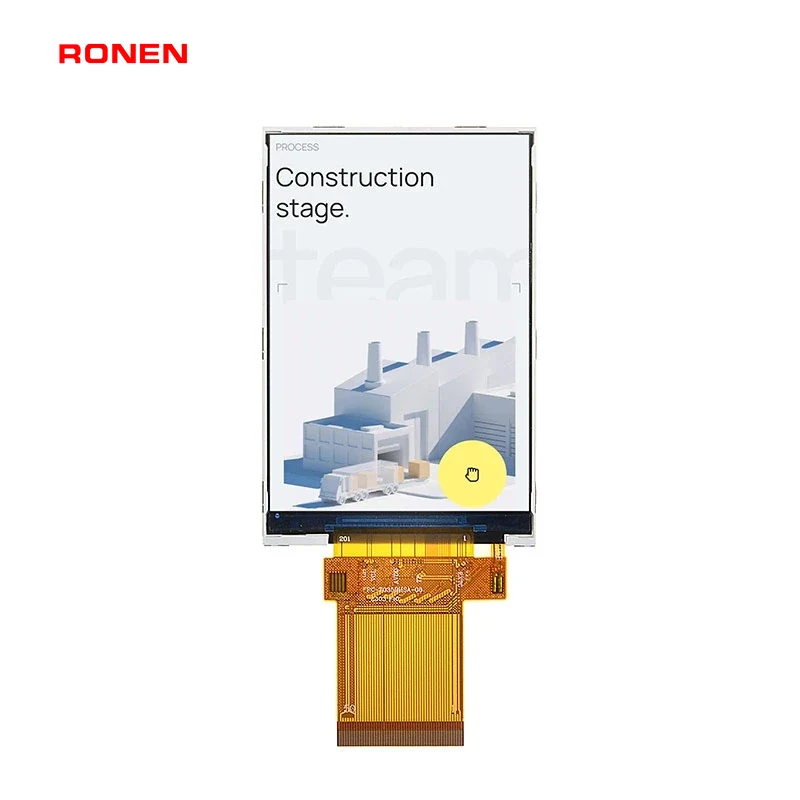

RG-T035BHSA-01
3.5"320x480IPS

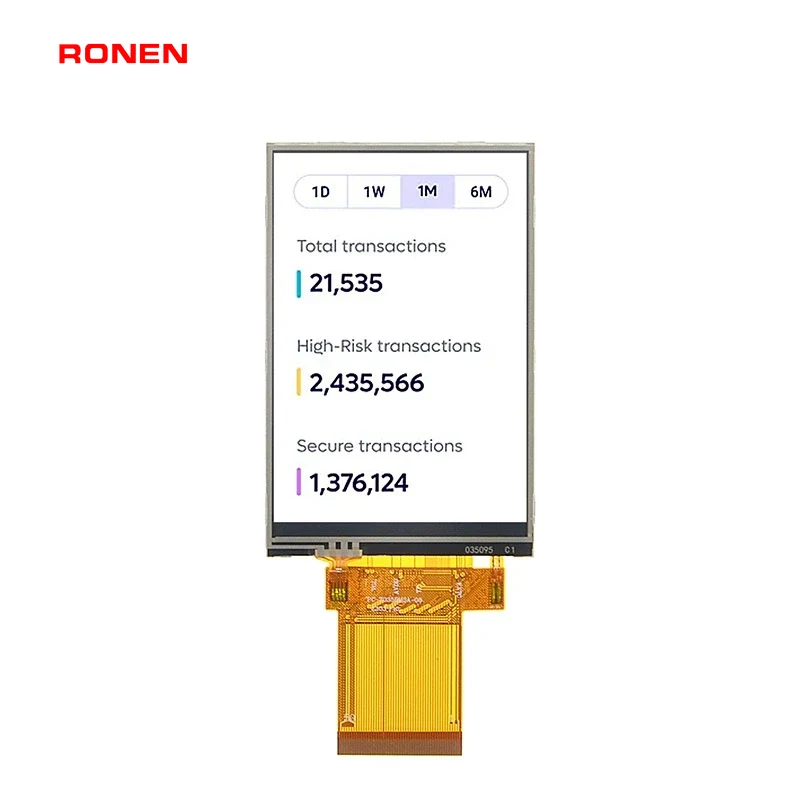

RG-T035BHSA-01P
3.5"320x480IPS
