RG-T043BPI-01ND — 4.3″ 480x272 TN TFT LCD Module
Industrial-grade display module from RONEN’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
4.3"480x272TN300 cd/m²Without touch
| RONEN P/N | RG-T043BPI-01ND |
|---|---|
| Display Size | 4.3 inch |
| Resolution | 480x272 |
| LCD Type / Shape | TN |
| Luminance | 300 cd/m² |
| Module Interface | RGB 24bit 40PIN |
| LCD Driver IC | ILI6485 |
| Touch Option | Without touch |
| Active Area (mm) | 95.04x53.86 |
| Outline Dim. (mm) | 105.50x67.15x3.05 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Similar Modules in 3 – 5 inch
RG-T043BPS-01ND
4.3"480x272TN
RG-T043BPS-04ND
4.3"480x272TN

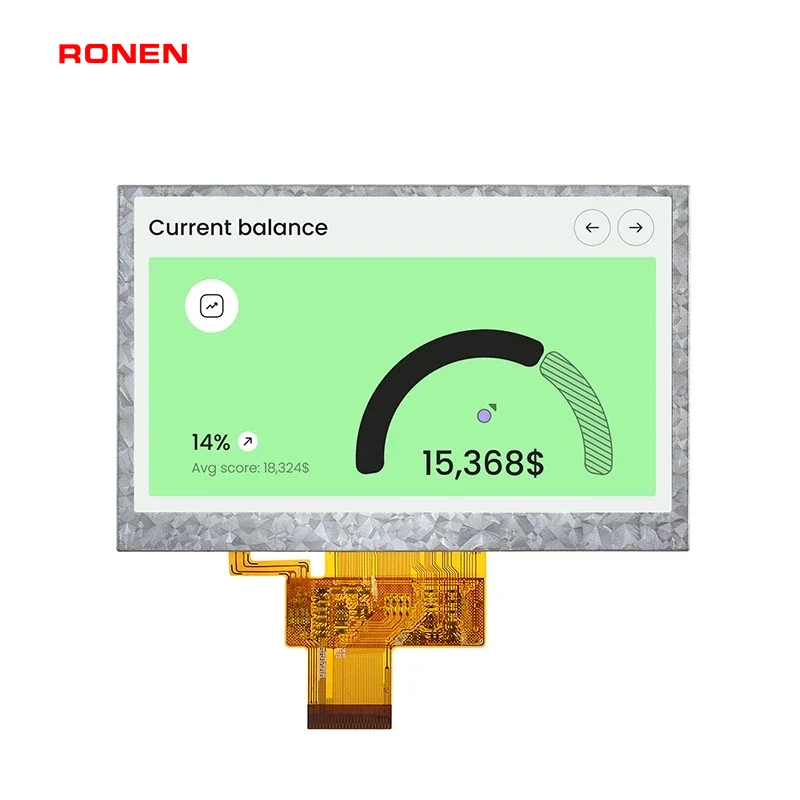

RG-T043QPH-58
