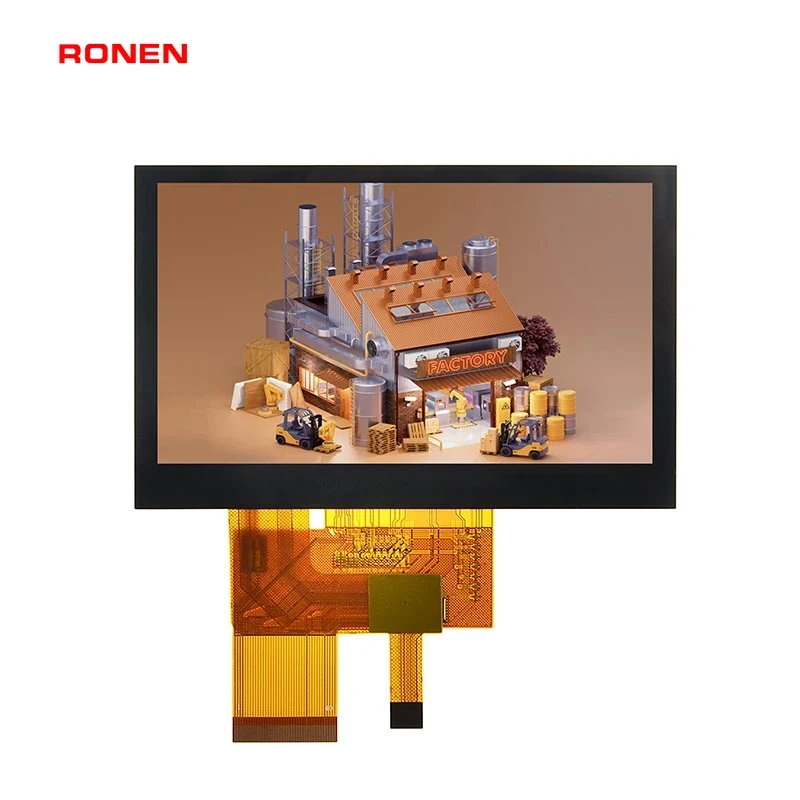

RG-T043BWSA-28CP — 4.3″ 800x480 IPS TFT LCD Module
Industrial-grade display module from RONEN’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
4.3"800x480IPS420 cd/m²CTP
| RONEN P/N | RG-T043BWSA-28CP |
|---|---|
| Display Size | 4.3 inch |
| Resolution | 800x480 |
| LCD Type / Shape | IPS |
| Luminance | 420 cd/m² |
| Module Interface | RGB 24bit 40PIN |
| LCD Driver IC | ST7265 |
| Touch Option | Capacitive touch panel (CTP) |
| CTP Driver IC | ST1633i |
| Bonding Type | Optical Bonding |
| Active Area (mm) | 95.04x53.86 |
| Outline Dim. (mm) | 105.40x67.10x4.41 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Request a quote & datasheet
Full spec sheet, pricing and lead time for this model — factory-direct, no middleman.
- Standard stock193 models ready to ship, no MOQ
- Custom optionInterface / touch / brightness / outline tailored
- Lead timeStock items: 24–48h · Custom: 5–8 weeks
- Warranty12 months against DOA, 3-year longevity commitment
Similar Modules in 3 – 5 inch

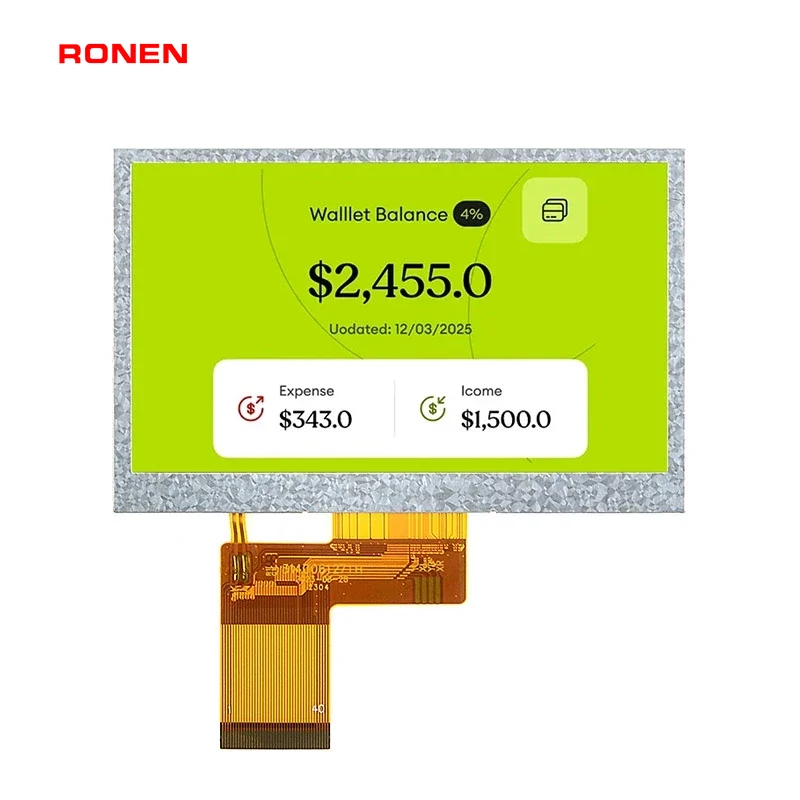

RG-T043BPI-01ND
4.3"480x272TN

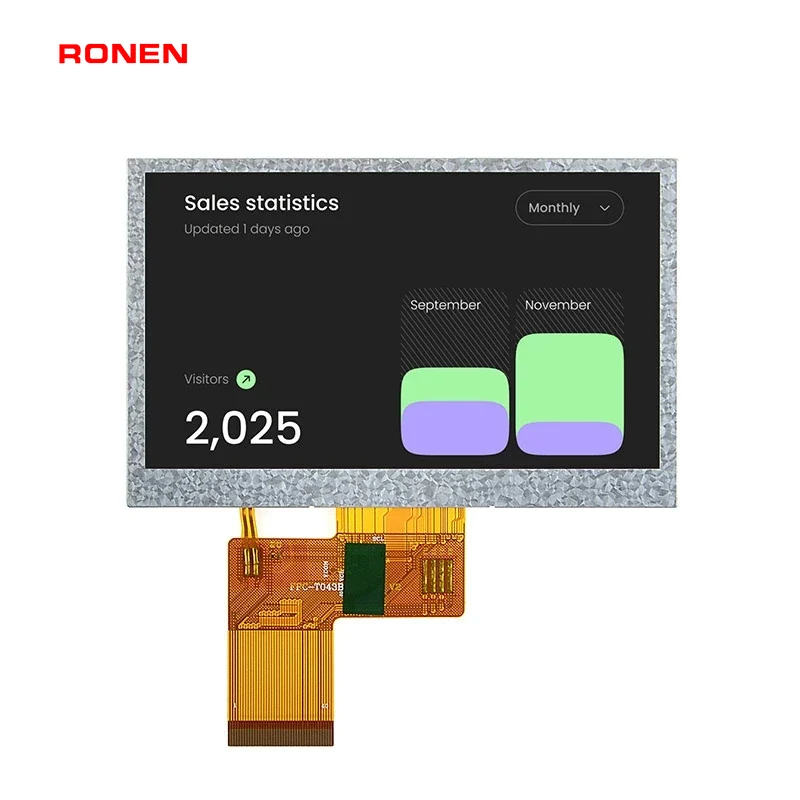

RG-T043BPS-01ND
4.3"480x272TN
RG-T043BPS-04ND
4.3"480x272TN

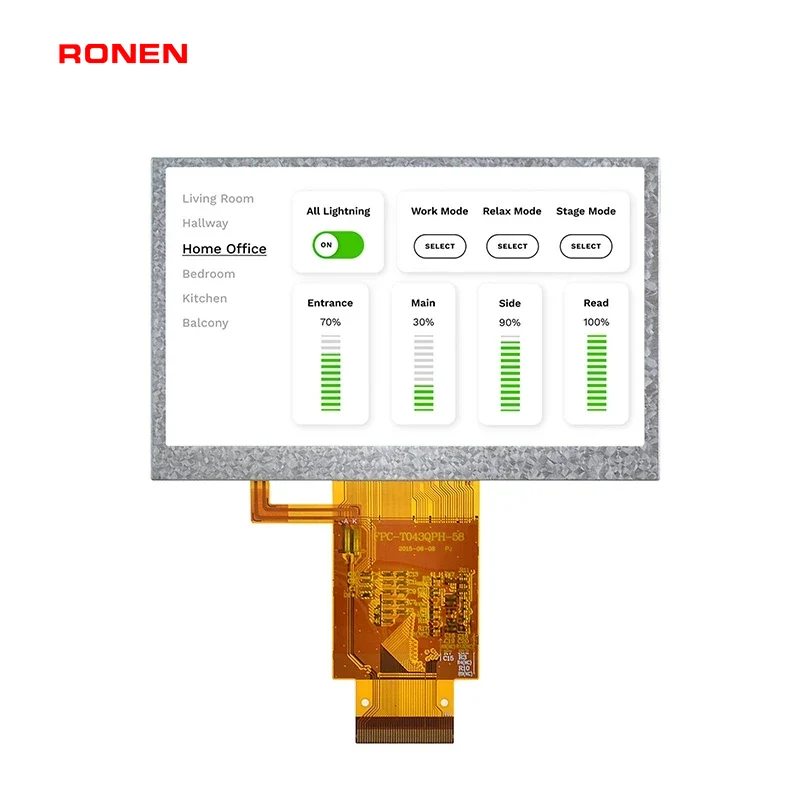

RG-T043QPH-58
4.3"480x272TN
